Heatsinks for low power


They weigh between 0 and 3 kg/m, ideal for light applications with a flexible structure and easy installation

Base
Assembled
Plug

PRO1005
Heatsinks for low power


Mechanical characteristics:

Height: 20.00 mm

Width: 15.00 mm

Weight: 0.25 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 2.725

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 8.24

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1100
Heatsinks for low power


Mechanical characteristics:

Height: 32.00 mm

Width: 28.00 mm

Weight: 0.68 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 1.549

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 4.598

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1274
Heatsinks for low power


Mechanical characteristics:

Height: 42.00 mm

Width: 32.00 mm

Weight: 1.95 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1033
Heatsinks for low power


Mechanical characteristics:

Height: 60.00 mm

Width: 34.00 mm

Weight: 2.84 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 1.14

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 3.37

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1053
Heatsinks for low power


Mechanical characteristics:

Height: 12.70 mm

Width: 34.50 mm

Weight: 0.78 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1010
Heatsinks for low power


Mechanical characteristics:

Height: 12.50 mm

Width: 34.90 mm

Weight: 0.42 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1252
Heatsinks for low power


Mechanical characteristics:

Height: 20.00 mm

Width: 38.00 mm

Weight: 0.69 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1017
Heatsinks for low power


Mechanical characteristics:

Height: 20.00 mm

Width: 38.00 mm

Weight: 0.71 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 1.85

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 5.6

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1251
Heatsinks for low power


Mechanical characteristics:

Height: 35.00 mm

Width: 40.00 mm

Weight: 1.52 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 1.14

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 3.36

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1012
Heatsinks for low power


Mechanical characteristics:

Height: 25.40 mm

Width: 42.00 mm

Weight: 1.01 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1261
Heatsinks for low power


Mechanical characteristics:

Height: 25.00 mm

Width: 42.00 mm

Weight: 0.93 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1039
Heatsinks for low power


Mechanical characteristics:

Height: 12.60 mm

Width: 45.00 mm

Weight: 0.56 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1018
Heatsinks for low power


Mechanical characteristics:

Height: 14.00 mm

Width: 45.00 mm

Weight: 0.56 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1038
Heatsinks for low power


Mechanical characteristics:

Height: 19.00 mm

Width: 47.50 mm

Weight: 1.07 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1250
Heatsinks for low power


Mechanical characteristics:

Height: 40.00 mm

Width: 48.00 mm

Weight: 2.44 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1050
Heatsinks for low power


Mechanical characteristics:

Height: 20.00 mm

Width: 50.00 mm

Weight: 1.08 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1083
Heatsinks for low power


Mechanical characteristics:

Height: 15.00 mm

Width: 100.00 mm

Weight: 2.16 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.58

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 1.77

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1082
Heatsinks for low power


Mechanical characteristics:

Height: 15.00 mm

Width: 100.00 mm

Weight: 2.02 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.59

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 1.77

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1003
Heatsinks for low power


Mechanical characteristics:

Height: 12.00 mm

Width: 50.00 mm

Weight: 0.56 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1002
Heatsinks for low power


Mechanical characteristics:

Height: 11.80 mm

Width: 50.00 mm

Weight: 0.54 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1007
Heatsinks for low power


Mechanical characteristics:

Height: 71.00 mm

Width: 51.00 mm

Weight: 1.82 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

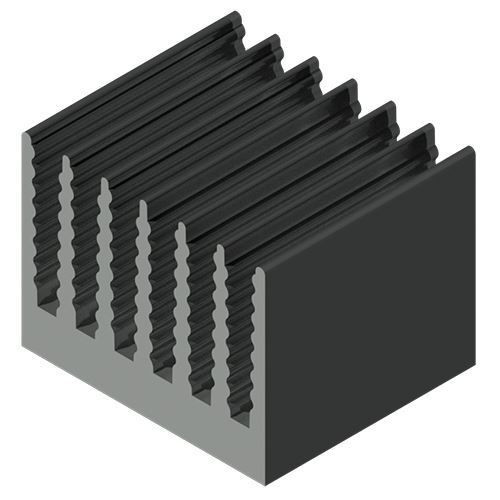

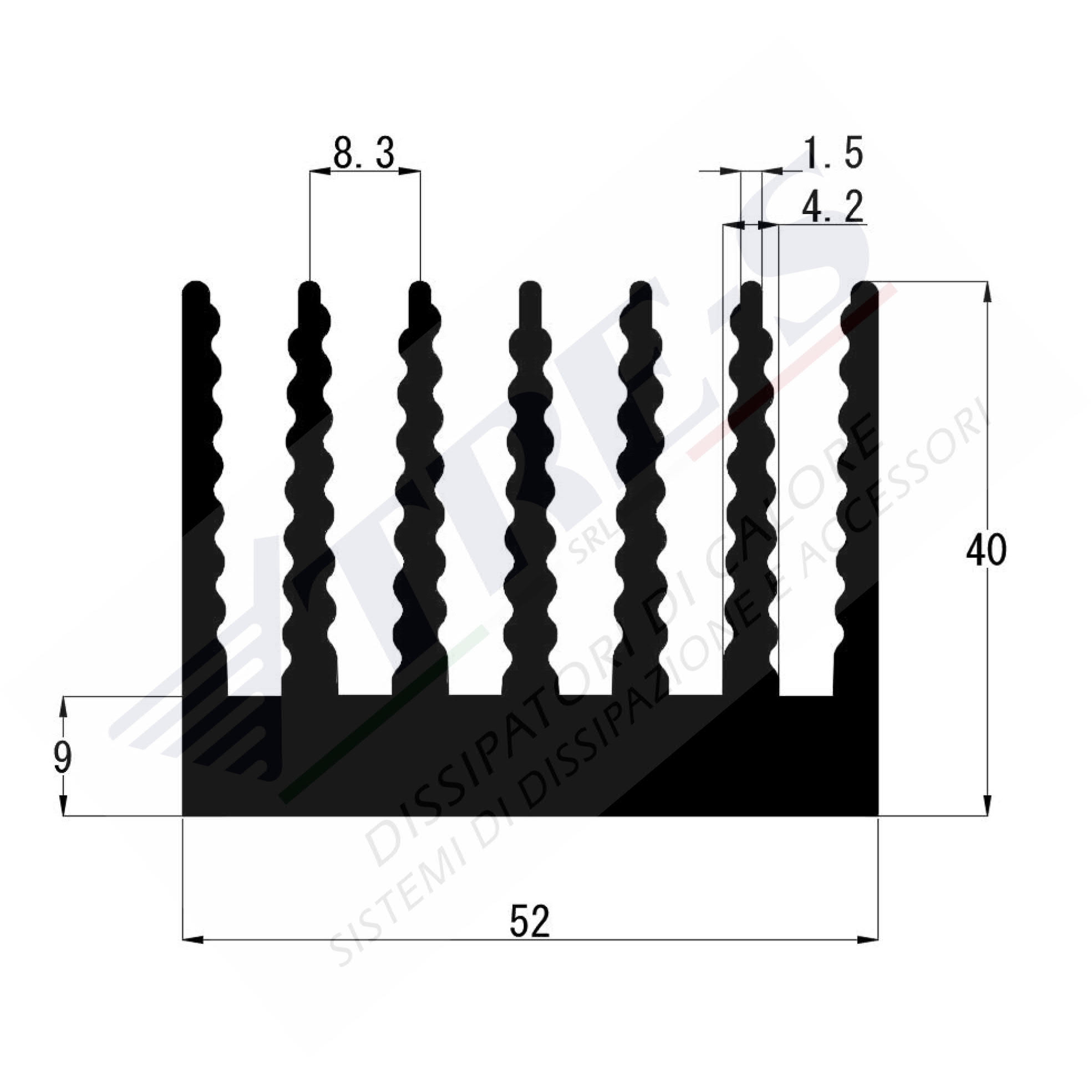

PRO1271
Heatsinks for low power


Mechanical characteristics:

Height: 40.00 mm

Width: 52.00 mm

Weight: 2.60 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 1.01

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 2.98

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1019
Heatsinks for low power


Mechanical characteristics:

Height: 20.00 mm

Width: 52.00 mm

Weight: 0.80 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 1.47

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 4.39

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1013
Heatsinks for low power


Mechanical characteristics:

Height: 23.00 mm

Width: 54.00 mm

Weight: 1.25 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1024
Heatsinks for low power


Mechanical characteristics:

Height: 38.00 mm

Width: 54.00 mm

Weight: 2.20 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.89

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 2.68

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1073
Heatsinks for low power


Mechanical characteristics:

Height: 30.50 mm

Width: 55.00 mm

Weight: 1.71 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 73.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 73.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1028
Heatsinks for low power


Mechanical characteristics:

Height: 24.00 mm

Width: 61.00 mm

Weight: 2.23 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 75.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 75.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1047
Heatsinks for low power


Mechanical characteristics:

Height: 32.00 mm

Width: 61.50 mm

Weight: 2.37 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1048
Heatsinks for low power


Mechanical characteristics:

Height: 26.80 mm

Width: 65.00 mm

Weight: 1.25 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1049
Heatsinks for low power


Mechanical characteristics:

Height: 28.50 mm

Width: 65.00 mm

Weight: 1.23 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1015
Heatsinks for low power


Mechanical characteristics:

Height: 19.50 mm

Width: 65.00 mm

Weight: 1.24 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 1.27

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 3.75

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1004
Heatsinks for low power


Mechanical characteristics:

Height: 15.00 mm

Width: 70.00 mm

Weight: 0.68 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt:

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1022
Heatsinks for low power


Mechanical characteristics:

Height: 26.00 mm

Width: 80.00 mm

Weight: 1.79 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1051
Heatsinks for low power


Mechanical characteristics:

Height: 14.00 mm

Width: 80.00 mm

Weight: 1.17 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1023
Heatsinks for low power


Mechanical characteristics:

Height: 48.00 mm

Width: 80.00 mm

Weight: 2.80 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1032
Heatsinks for low power


Mechanical characteristics:

Height: 32.00 mm

Width: 82.00 mm

Weight: 2.87 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.516

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 1.52

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

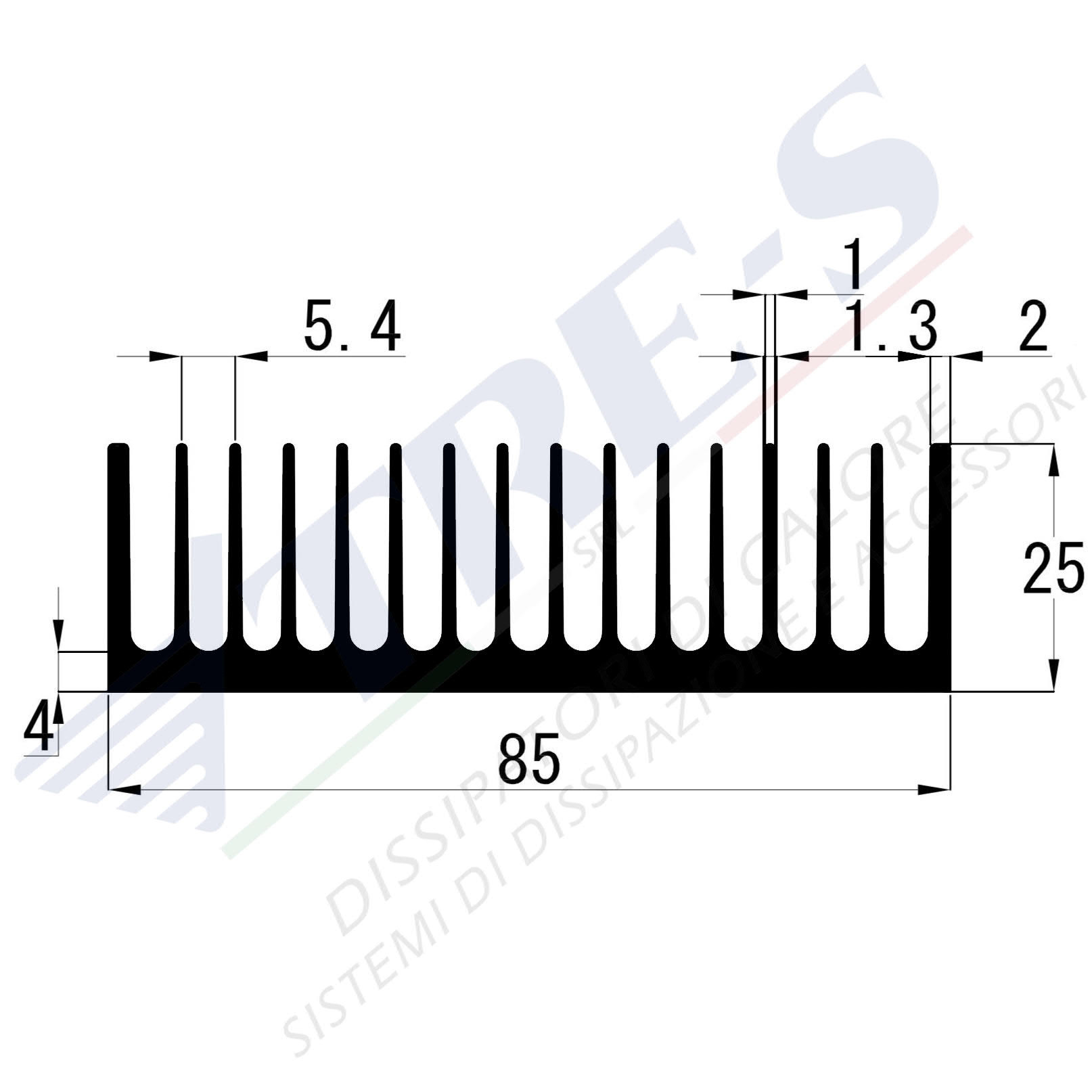

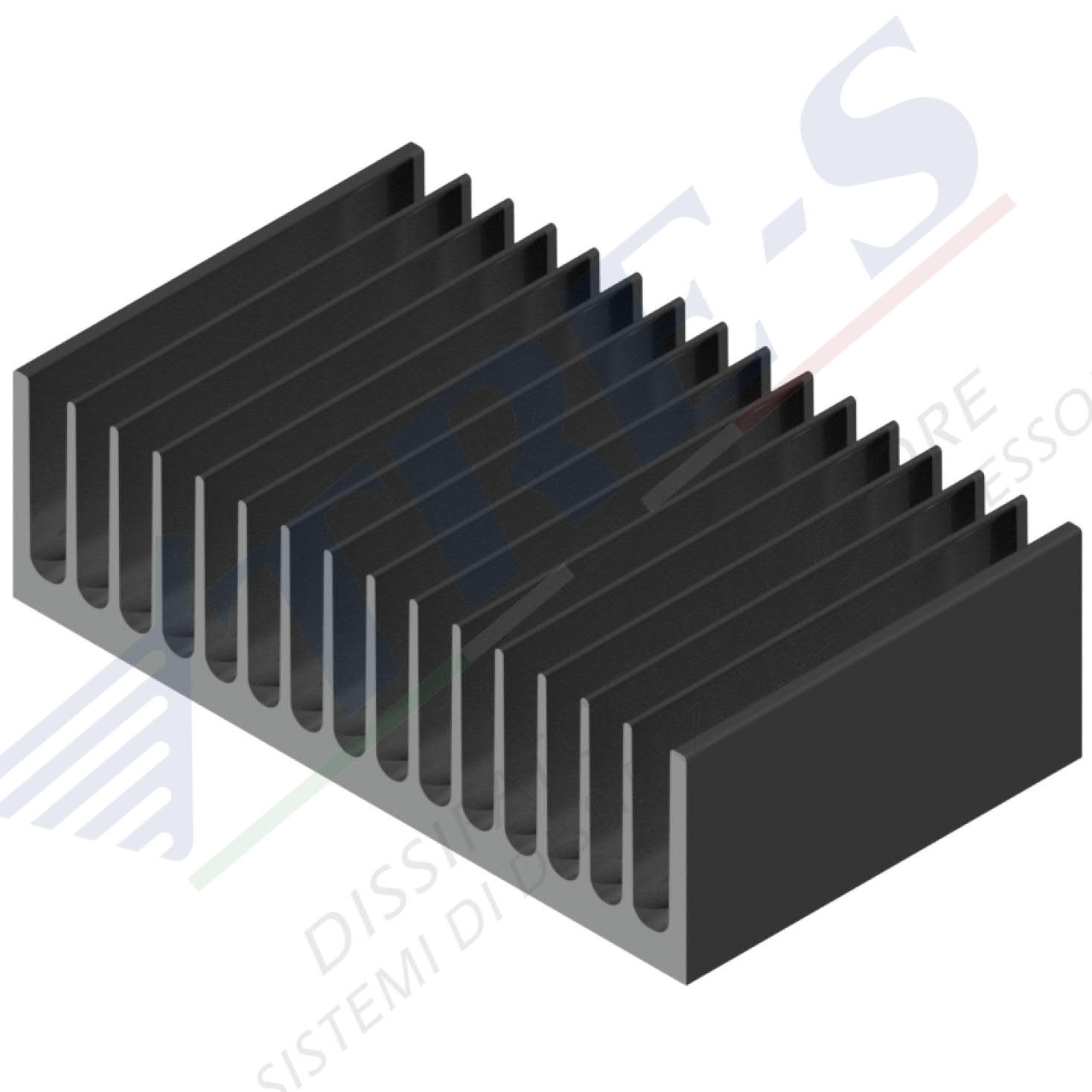

PRO1324
Heatsinks for low power


Mechanical characteristics:

Height: 25.00 mm

Width: 85.00 mm

Weight: 2.52 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt:

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1016
Heatsinks for low power


Mechanical characteristics:

Height: 25.00 mm

Width: 88.00 mm

Weight: 2.83 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1025
Heatsinks for low power


Mechanical characteristics:

Height: 35.00 mm

Width: 88.00 mm

Weight: 2.77 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1334
Heatsinks for low power


Mechanical characteristics:

Height: 13.50 mm

Width: 90.50 mm

Weight: 1.38 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt:

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1096
Heatsinks for low power


Mechanical characteristics:

Height: 35.00 mm

Width: 93.00 mm

Weight: 1.80 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1092
Heatsinks for low power


Mechanical characteristics:

Height: 14.60 mm

Width: 94.00 mm

Weight: 1.61 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1093
Heatsinks for low power


Mechanical characteristics:

Height: 25.00 mm

Width: 97.00 mm

Weight: 1.49 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

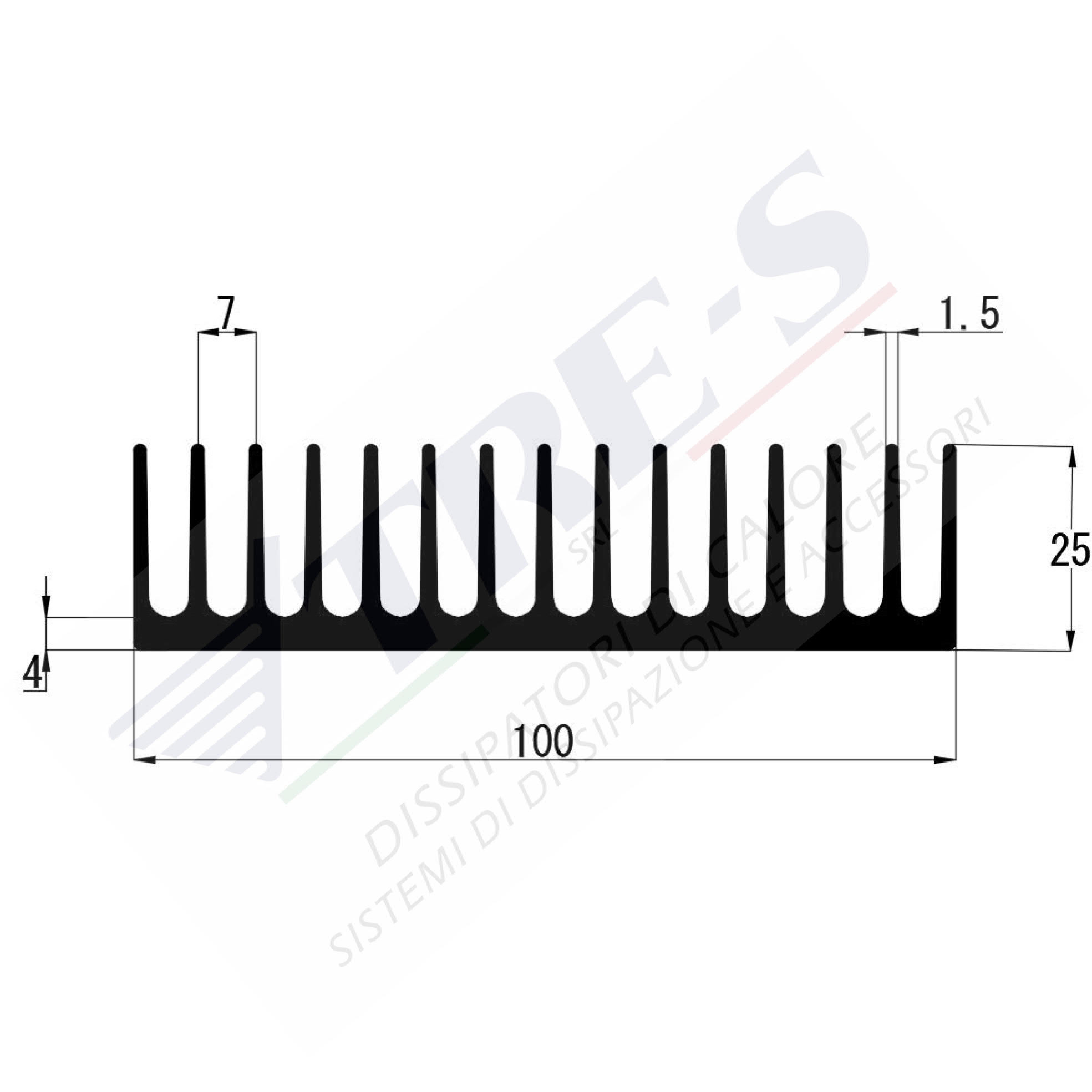

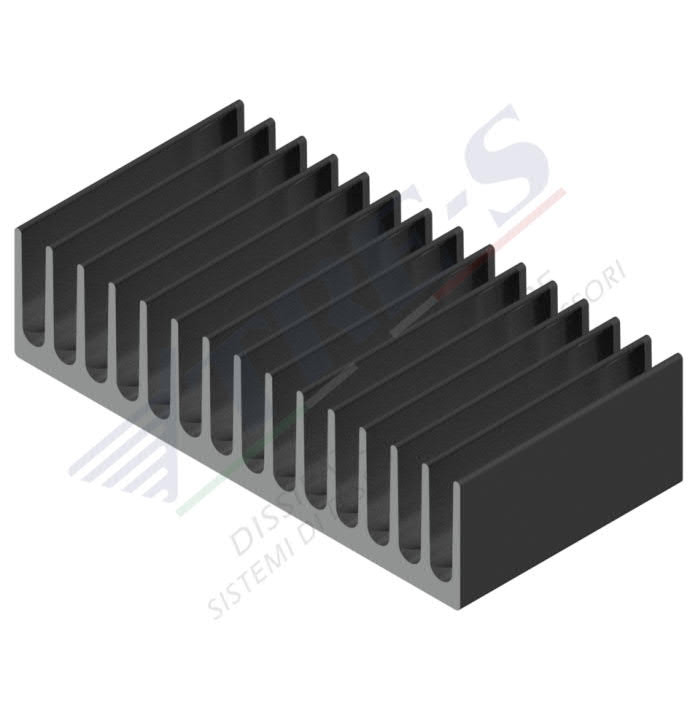

PRO1084
Heatsinks for low power


Mechanical characteristics:

Height: 25.00 mm

Width: 100.00 mm

Weight: 2.68 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.48

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 1.40

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1098
Heatsinks for low power


Mechanical characteristics:

Height: 38.00 mm

Width: 105.00 mm

Weight: 2.72 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.41

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 1.31

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1094
Heatsinks for low power


Mechanical characteristics:

Height: 21.00 mm

Width: 120.00 mm

Weight: 1.73 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1285
Heatsinks for low power


Mechanical characteristics:

Height: 28.00 mm

Width: 133.40 mm

Weight: 1.24 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1171
Heatsinks for low power


Mechanical characteristics:

Height: 19.20 mm

Width: 134.00 mm

Weight: 2.22 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1054
Heatsinks for low power


Mechanical characteristics:

Height: 16.00 mm

Width: 142.00 mm

Weight: 2.19 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1109
Heatsinks for low power


Mechanical characteristics:

Height: 34.00 mm

Width: 142.00 mm

Weight: 2.34 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1279
Heatsinks for low power


Mechanical characteristics:

Height: 15.00 mm

Width: 150.00 mm

Weight: 2.94 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1282
Heatsinks for low power


Mechanical characteristics:

Height: 9.00 mm

Width: 200.00 mm

Weight: 2.81 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Questo sito web utilizza i cookies per migliorare l'esperienza dell'utente. L'utente è consapevole del fatto che, se naviga sul nostro sito web, implicitamente accetta l'utilizzo dei cookies.
