Low and medium power profiles


Heat sinks for low and medium power characterised by fins of various structures and sizes with a flat area on which to rest the components.

Base
Assembled
Plug

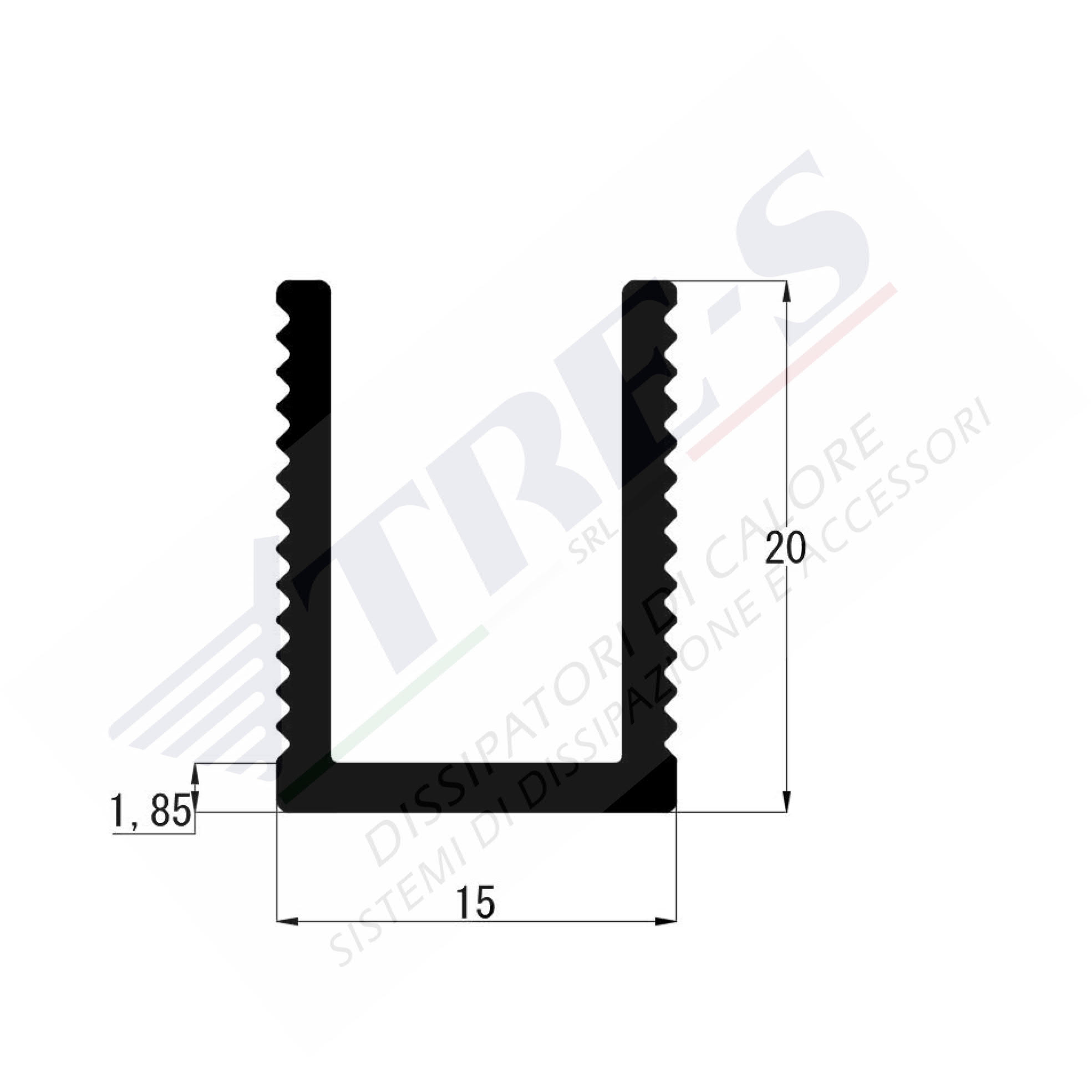

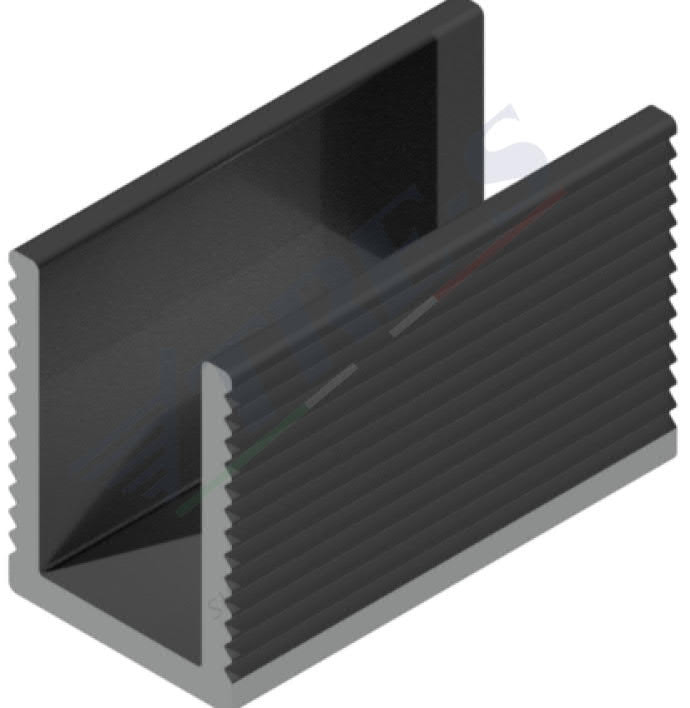

PRO1005
Profili per bassa e media potenza


Mechanical characteristics:

Height: 20.00 mm

Width: 15.00 mm

Weight: 0.25 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 2.725

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 8.24

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

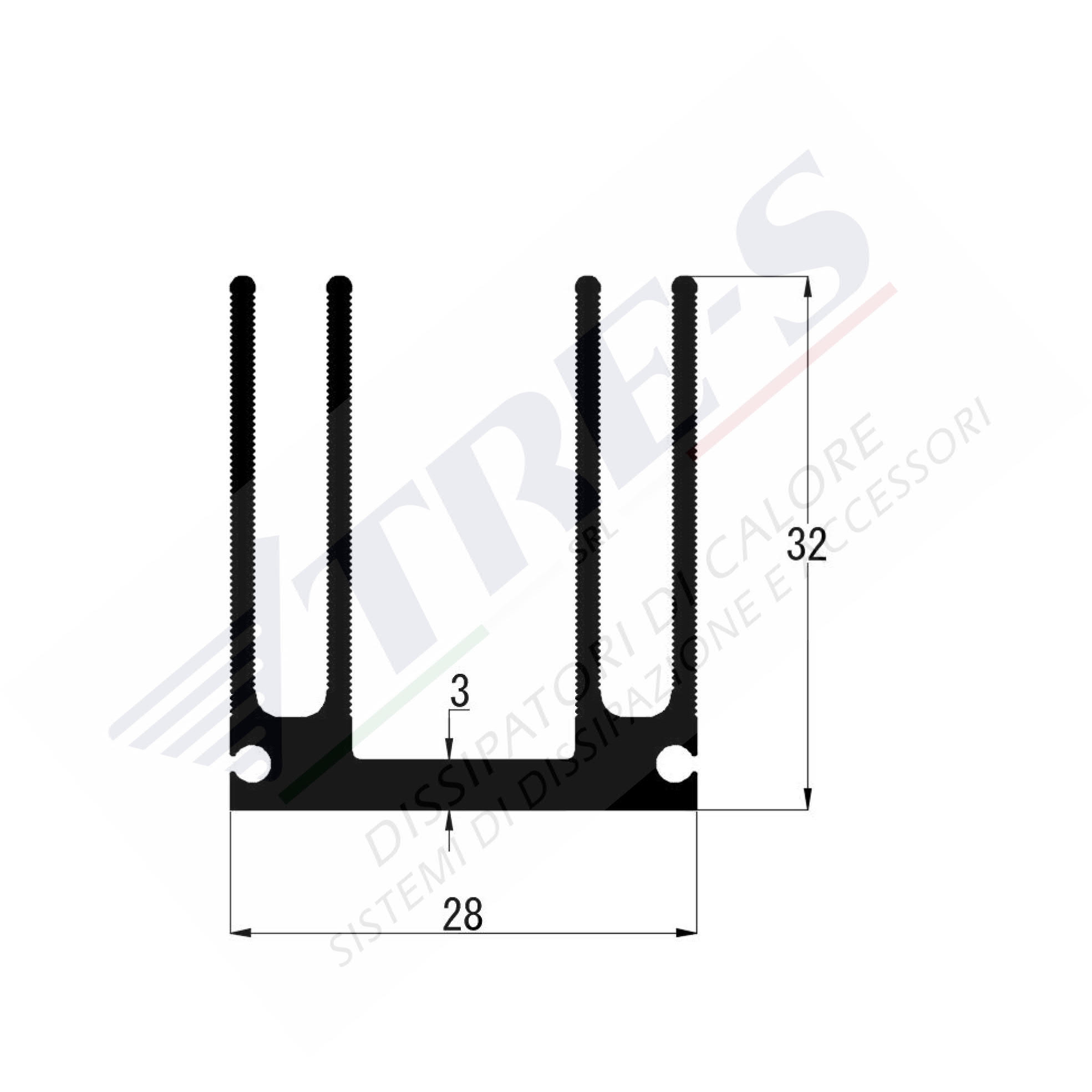

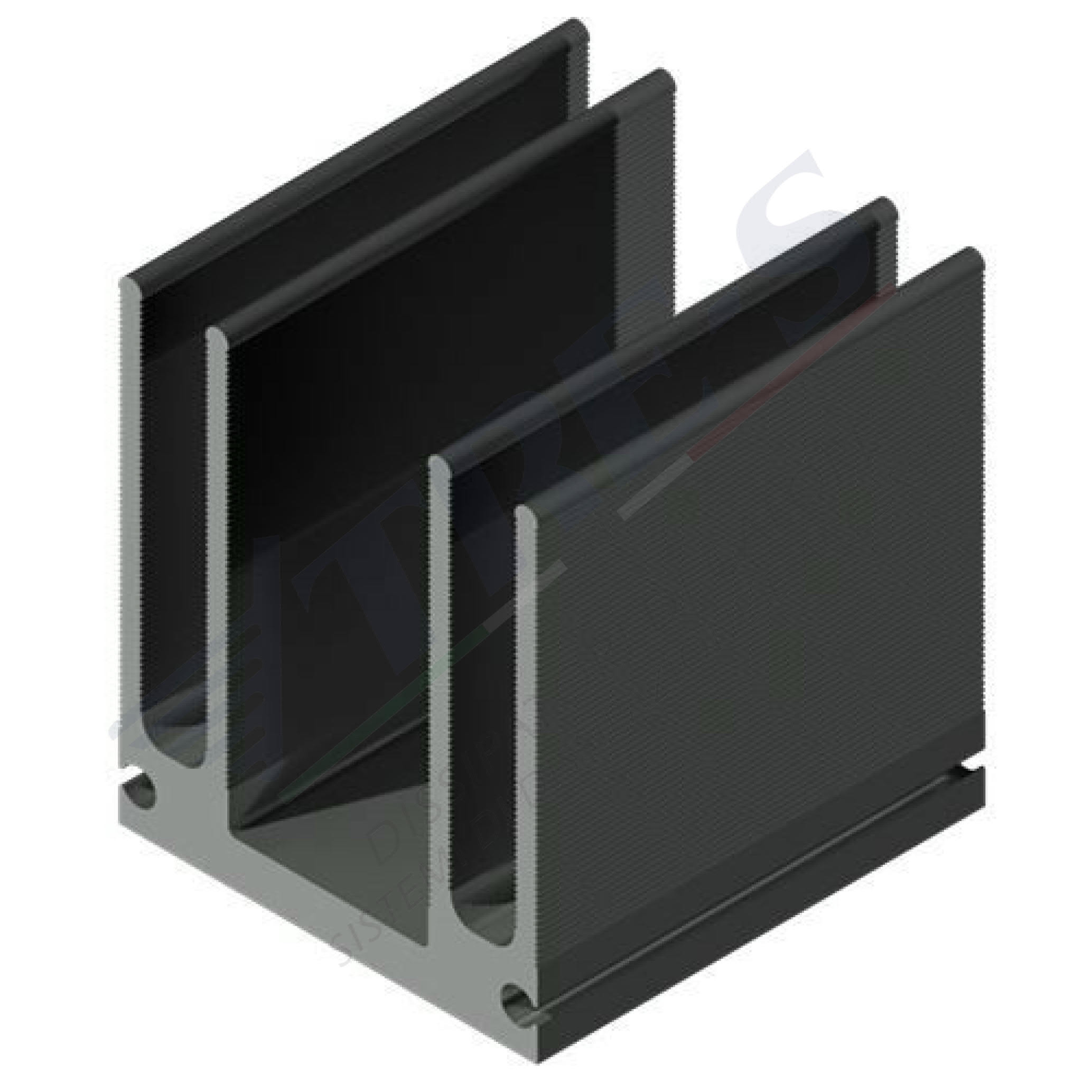

PRO1100
Profili per bassa e media potenza


Mechanical characteristics:

Height: 32.00 mm

Width: 28.00 mm

Weight: 0.68 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 1.549

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 4.598

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

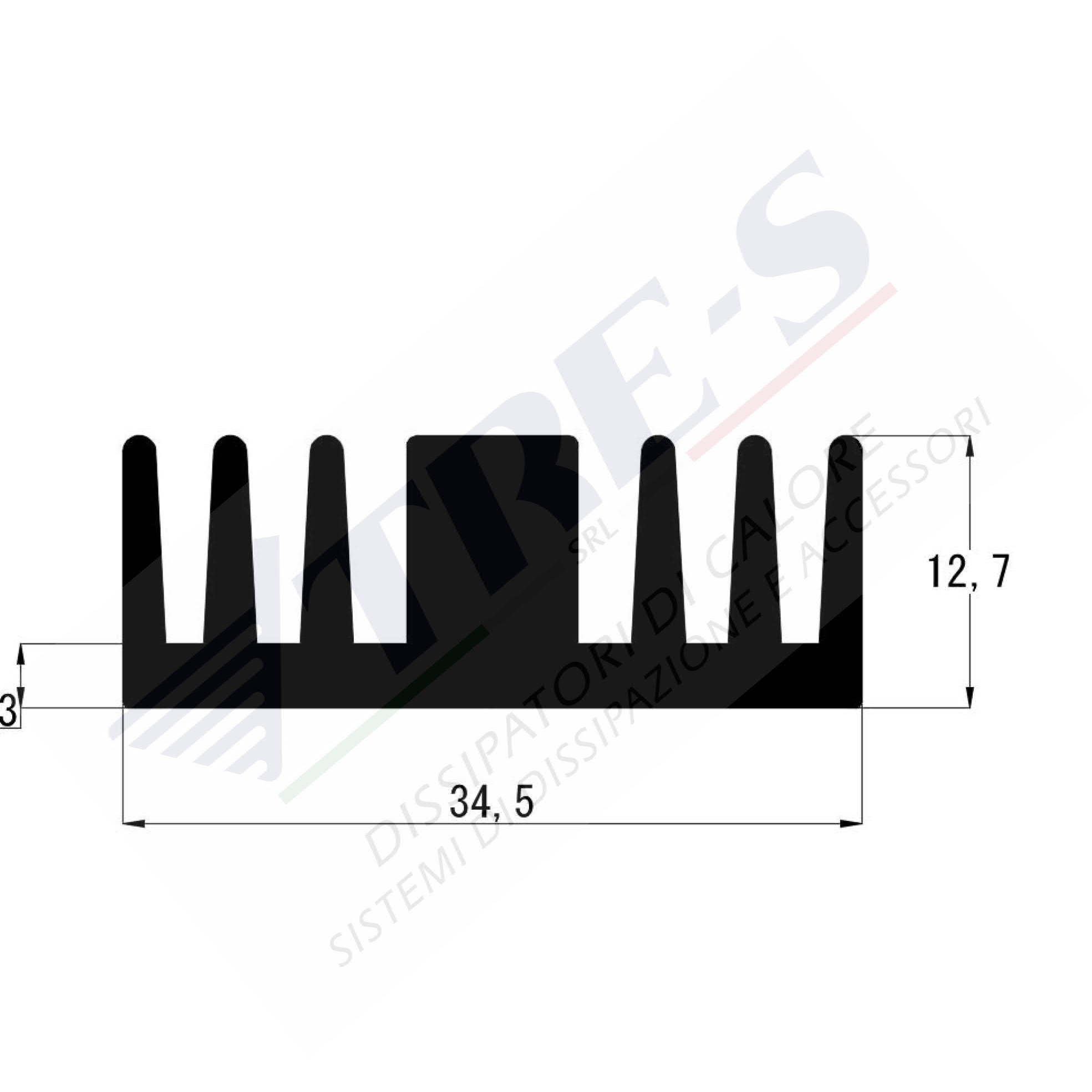

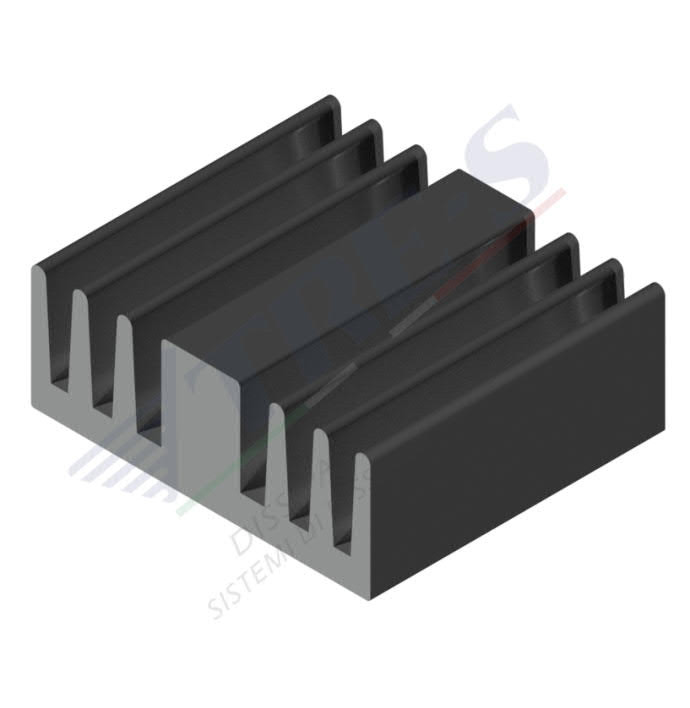

PRO1053
Profili per bassa e media potenza


Mechanical characteristics:

Height: 12.70 mm

Width: 34.50 mm

Weight: 0.78 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1010
Profili per bassa e media potenza


Mechanical characteristics:

Height: 12.50 mm

Width: 34.90 mm

Weight: 0.42 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

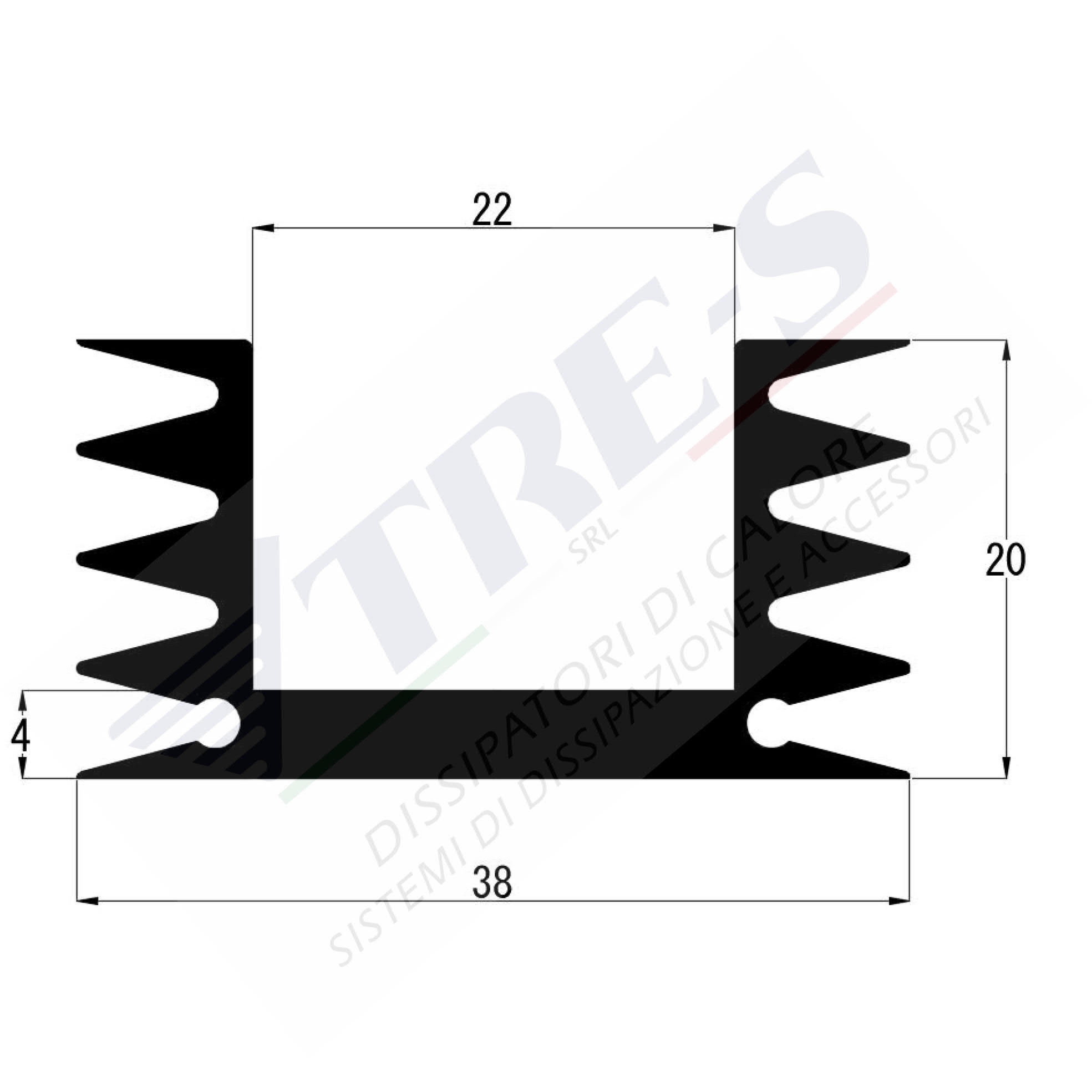

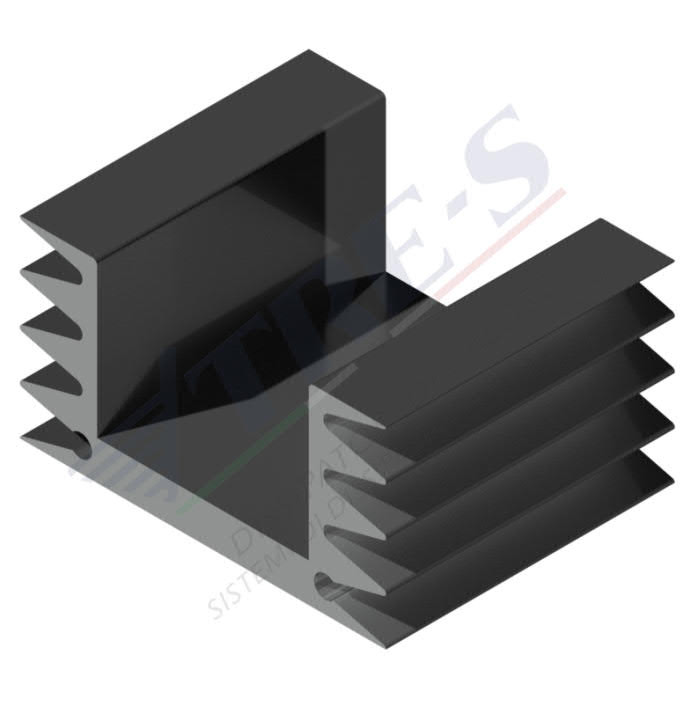

PRO1252
Profili per bassa e media potenza


Mechanical characteristics:

Height: 20.00 mm

Width: 38.00 mm

Weight: 0.69 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

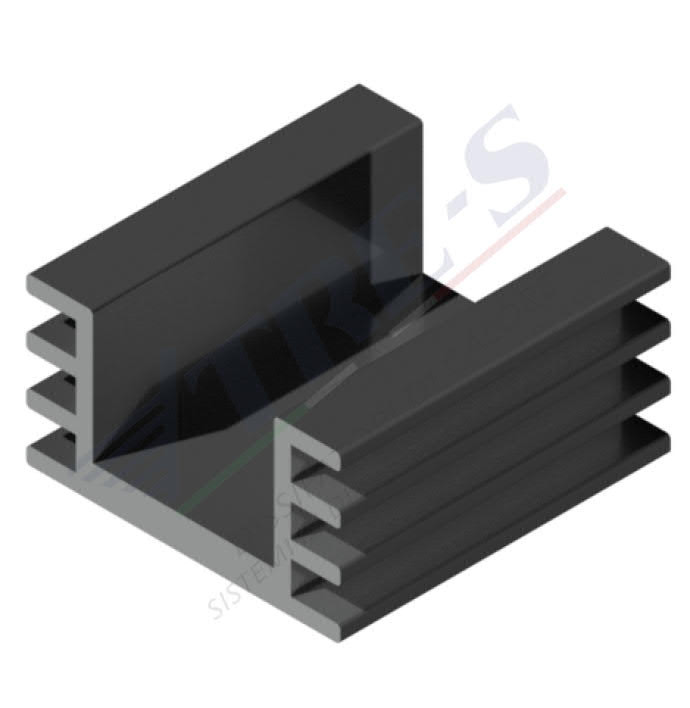

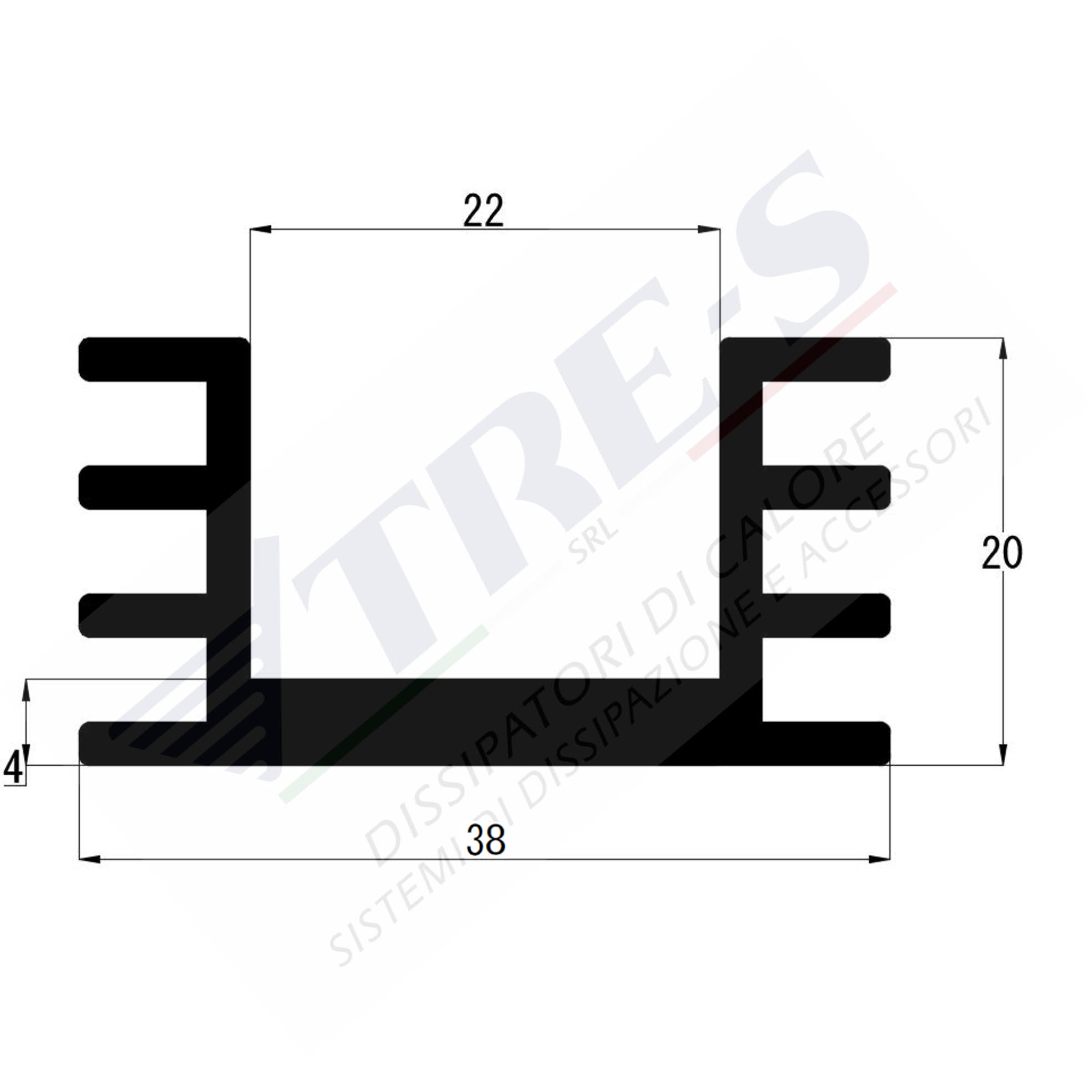

PRO1017
Profili per bassa e media potenza


Mechanical characteristics:

Height: 20.00 mm

Width: 38.00 mm

Weight: 0.71 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 1.85

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 5.6

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

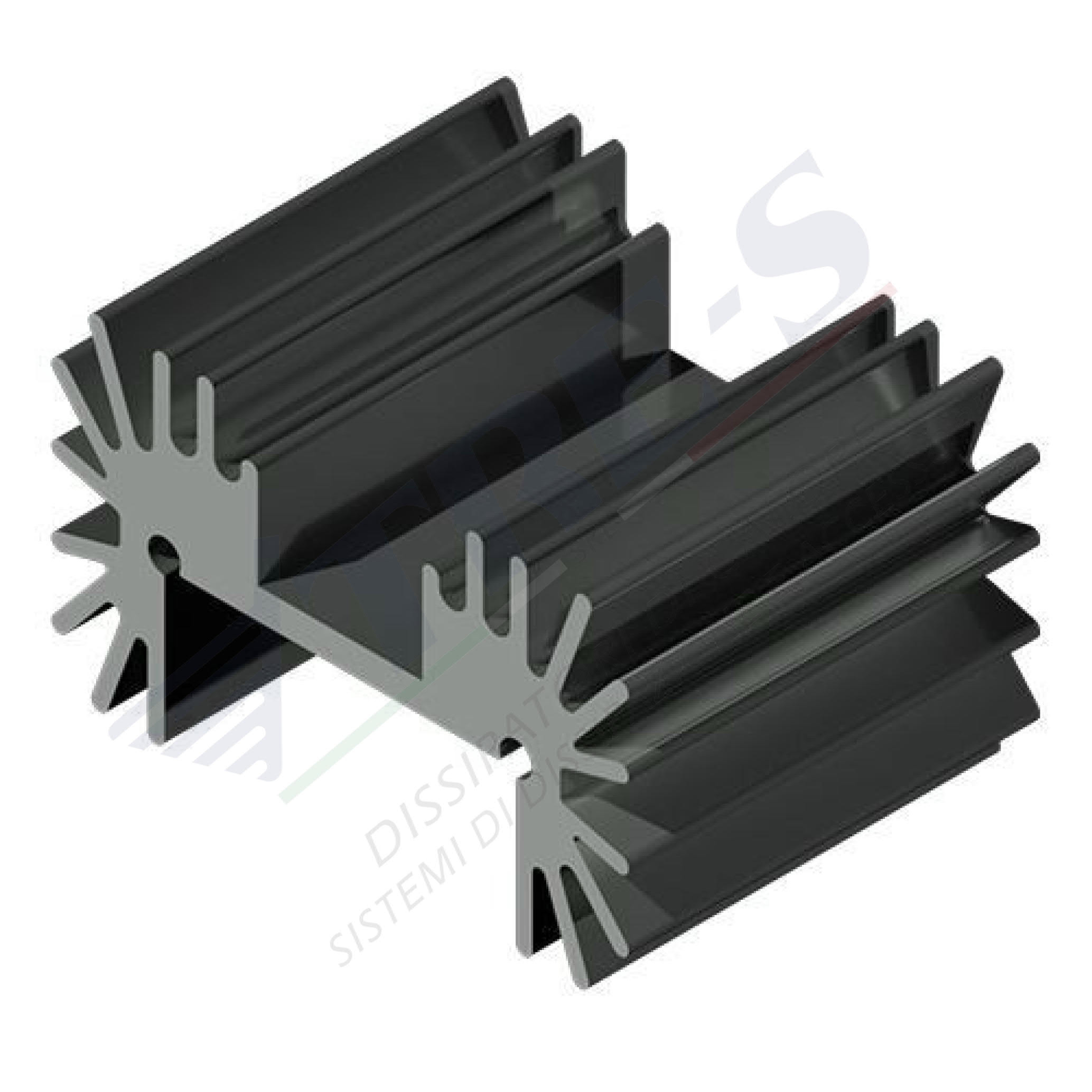

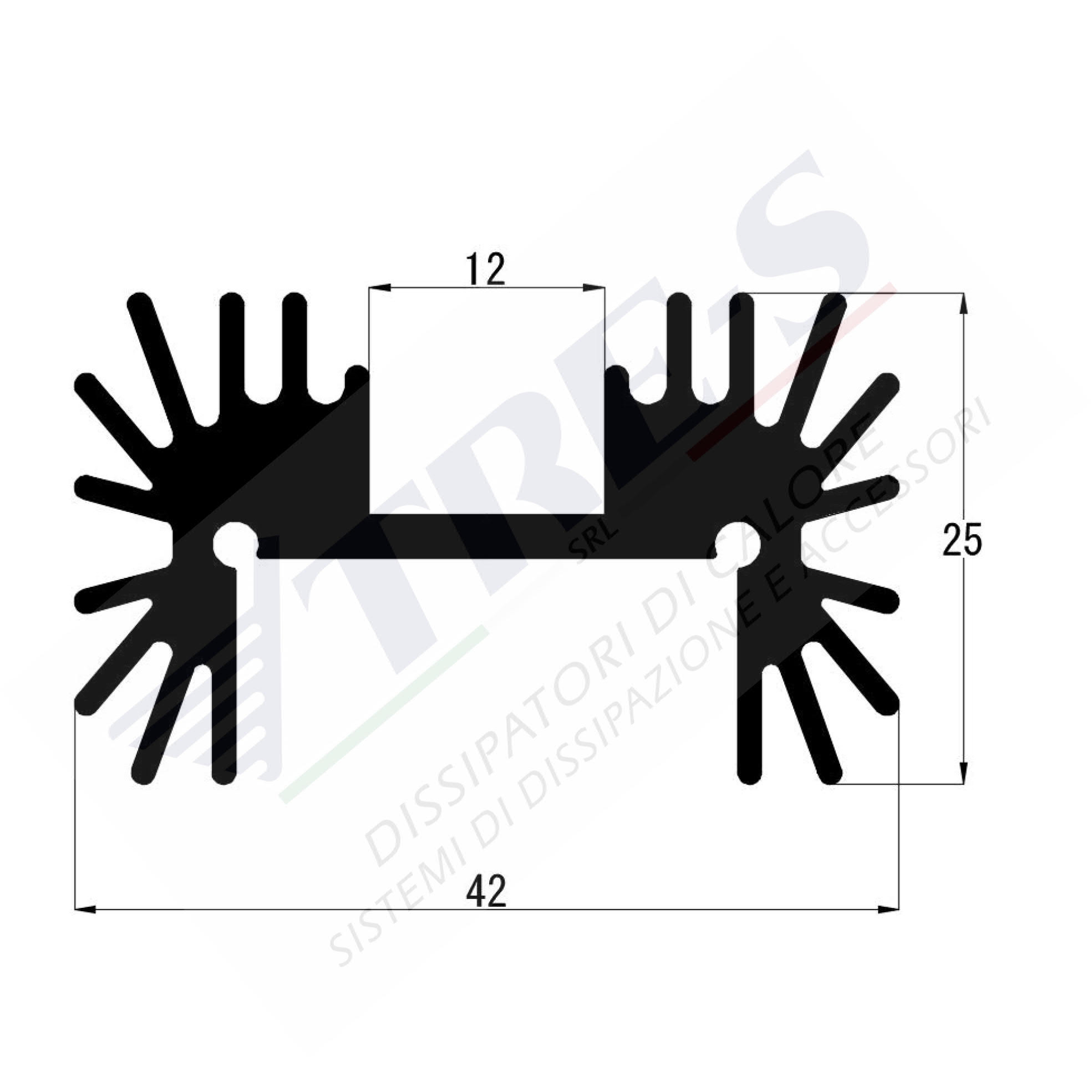

PRO1261
Profili per bassa e media potenza


Mechanical characteristics:

Height: 25.00 mm

Width: 42.00 mm

Weight: 0.93 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

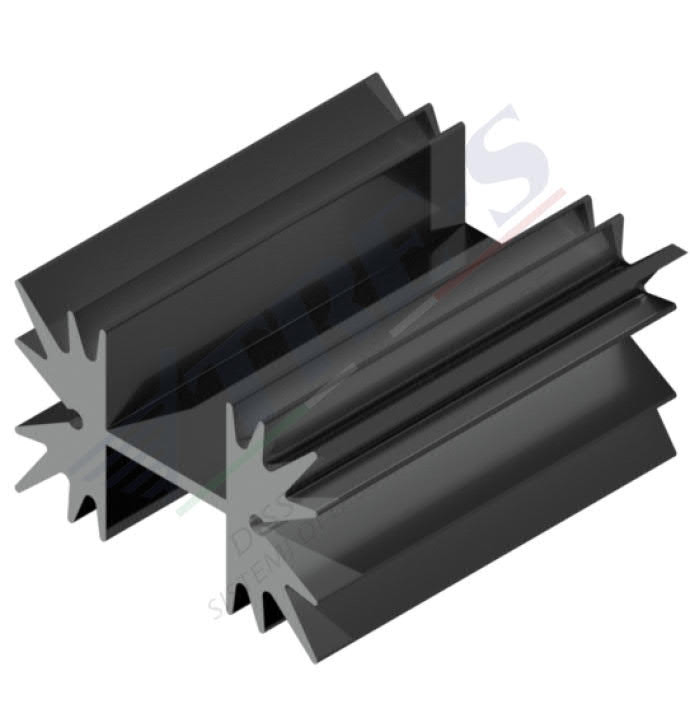

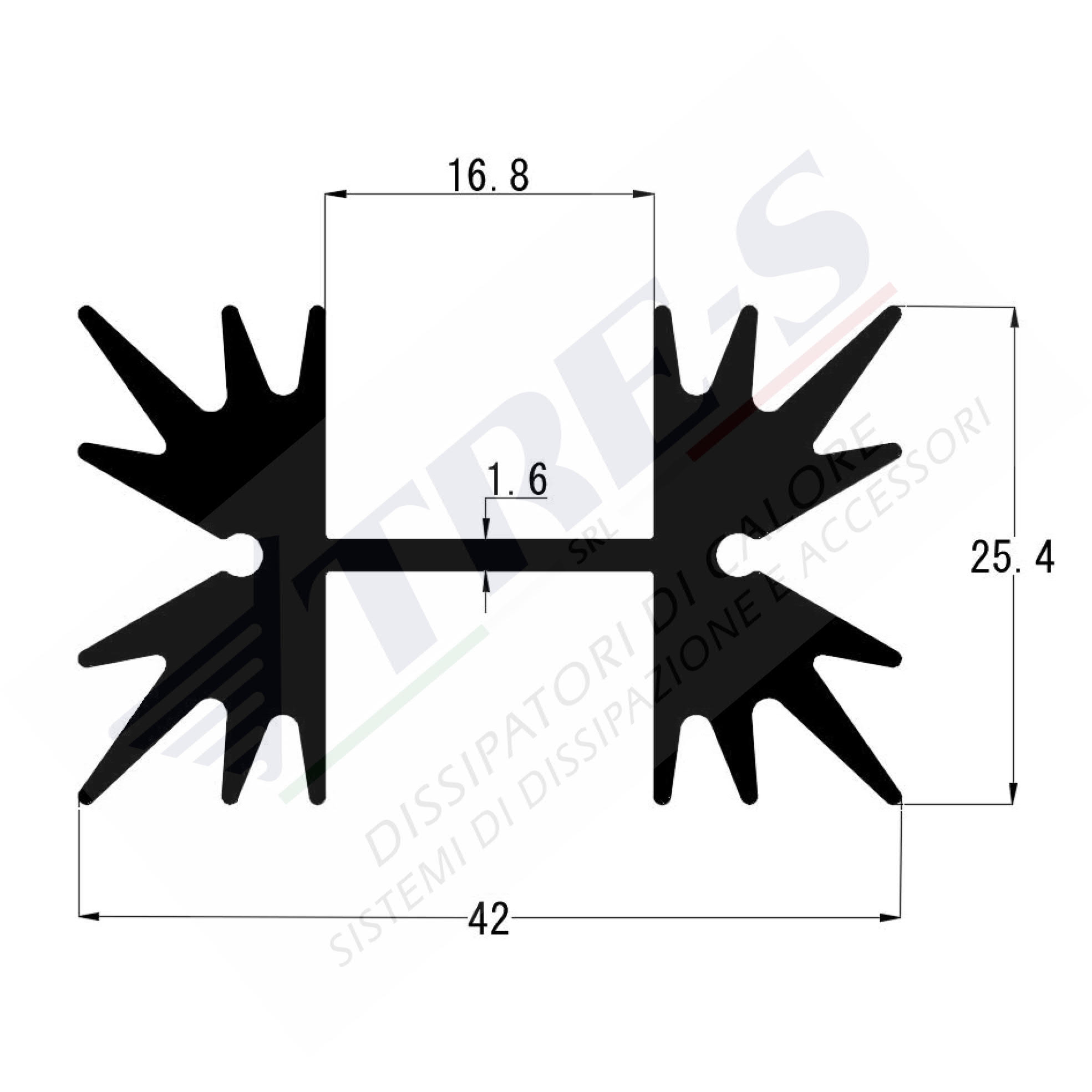

PRO1012
Profili per bassa e media potenza


Mechanical characteristics:

Height: 25.40 mm

Width: 42.00 mm

Weight: 1.01 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

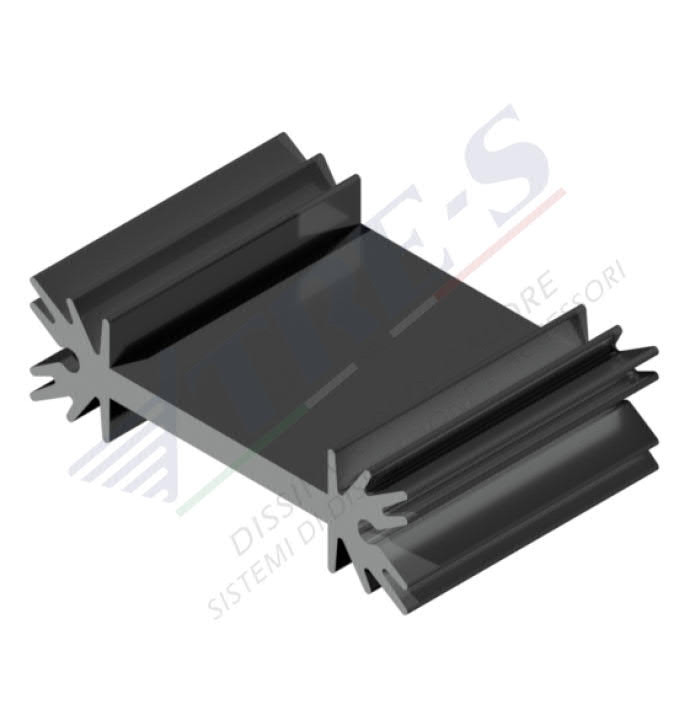

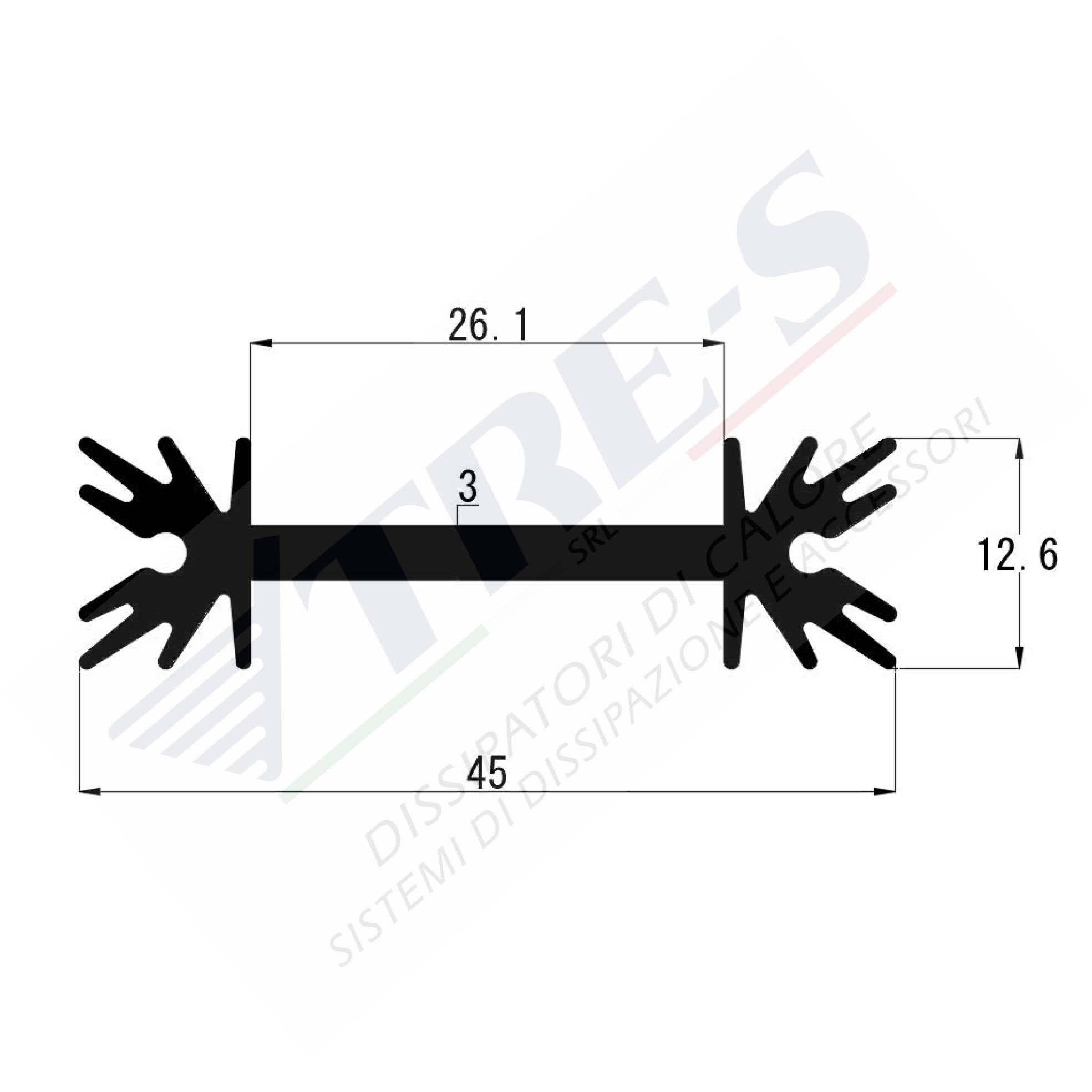

PRO1039
Profili per bassa e media potenza


Mechanical characteristics:

Height: 12.60 mm

Width: 45.00 mm

Weight: 0.56 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

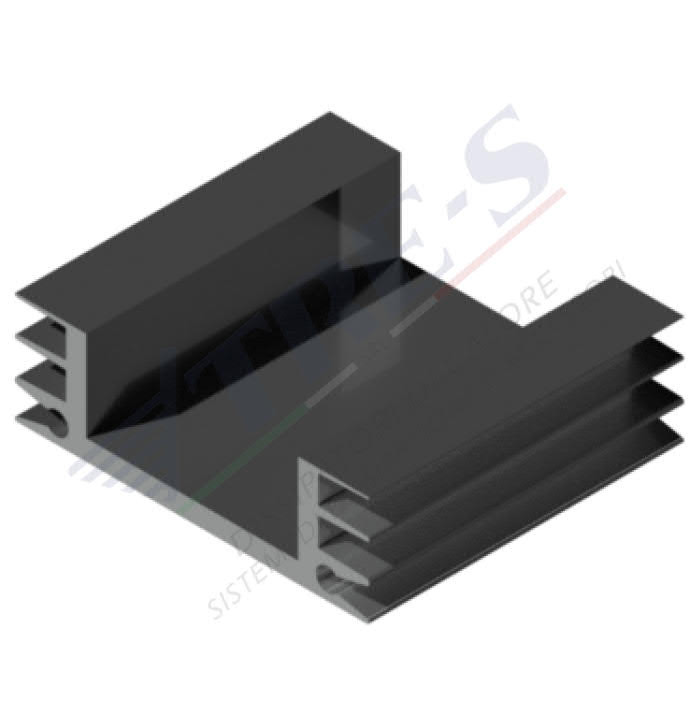

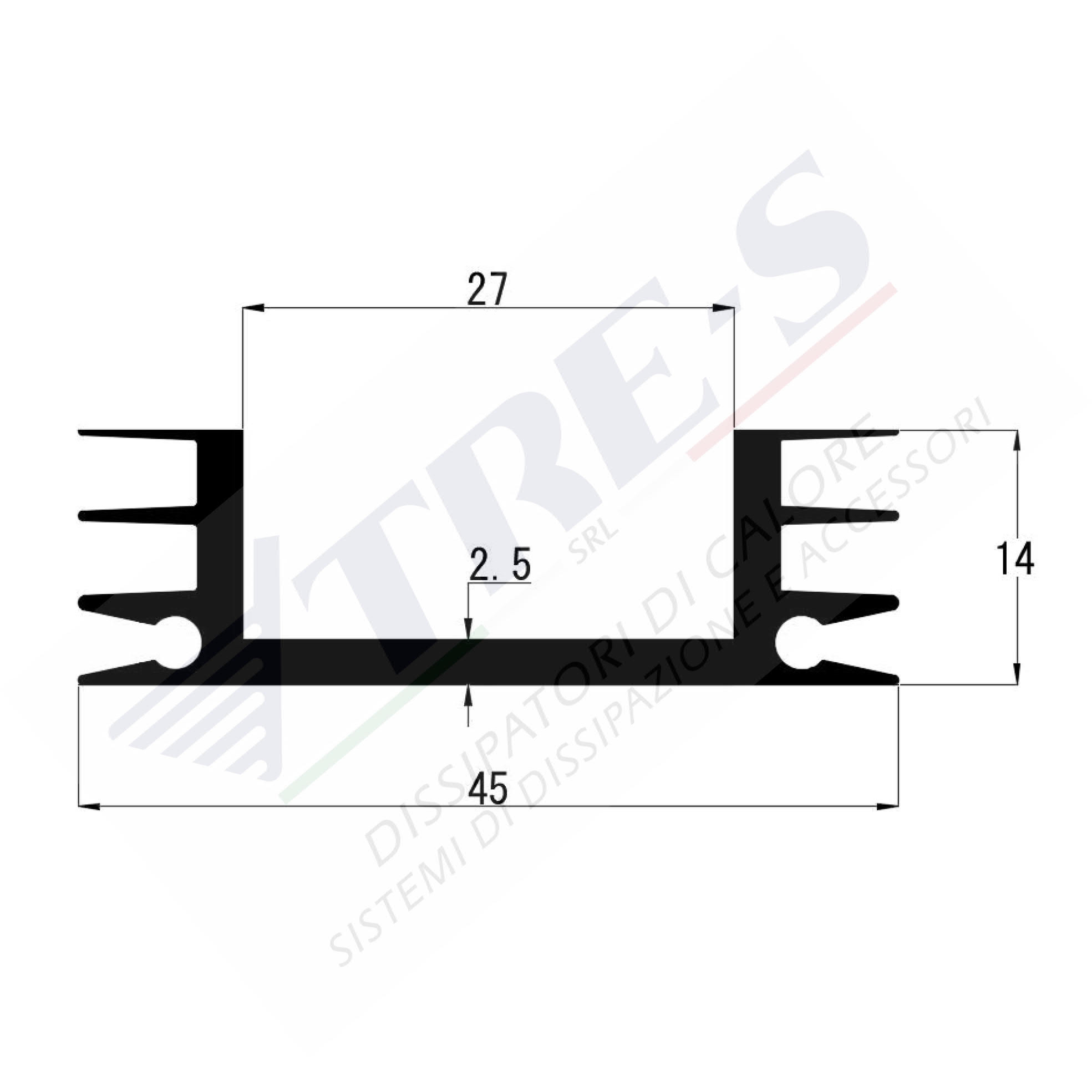

PRO1018
Profili per bassa e media potenza


Mechanical characteristics:

Height: 14.00 mm

Width: 45.00 mm

Weight: 0.56 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

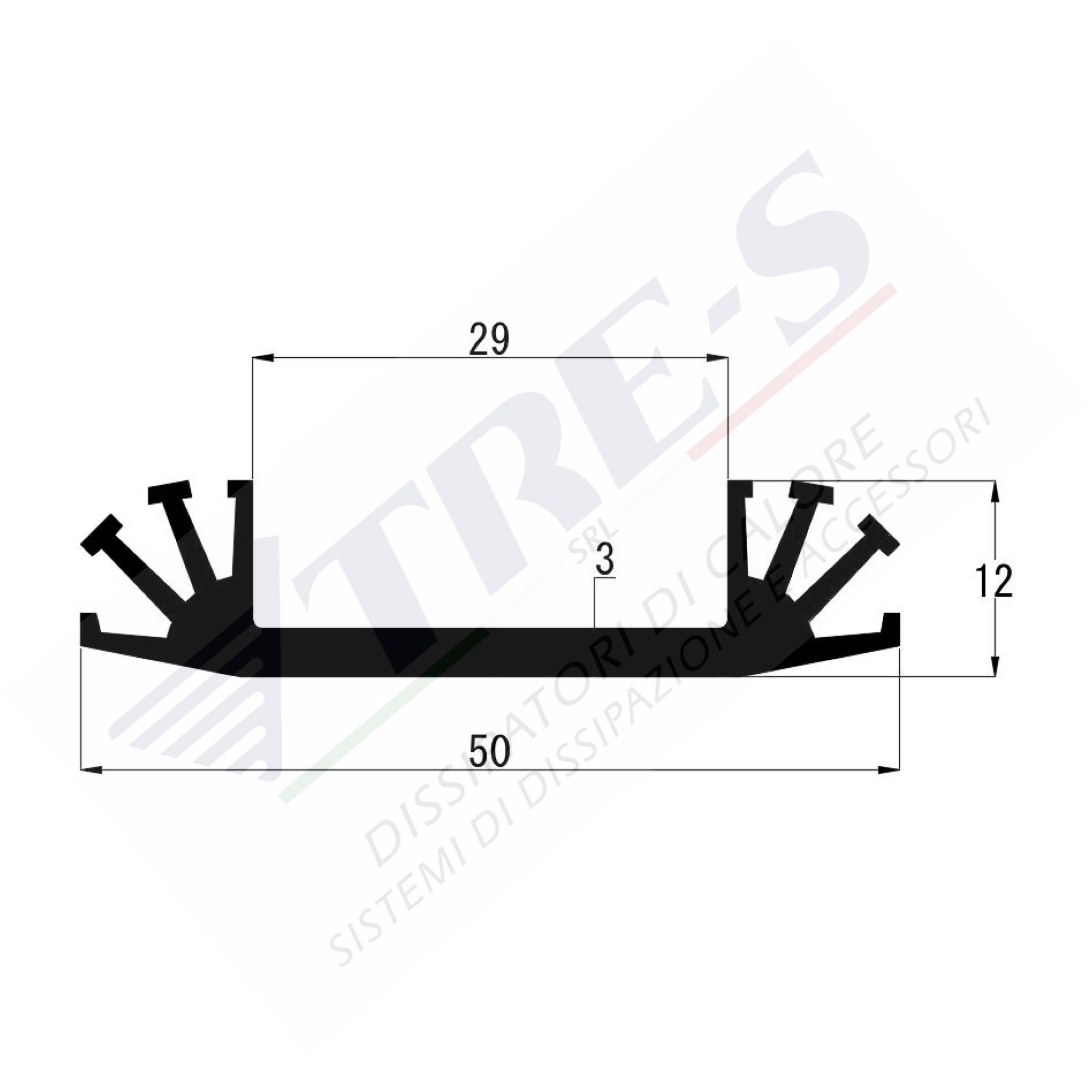

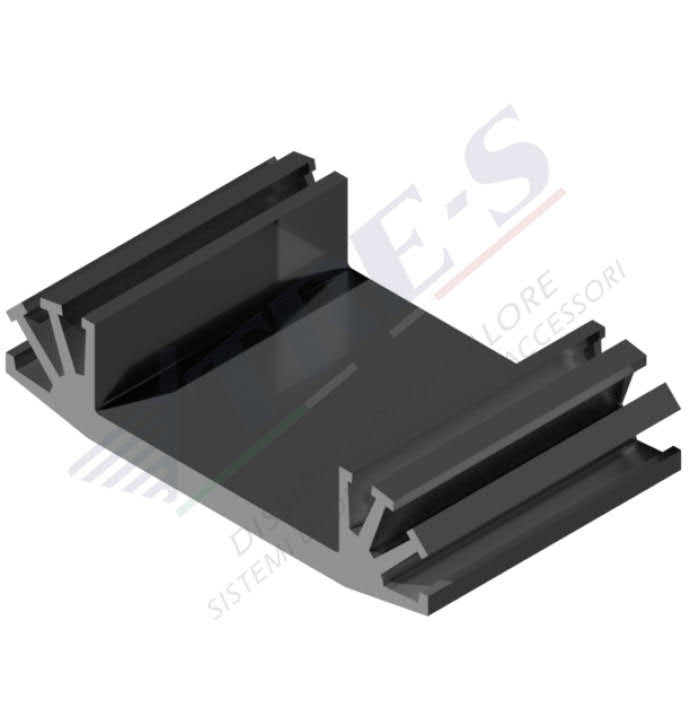

PRO1003
Profili per bassa e media potenza


Mechanical characteristics:

Height: 12.00 mm

Width: 50.00 mm

Weight: 0.56 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

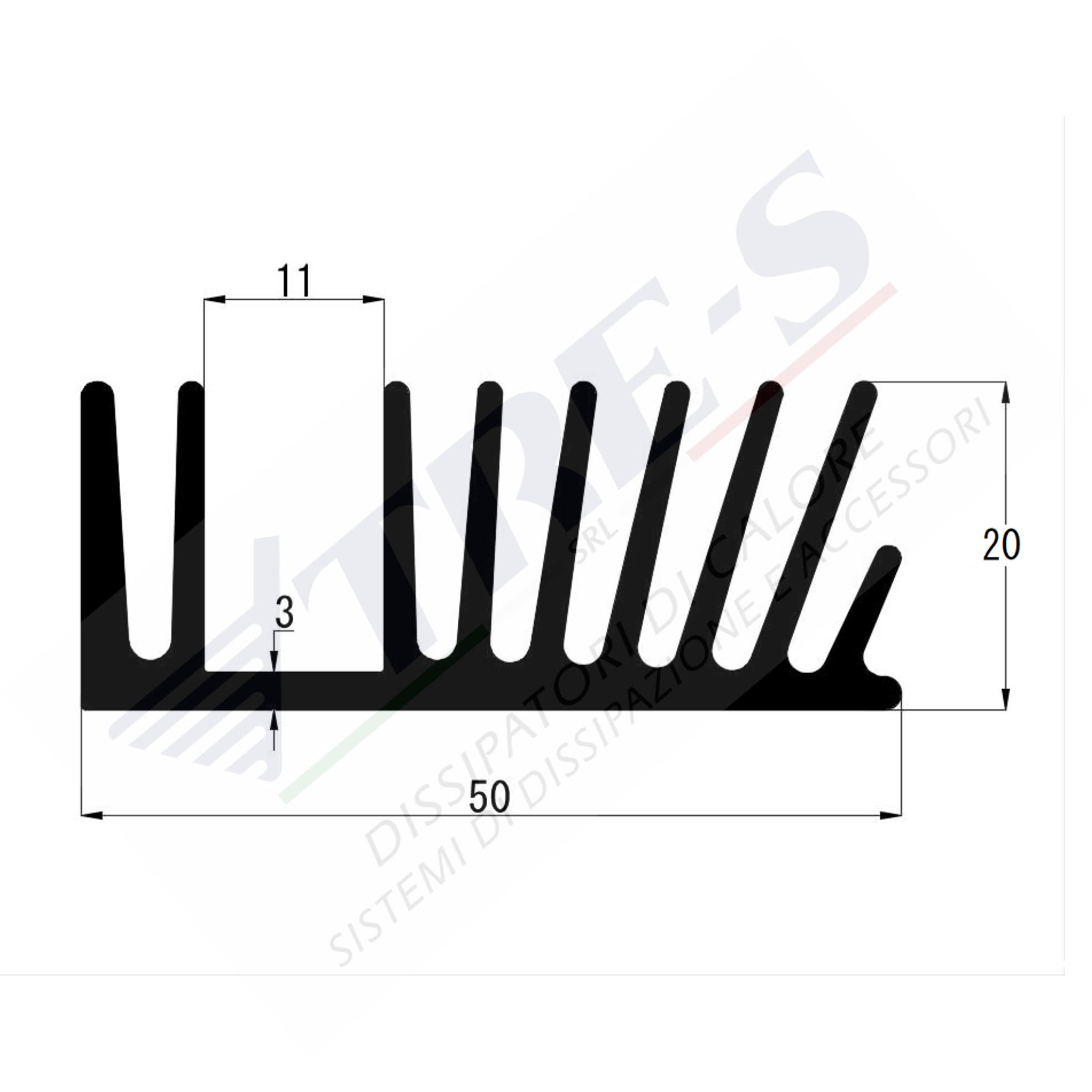

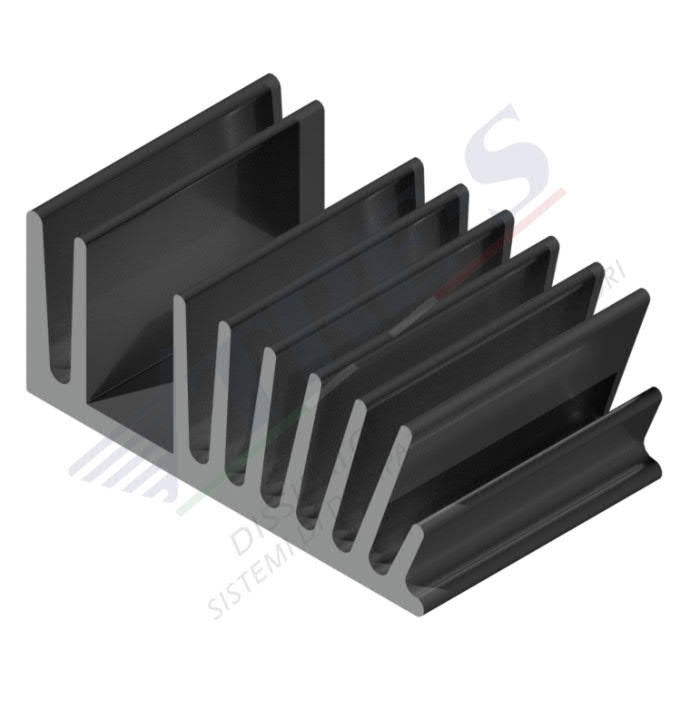

PRO1050
Profili per bassa e media potenza


Mechanical characteristics:

Height: 20.00 mm

Width: 50.00 mm

Weight: 1.08 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

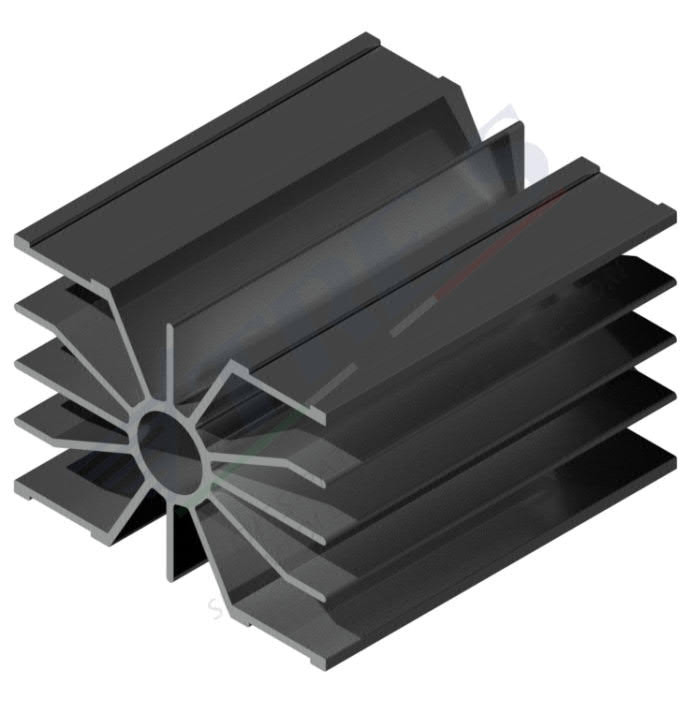

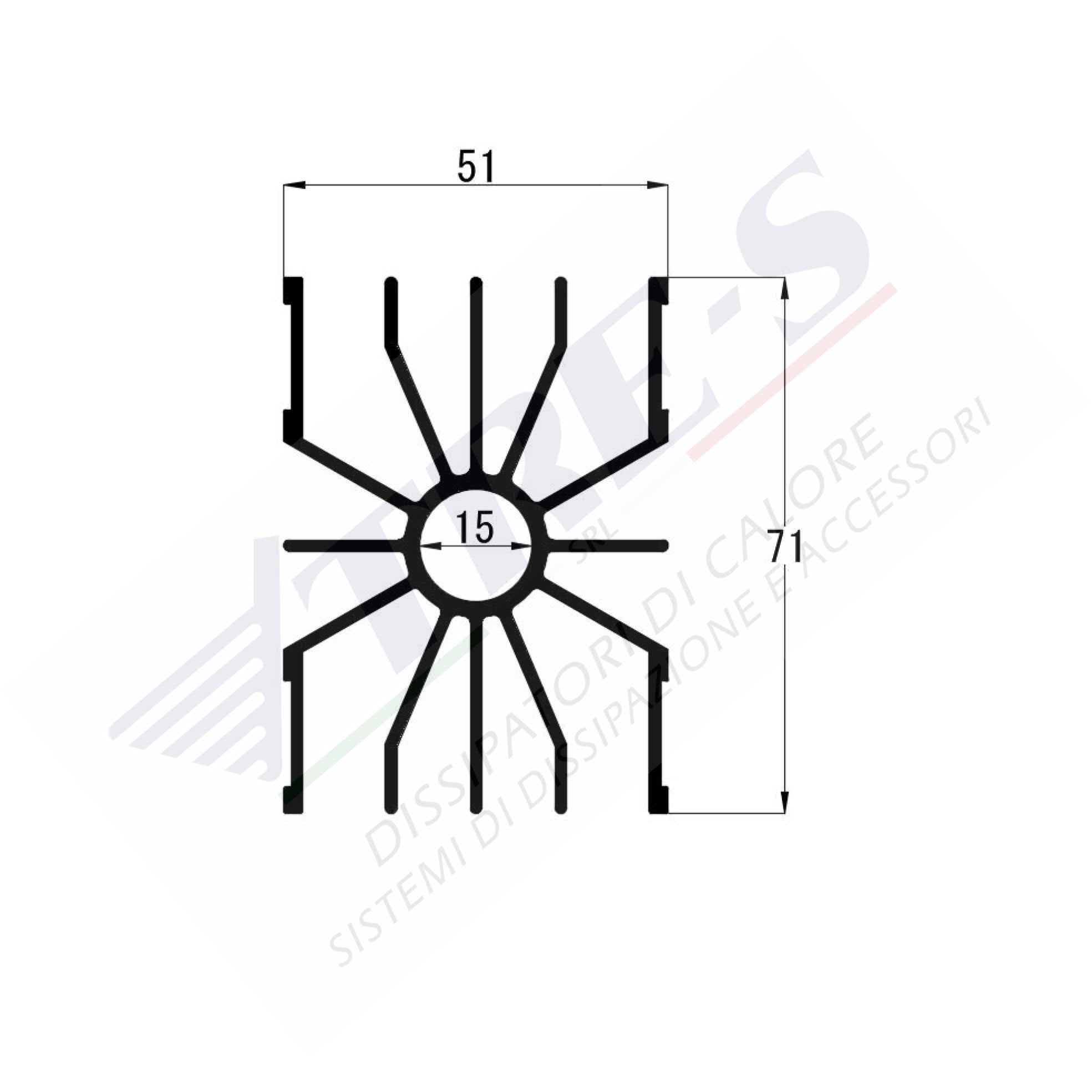

PRO1007
Profili per bassa e media potenza


Mechanical characteristics:

Height: 71.00 mm

Width: 51.00 mm

Weight: 1.82 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1019
Profili per bassa e media potenza


Mechanical characteristics:

Height: 20.00 mm

Width: 52.00 mm

Weight: 0.80 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 1.47

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 4.39

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

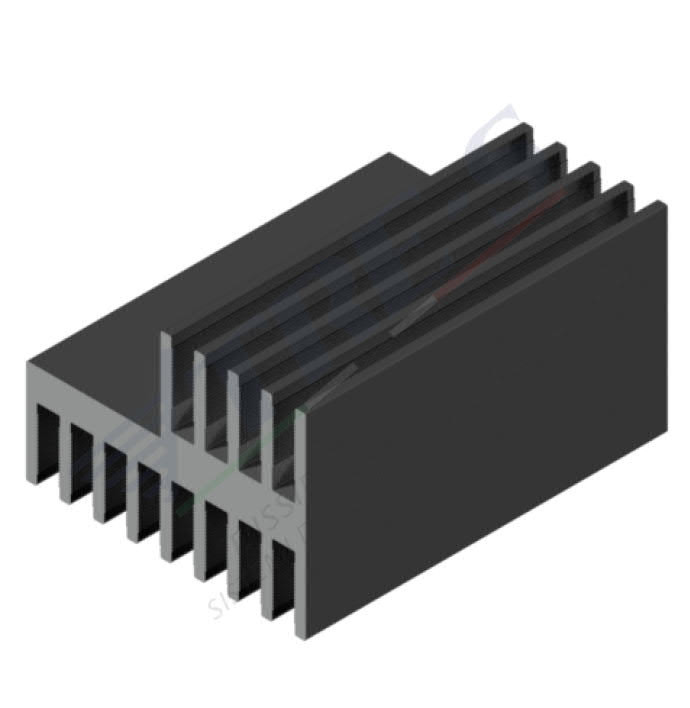

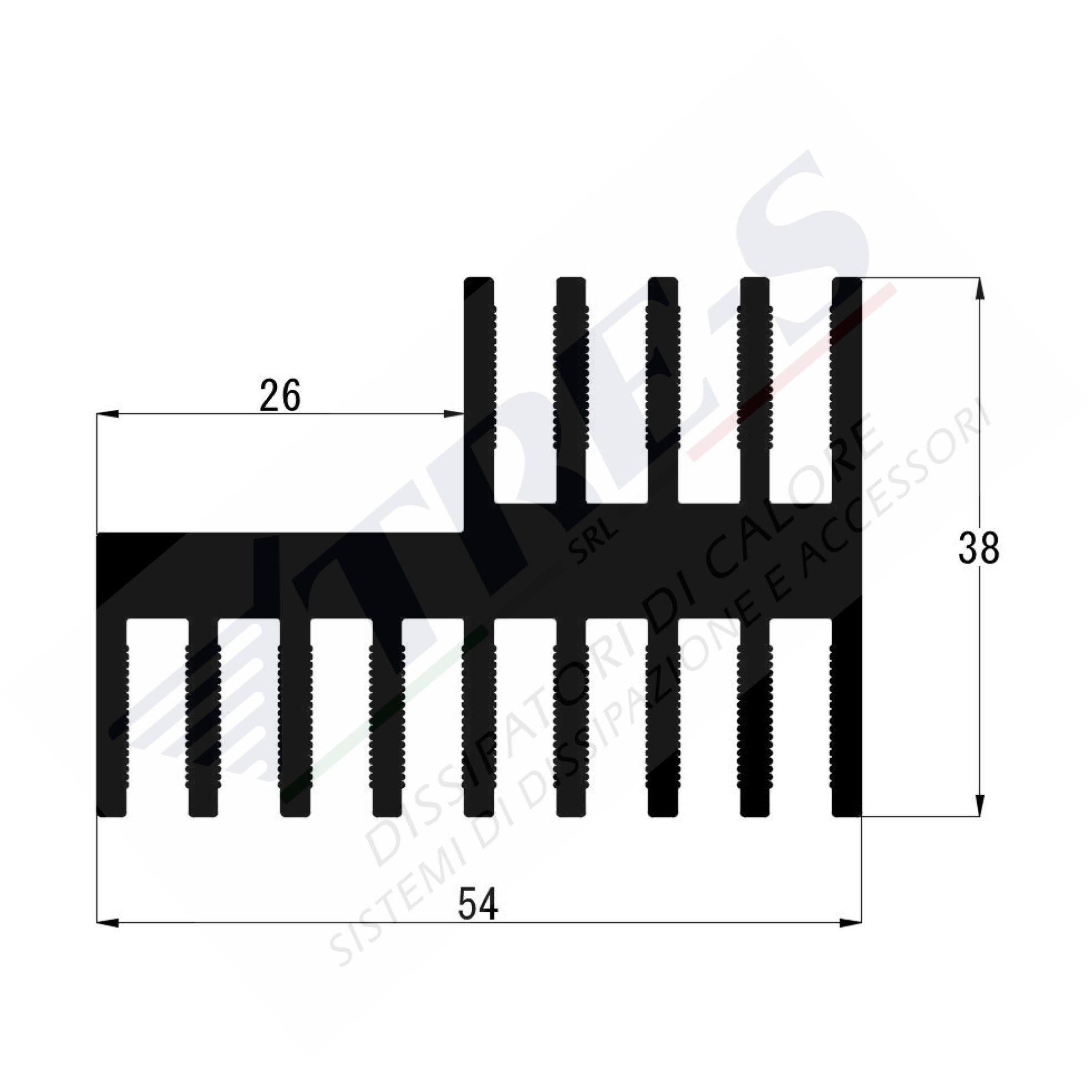

PRO1024
Profili per bassa e media potenza


Mechanical characteristics:

Height: 38.00 mm

Width: 54.00 mm

Weight: 2.20 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.89

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 2.68

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1014
Profili per bassa e media potenza


Mechanical characteristics:

Height: 22.50 mm

Width: 54.00 mm

Weight: 1.33 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

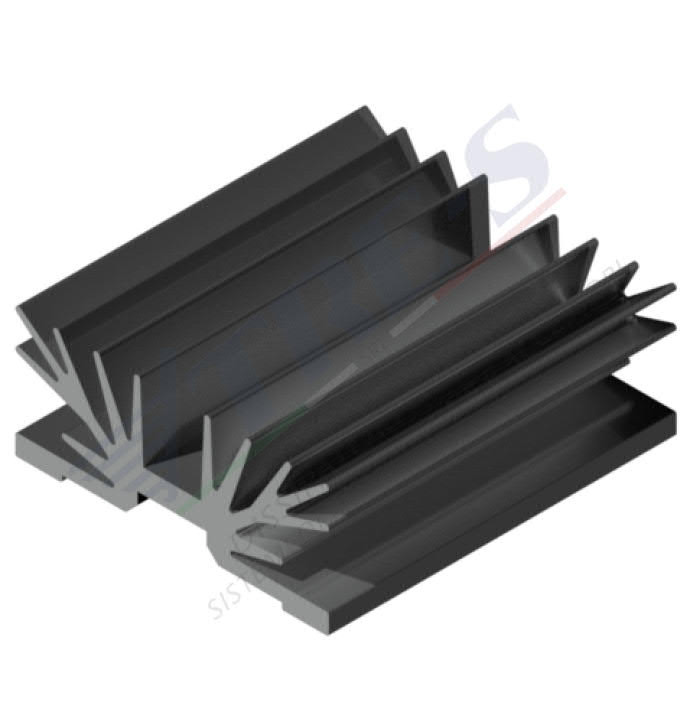

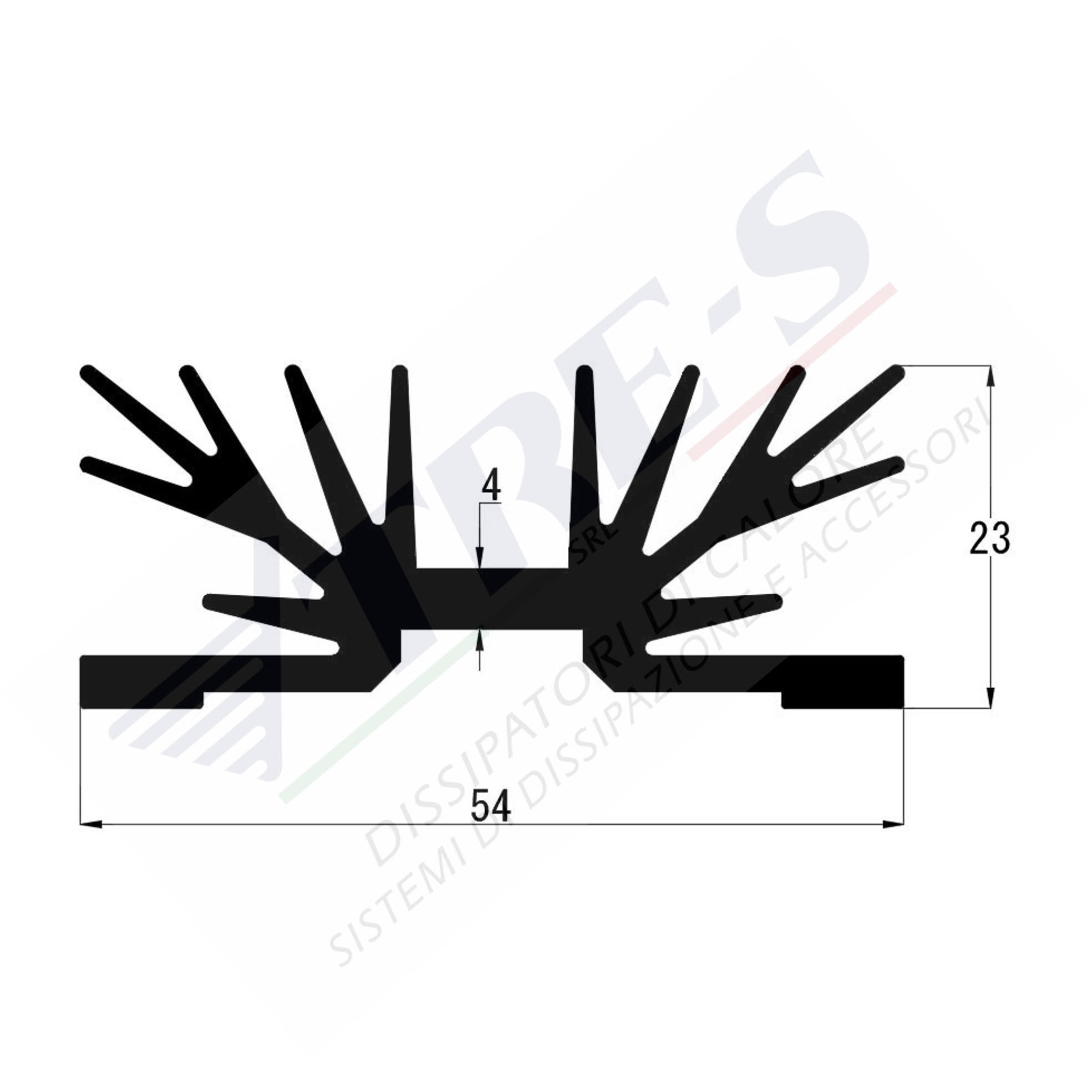

PRO1013
Profili per bassa e media potenza


Mechanical characteristics:

Height: 23.00 mm

Width: 54.00 mm

Weight: 1.25 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

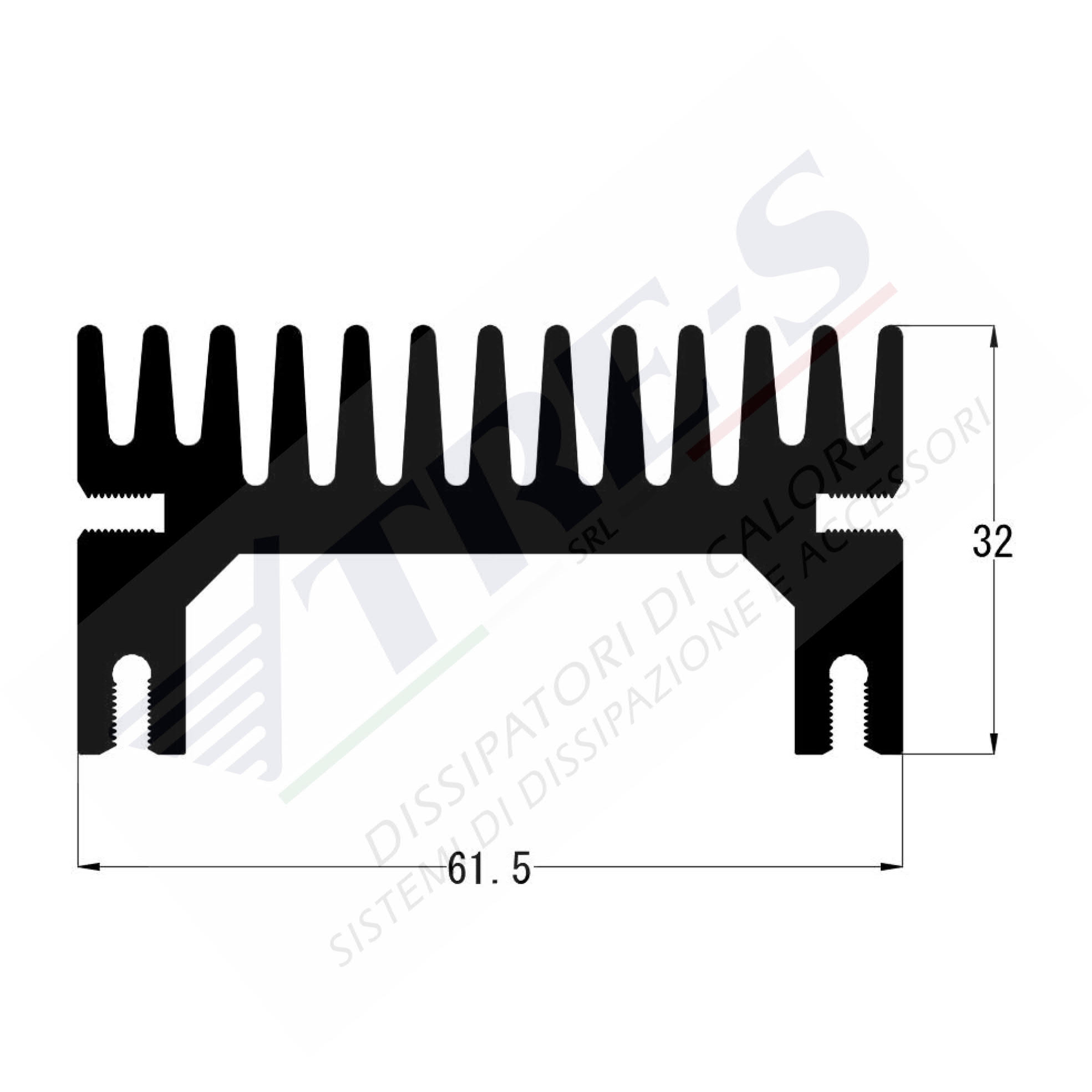

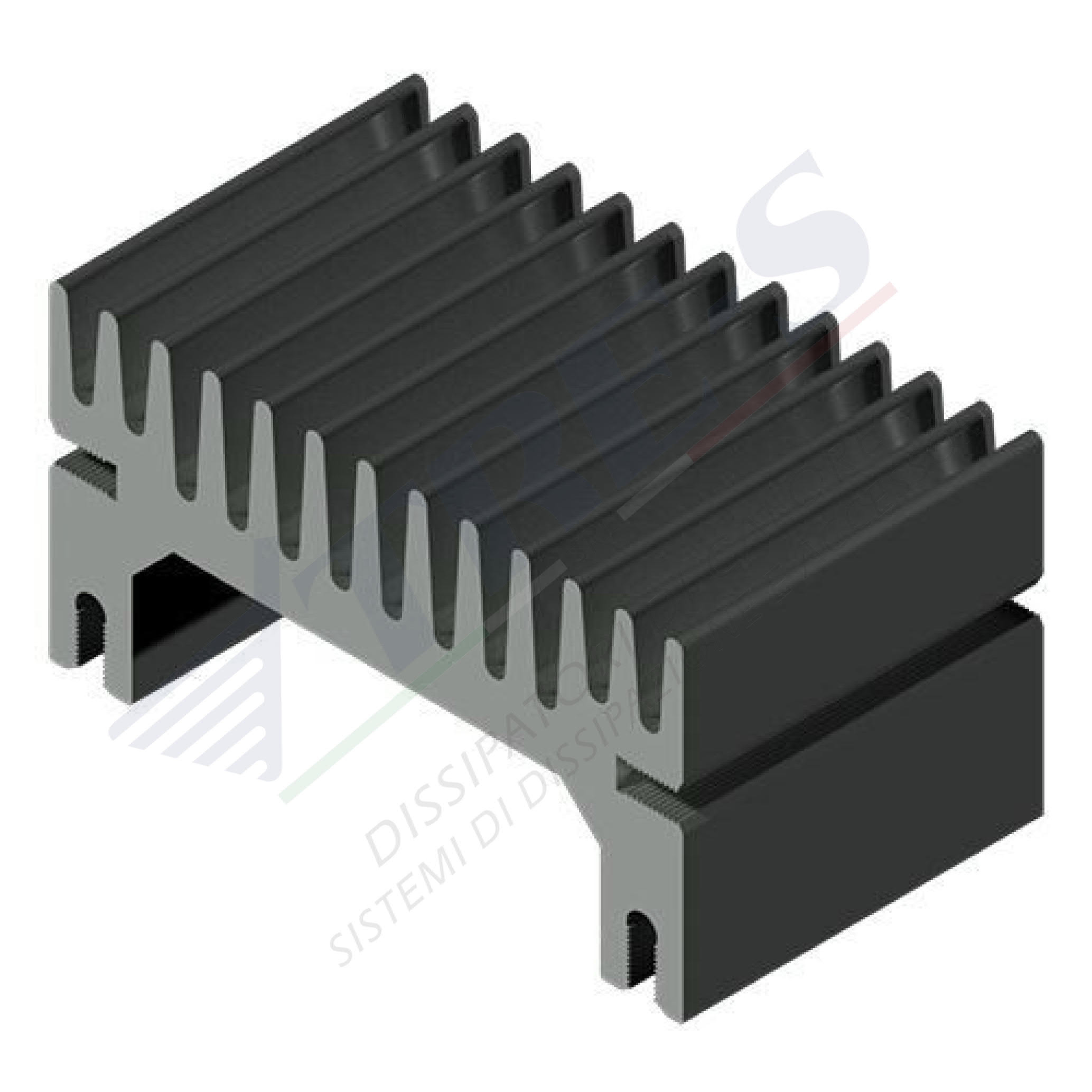

PRO1047
Profili per bassa e media potenza


Mechanical characteristics:

Height: 32.00 mm

Width: 61.50 mm

Weight: 2.37 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

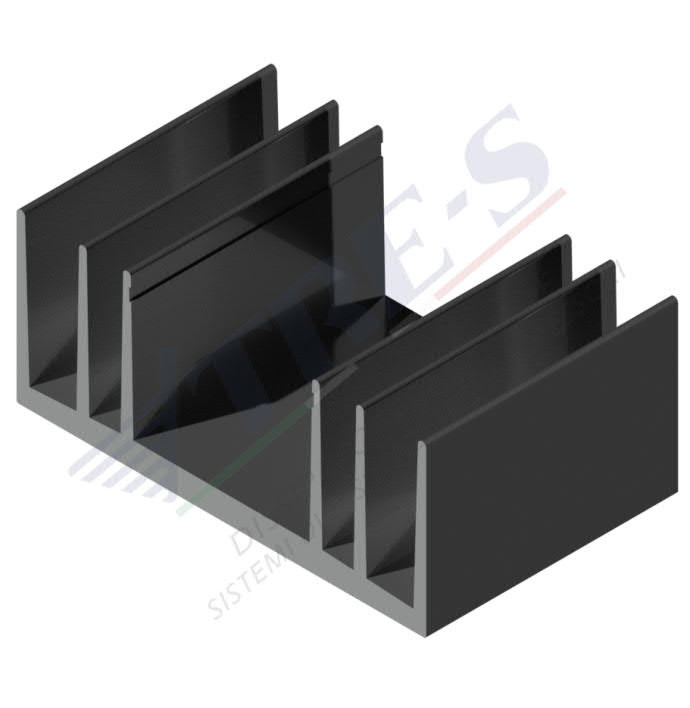

PRO1048
Profili per bassa e media potenza


Mechanical characteristics:

Height: 26.80 mm

Width: 65.00 mm

Weight: 1.25 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

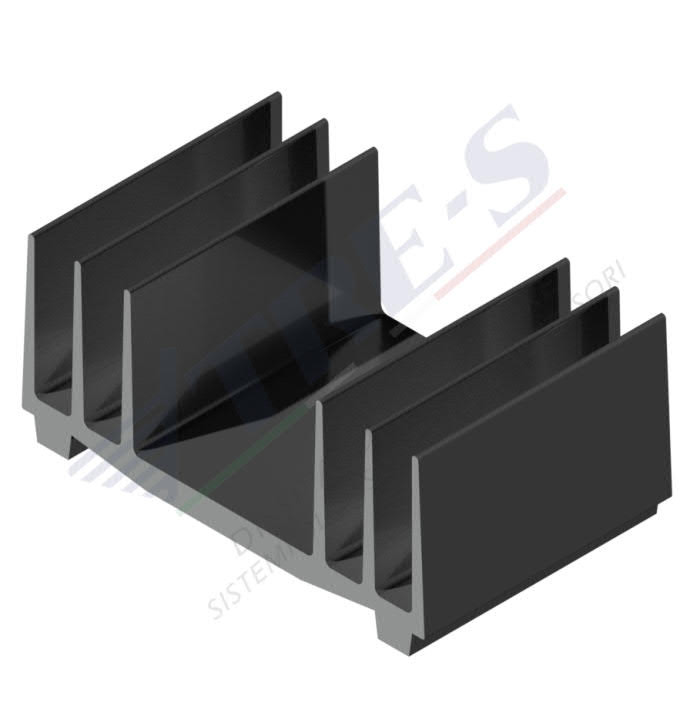

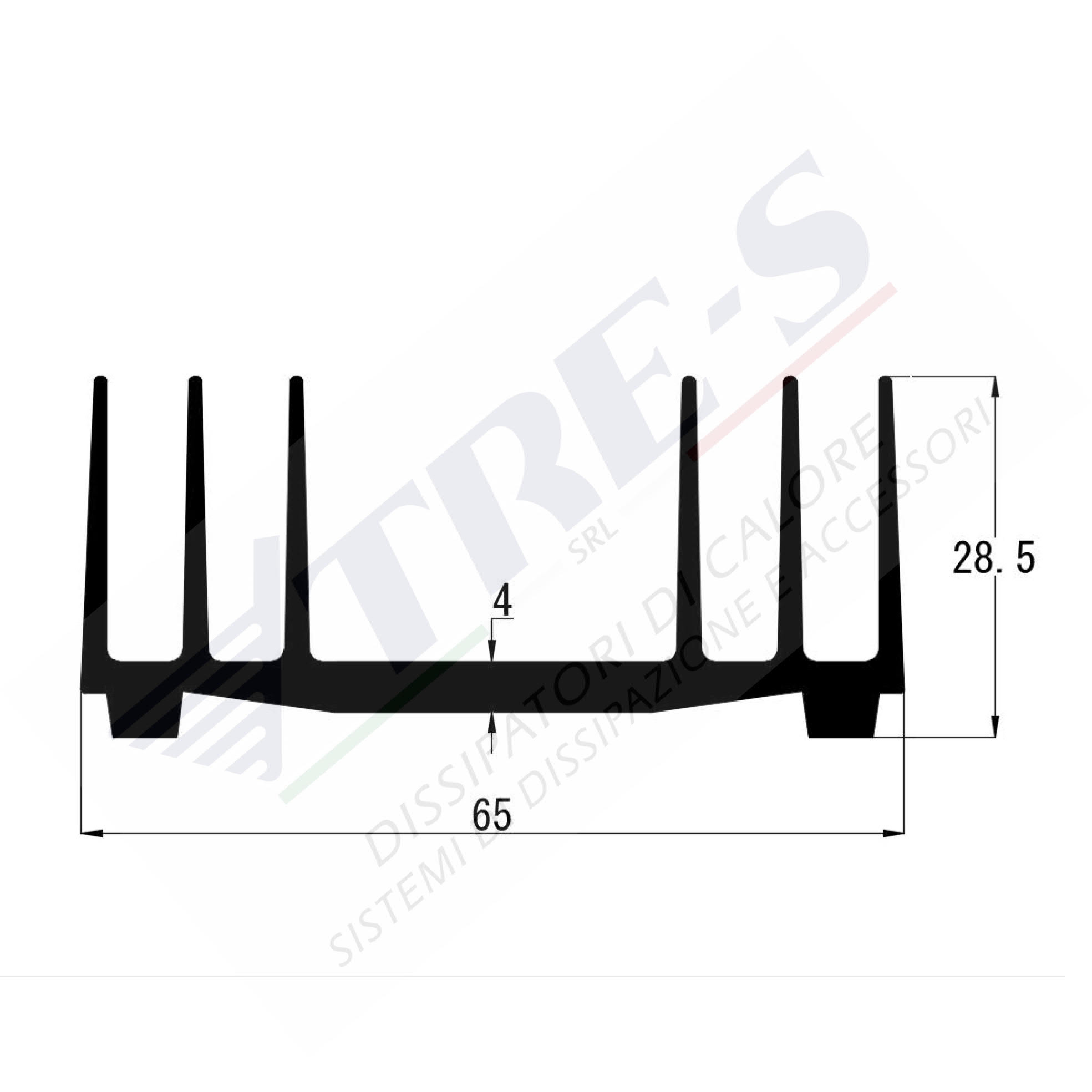

PRO1049
Profili per bassa e media potenza


Mechanical characteristics:

Height: 28.50 mm

Width: 65.00 mm

Weight: 1.23 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

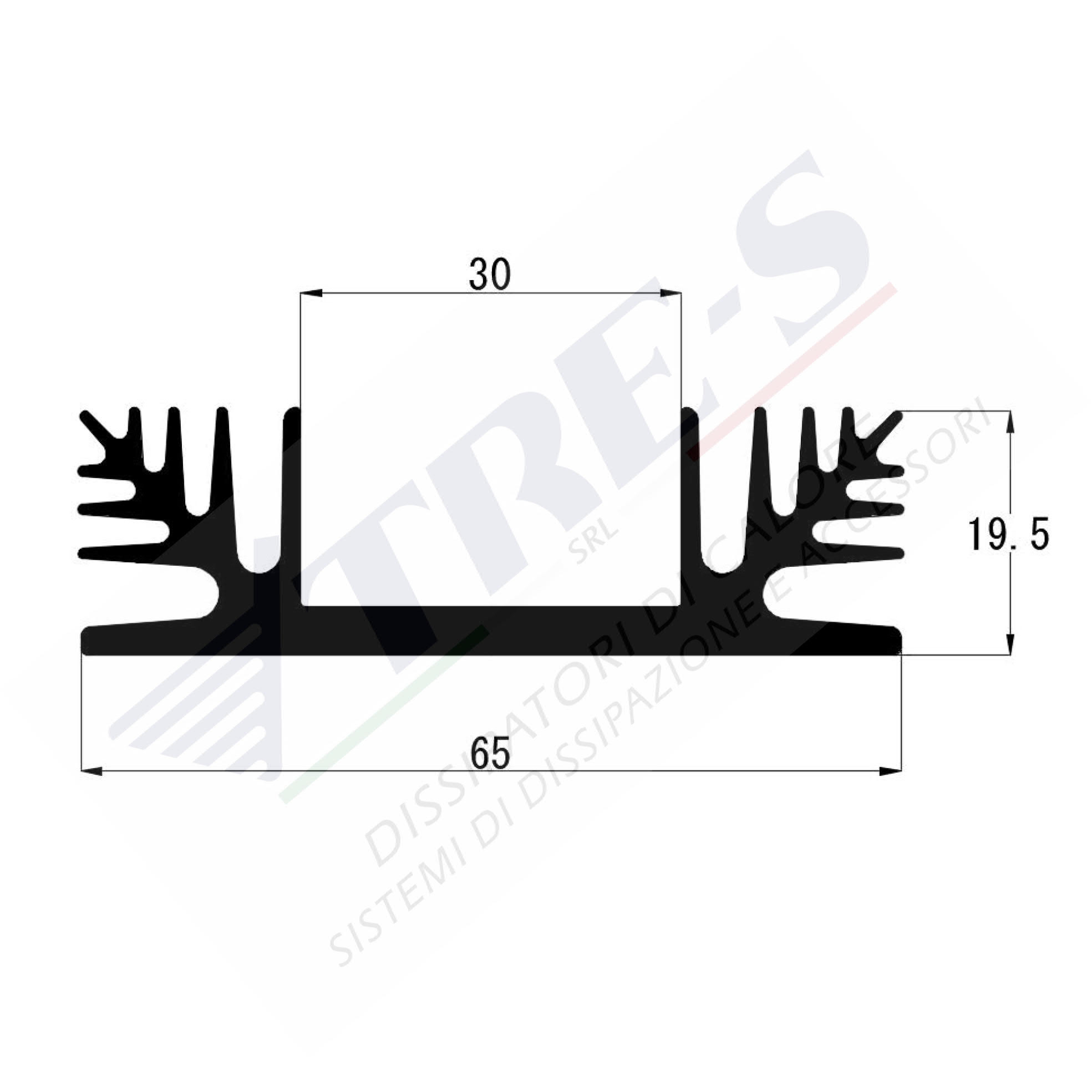

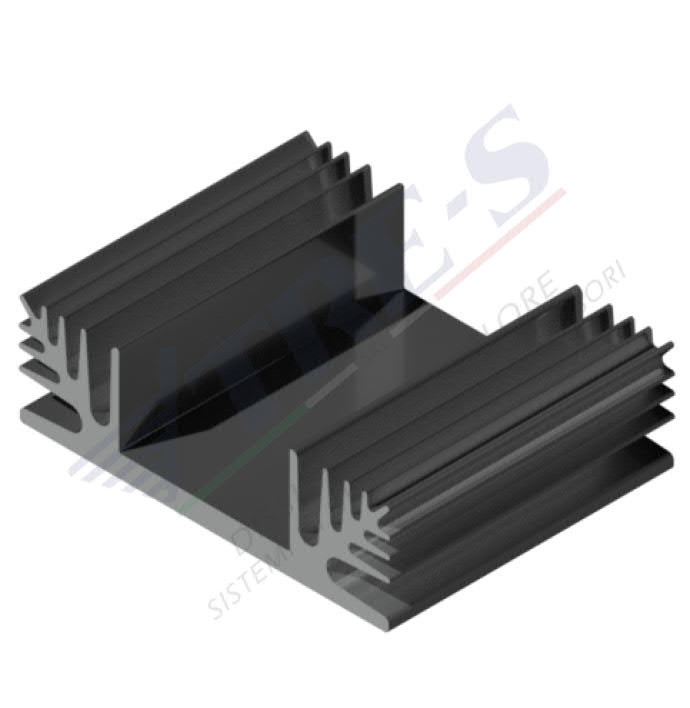

PRO1015
Profili per bassa e media potenza


Mechanical characteristics:

Height: 19.50 mm

Width: 65.00 mm

Weight: 1.24 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 1.27

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 3.75

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1029
Profili per bassa e media potenza


Mechanical characteristics:

Height: 33.00 mm

Width: 66.60 mm

Weight: 2.65 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1030
Profili per bassa e media potenza


Mechanical characteristics:

Height: 50.00 mm

Width: 75.00 mm

Weight: 4.13 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

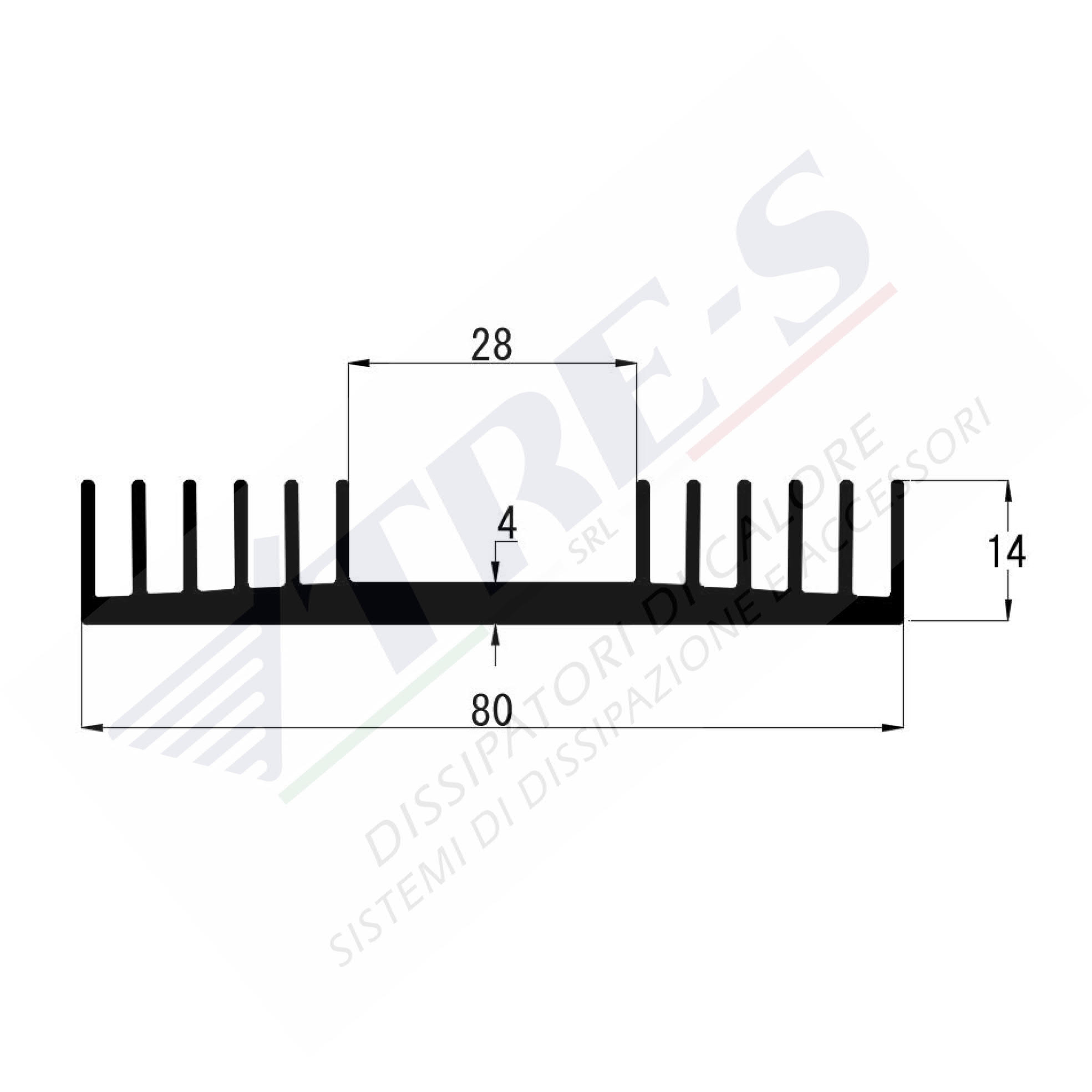

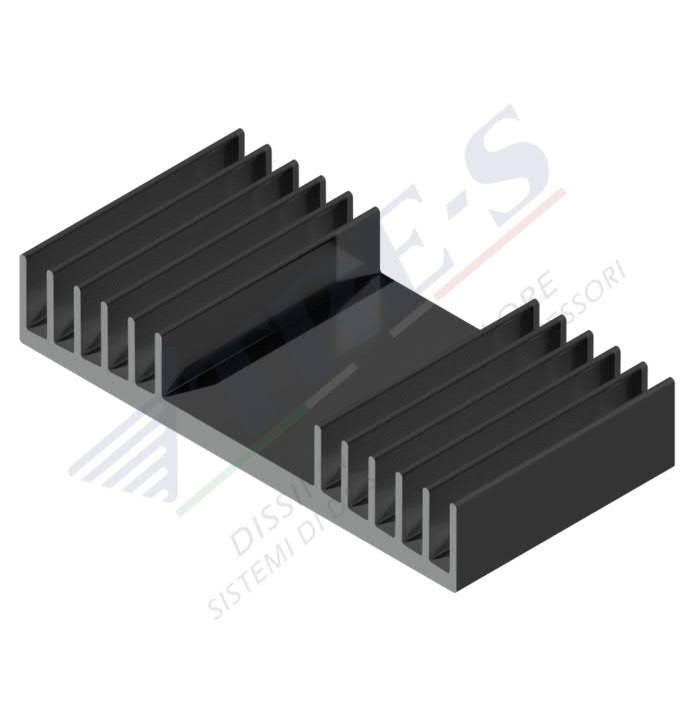

PRO1051
Profili per bassa e media potenza


Mechanical characteristics:

Height: 14.00 mm

Width: 80.00 mm

Weight: 1.17 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

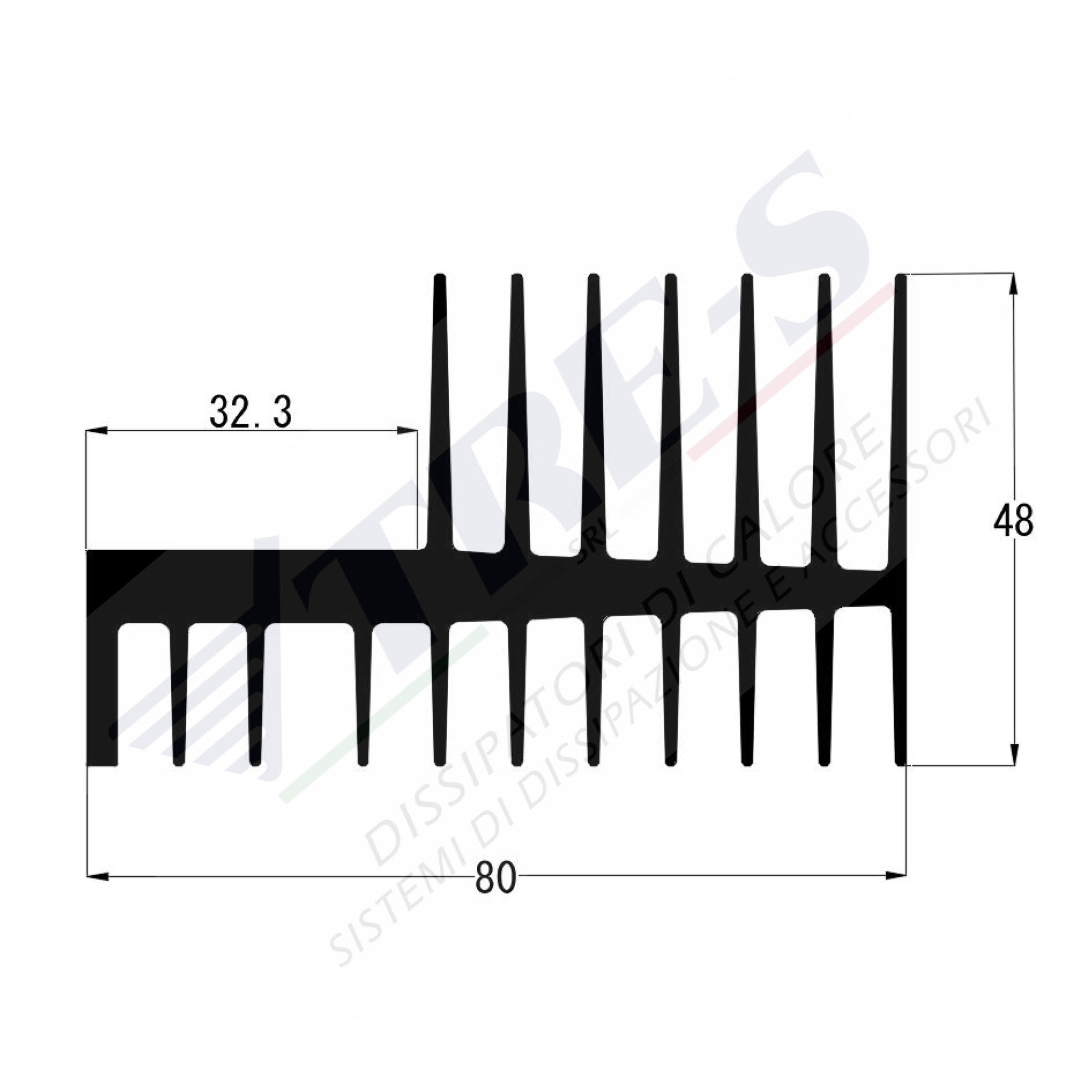

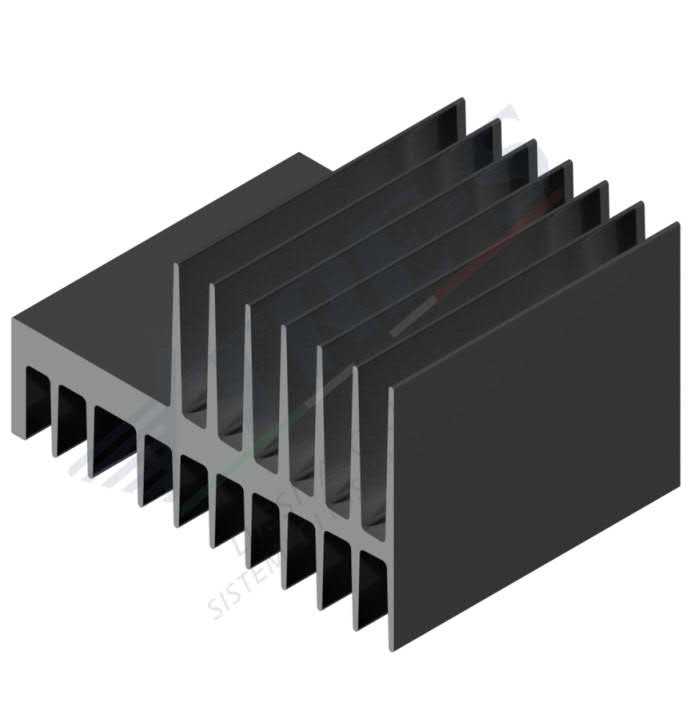

PRO1023
Profili per bassa e media potenza


Mechanical characteristics:

Height: 48.00 mm

Width: 80.00 mm

Weight: 2.80 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

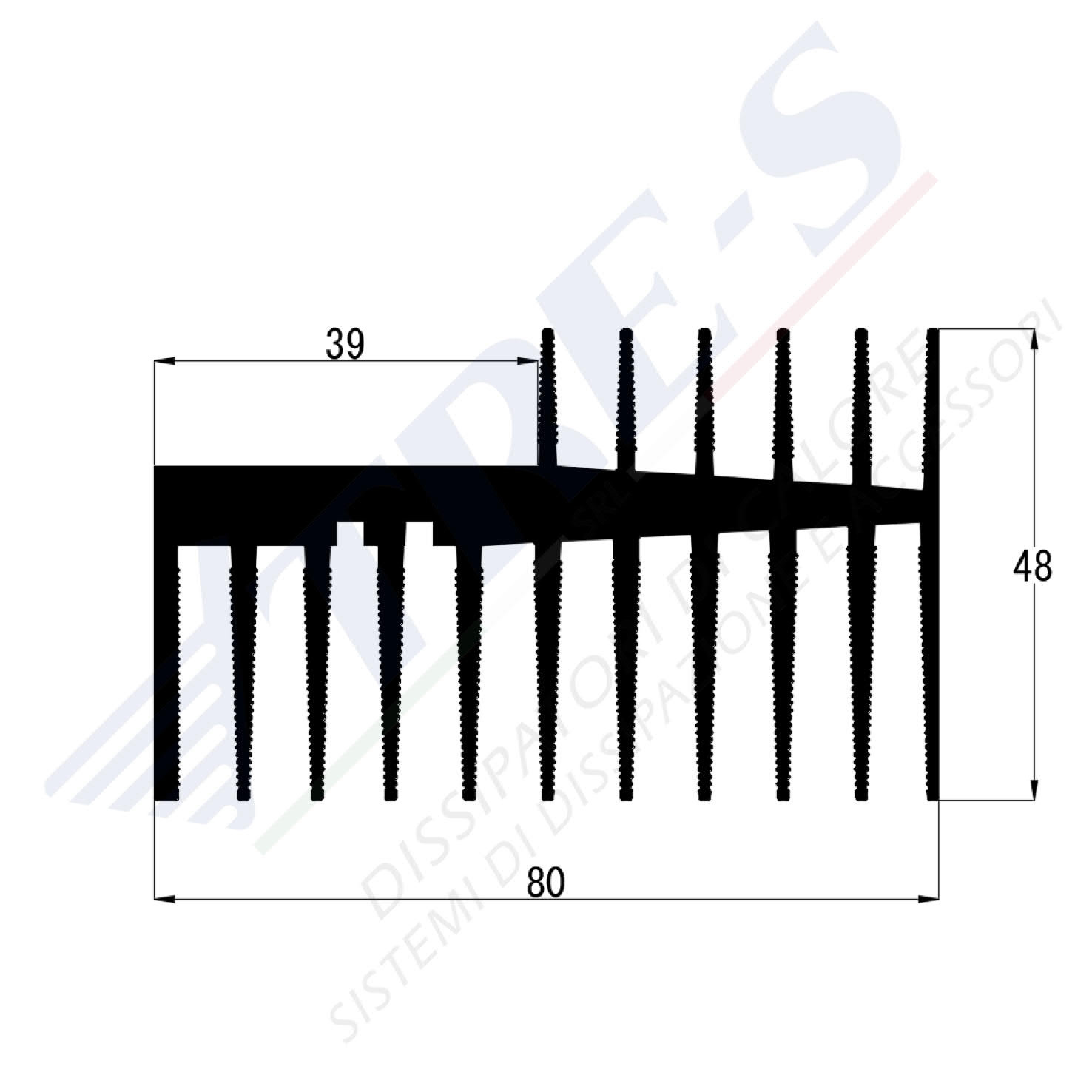

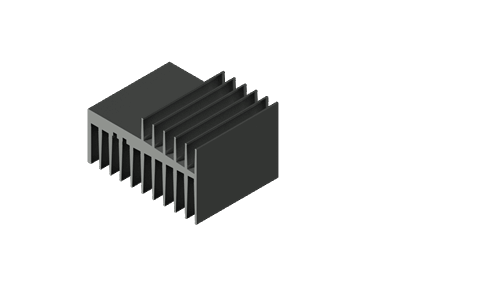

PRO1069
Profili per bassa e media potenza


Mechanical characteristics:

Height: 48.00 mm

Width: 80.00 mm

Weight: 3.28 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1071
Profili per bassa e media potenza


Mechanical characteristics:

Height: 58.00 mm

Width: 83.00 mm

Weight: 4.00 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

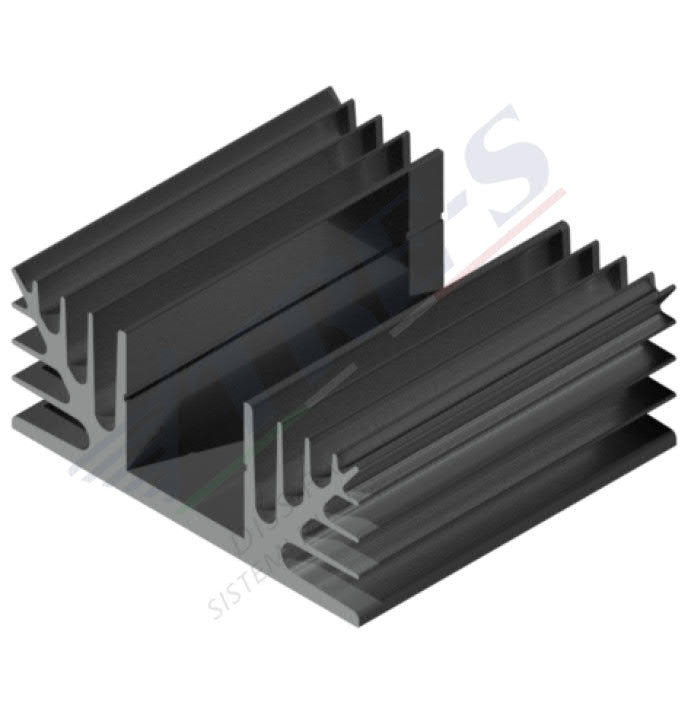

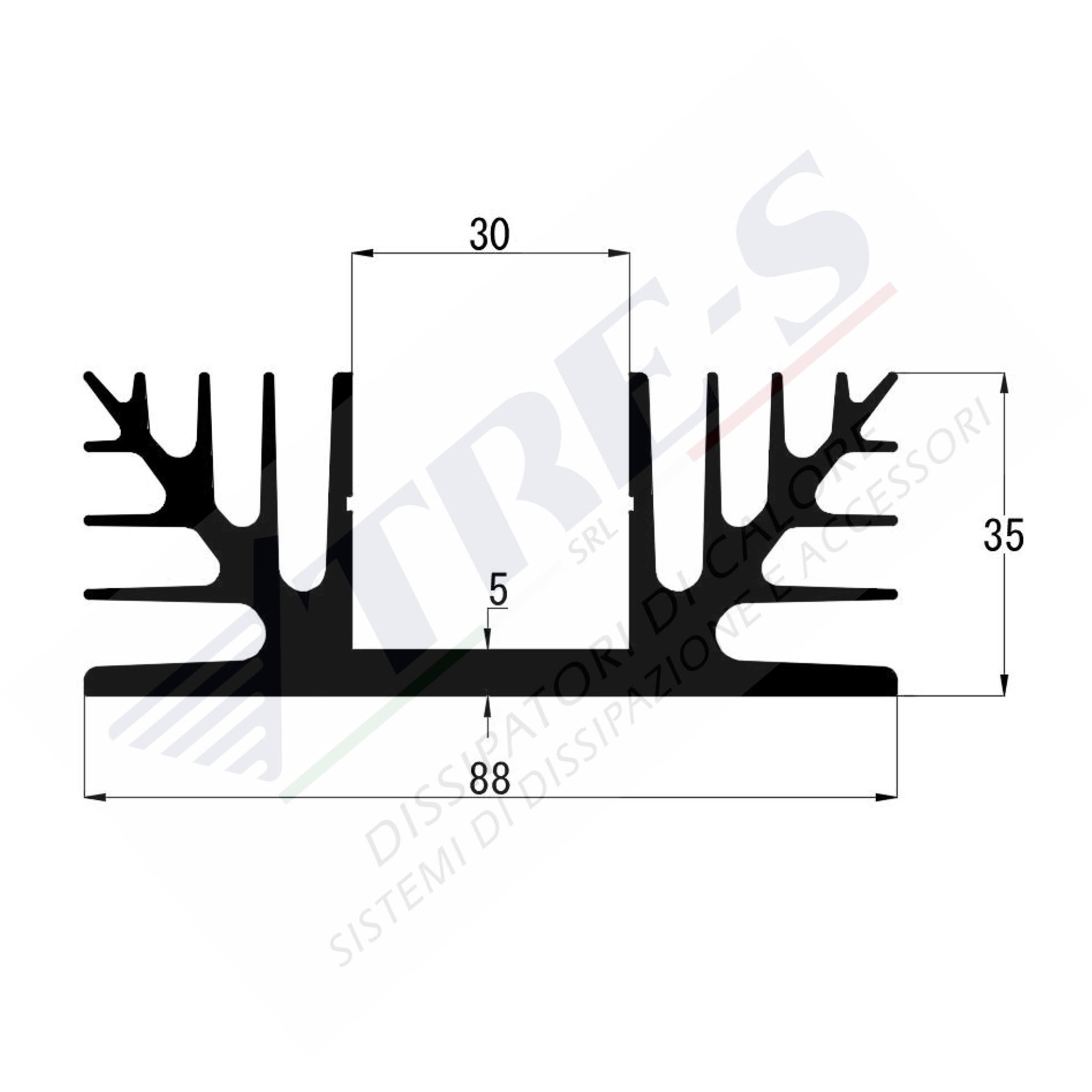

PRO1025
Profili per bassa e media potenza


Mechanical characteristics:

Height: 35.00 mm

Width: 88.00 mm

Weight: 2.77 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

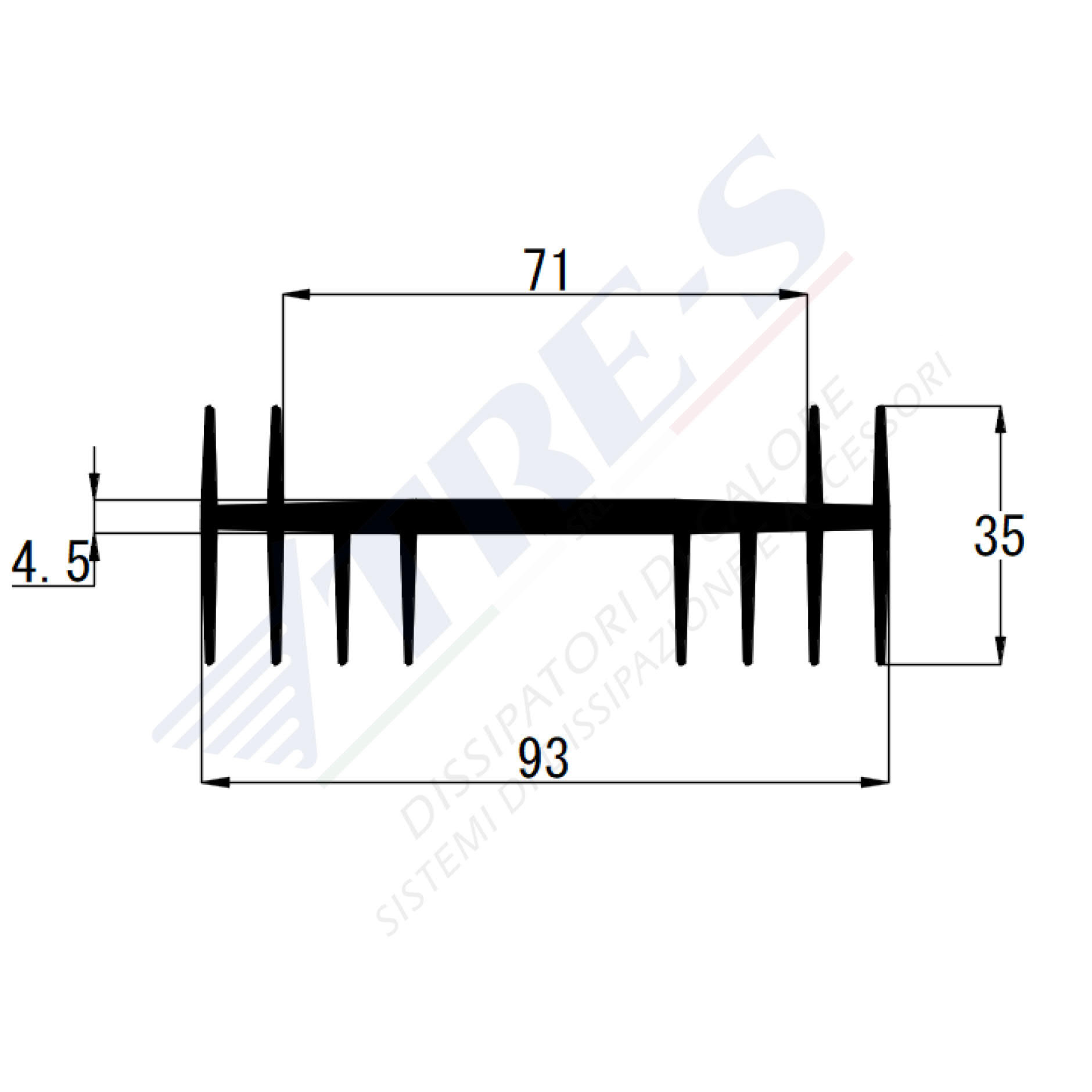

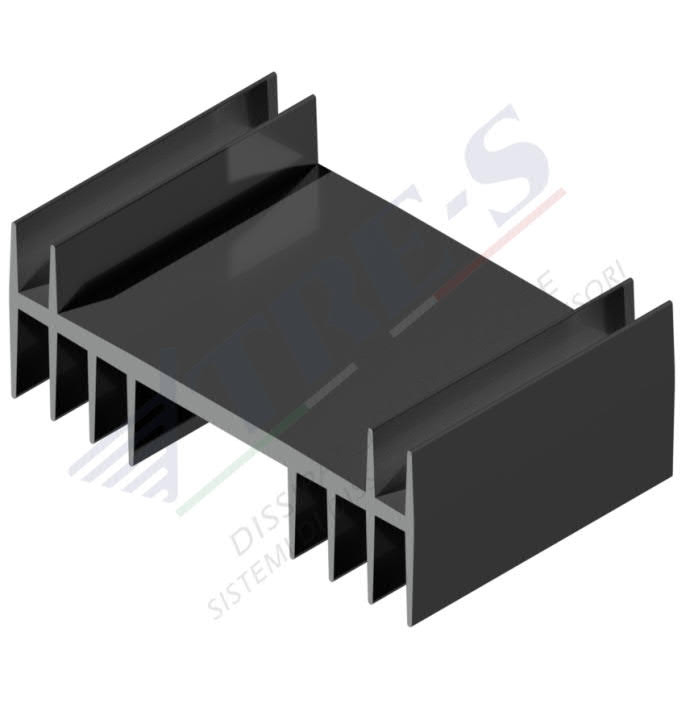

PRO1096
Profili per bassa e media potenza


Mechanical characteristics:

Height: 35.00 mm

Width: 93.00 mm

Weight: 1.80 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

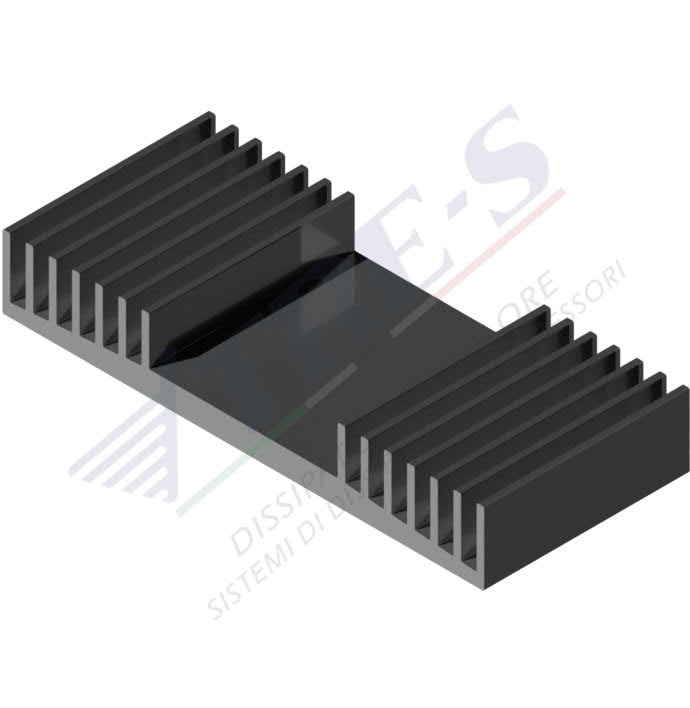

PRO1092
Profili per bassa e media potenza


Mechanical characteristics:

Height: 14.60 mm

Width: 94.00 mm

Weight: 1.61 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1200
Profili per bassa e media potenza


Mechanical characteristics:

Height: 5.00 mm

Width: 95.00 mm

Weight: 1.28 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

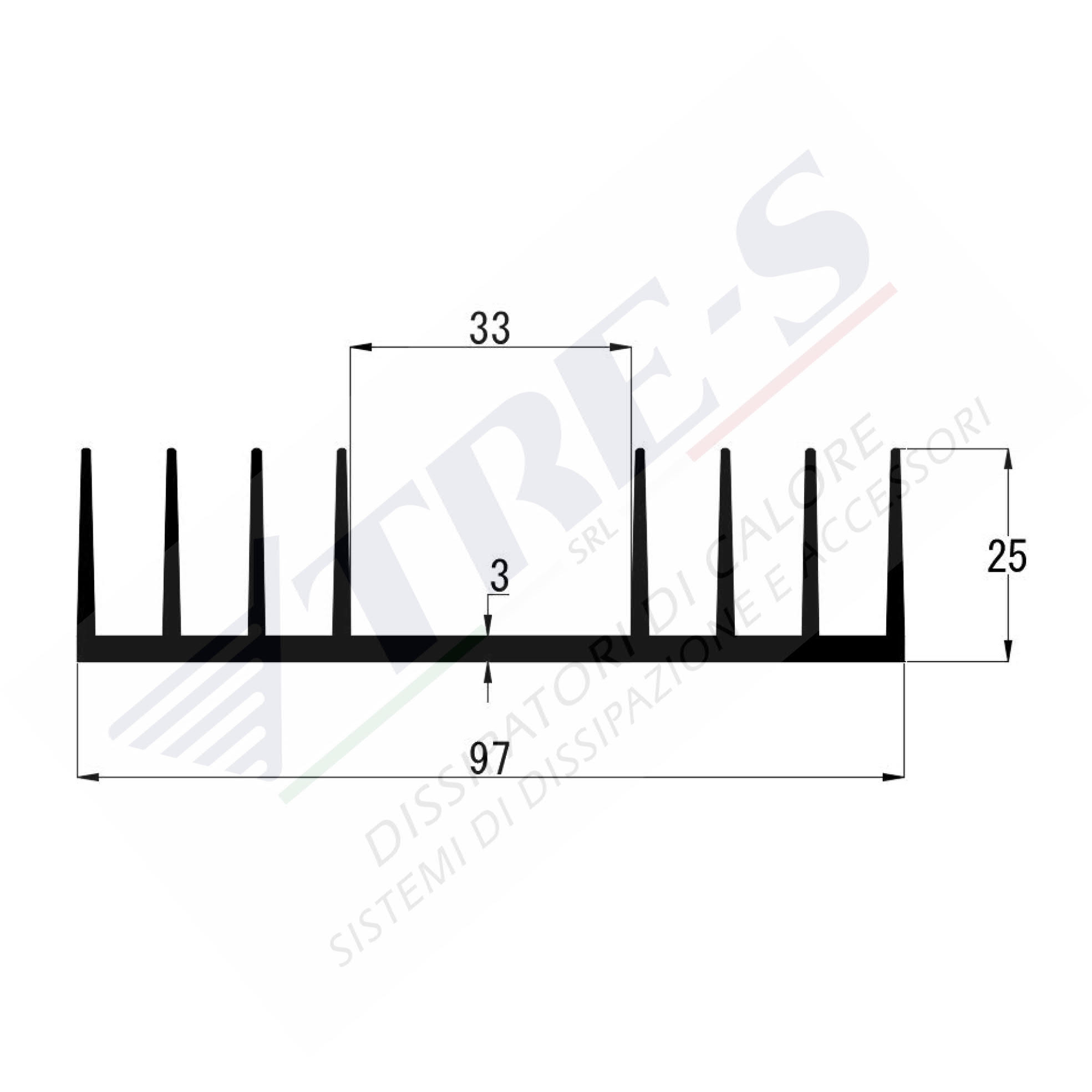

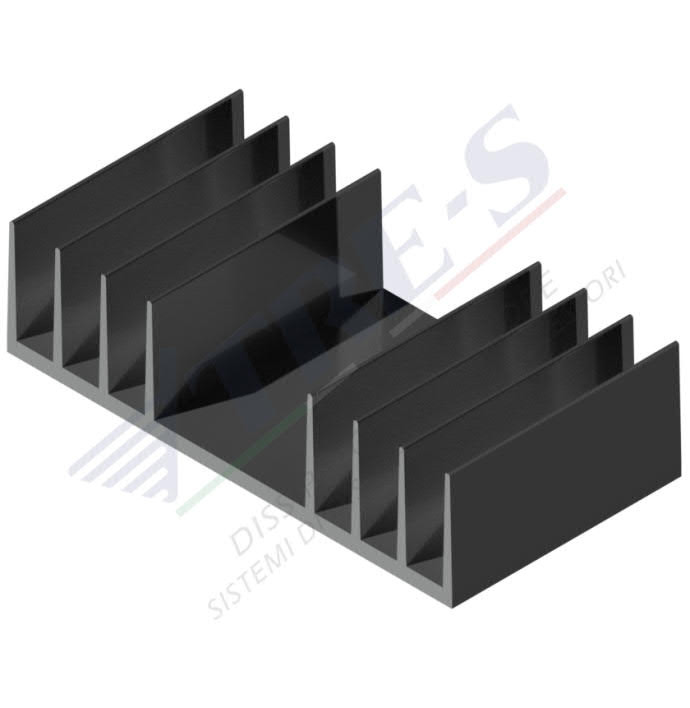

PRO1093
Profili per bassa e media potenza


Mechanical characteristics:

Height: 25.00 mm

Width: 97.00 mm

Weight: 1.49 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1027P
Profili per bassa e media potenza


Mechanical characteristics:

Height: 50.00 mm

Width: 100.00 mm

Weight: 5.16 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1265M
Profili per bassa e media potenza


Mechanical characteristics:

Height: 50.00 mm

Width: 100.00 mm

Weight: 4.20 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.4

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 1.25

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1026L
Profili per bassa e media potenza


Mechanical characteristics:

Height: 50.00 mm

Width: 100.00 mm

Weight: 3.66 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

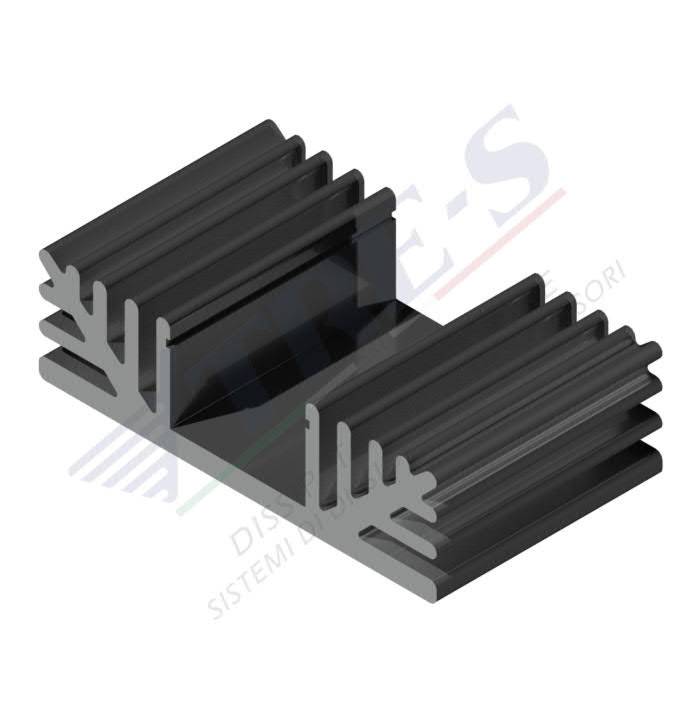

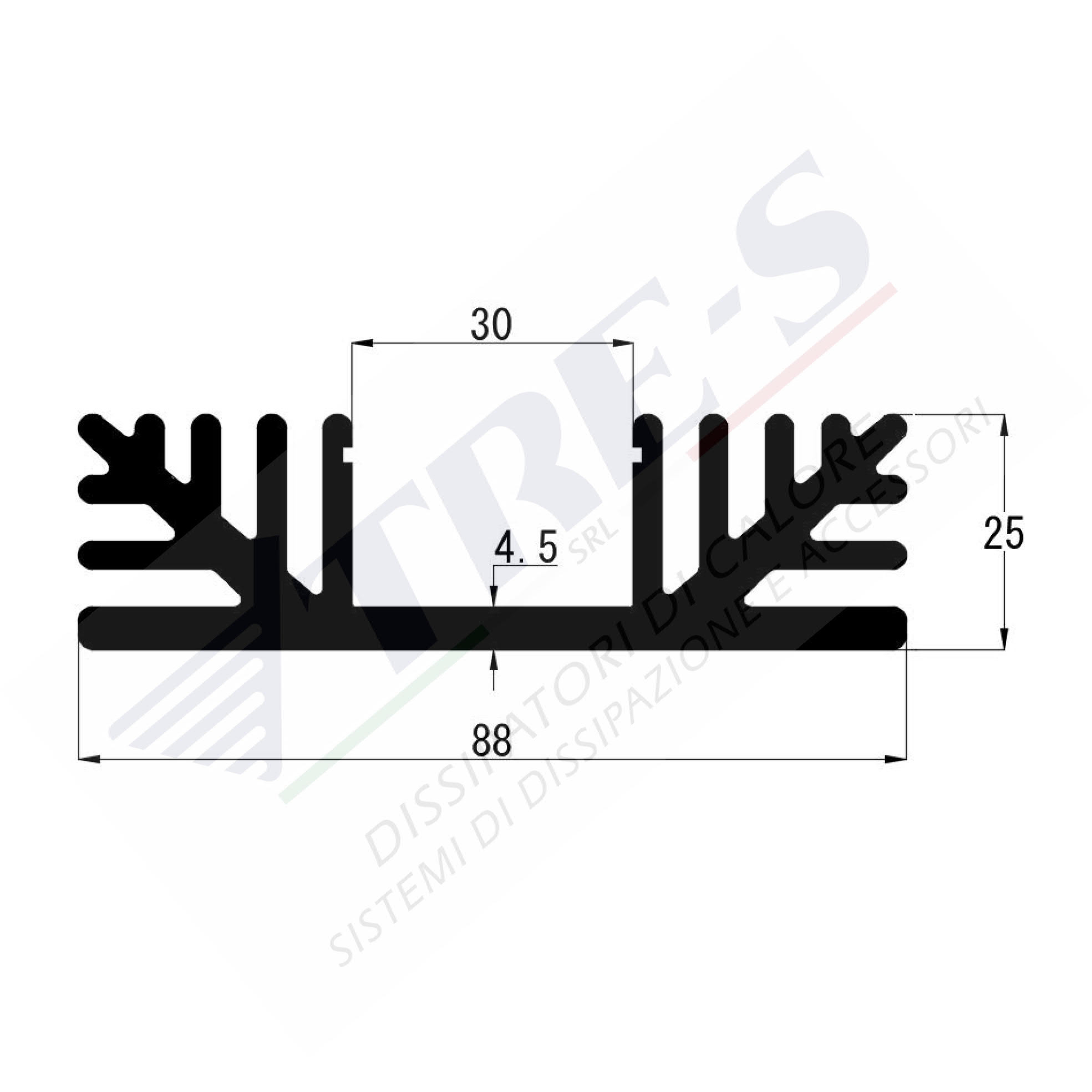

PRO1016
Profili per bassa e media potenza


Mechanical characteristics:

Height: 25.00 mm

Width: 88.00 mm

Weight: 2.83 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

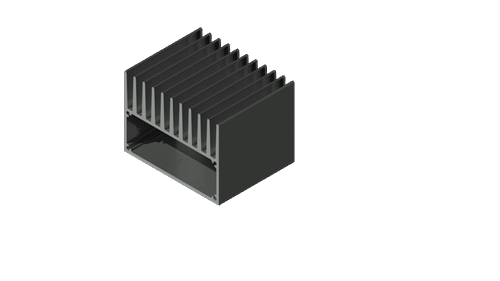

PRO1270
Profili per bassa e media potenza


Mechanical characteristics:

Height: 74.00 mm

Width: 100.00 mm

Weight: 5.33 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

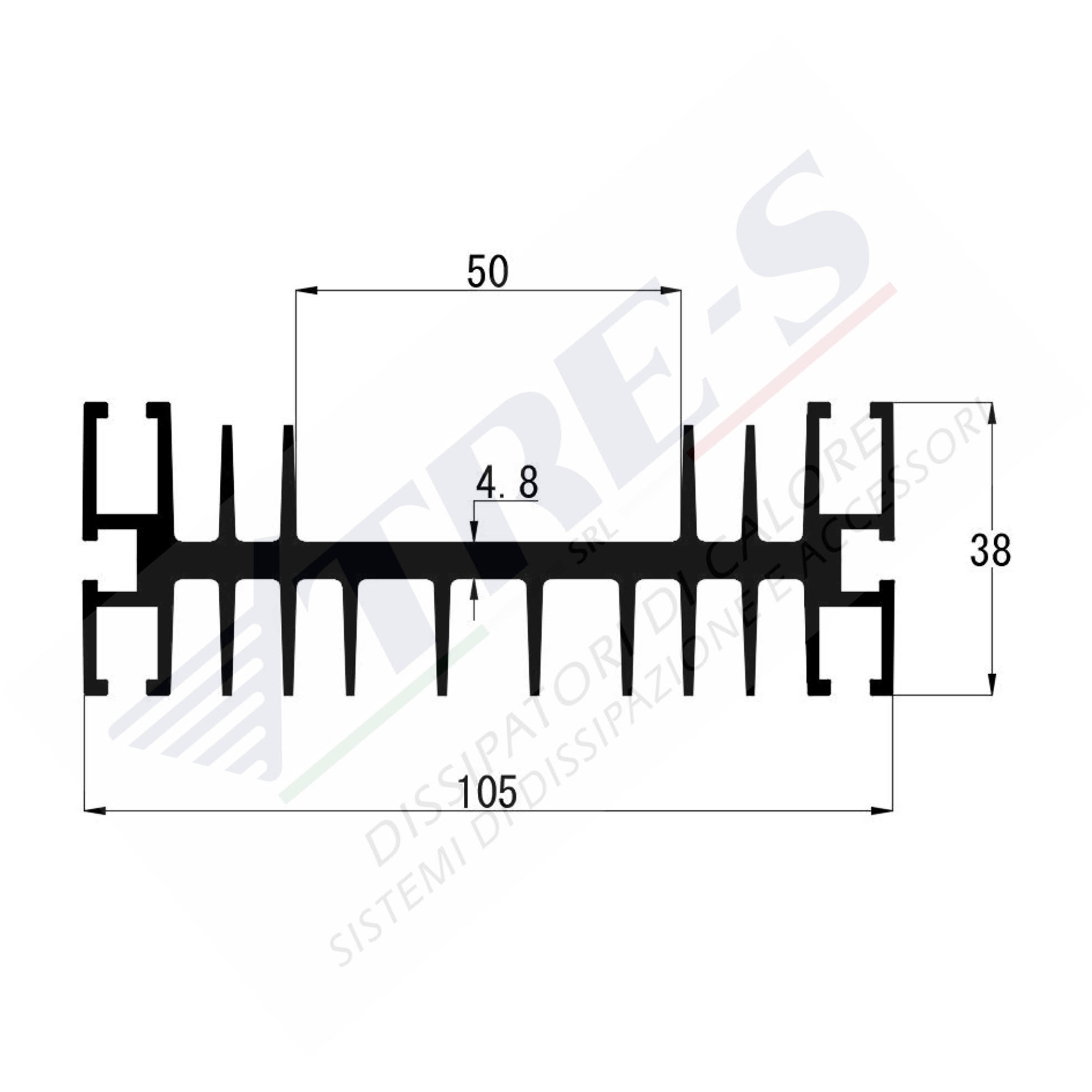

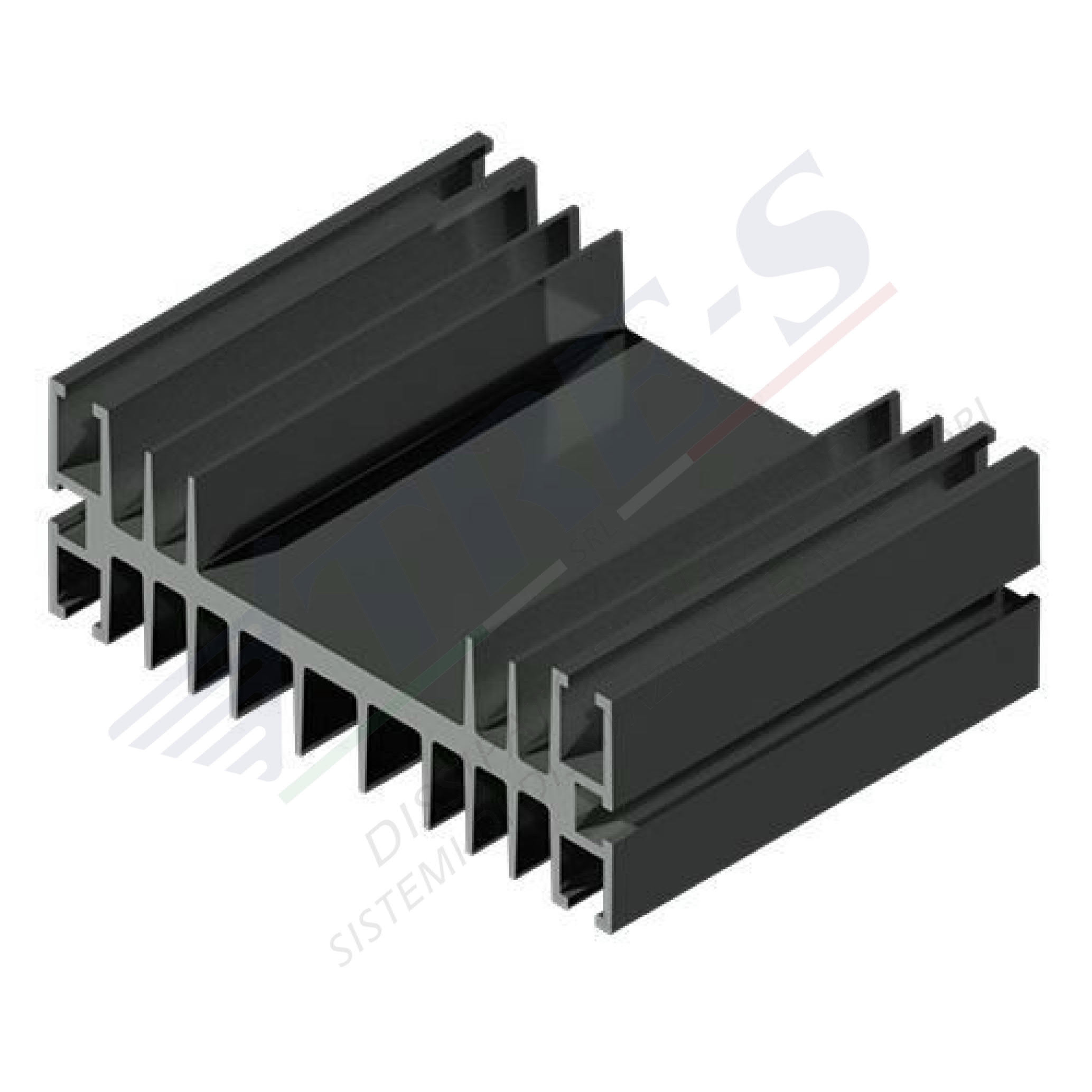

PRO1098
Profili per bassa e media potenza


Mechanical characteristics:

Height: 38.00 mm

Width: 105.00 mm

Weight: 2.72 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.41

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 1.31

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

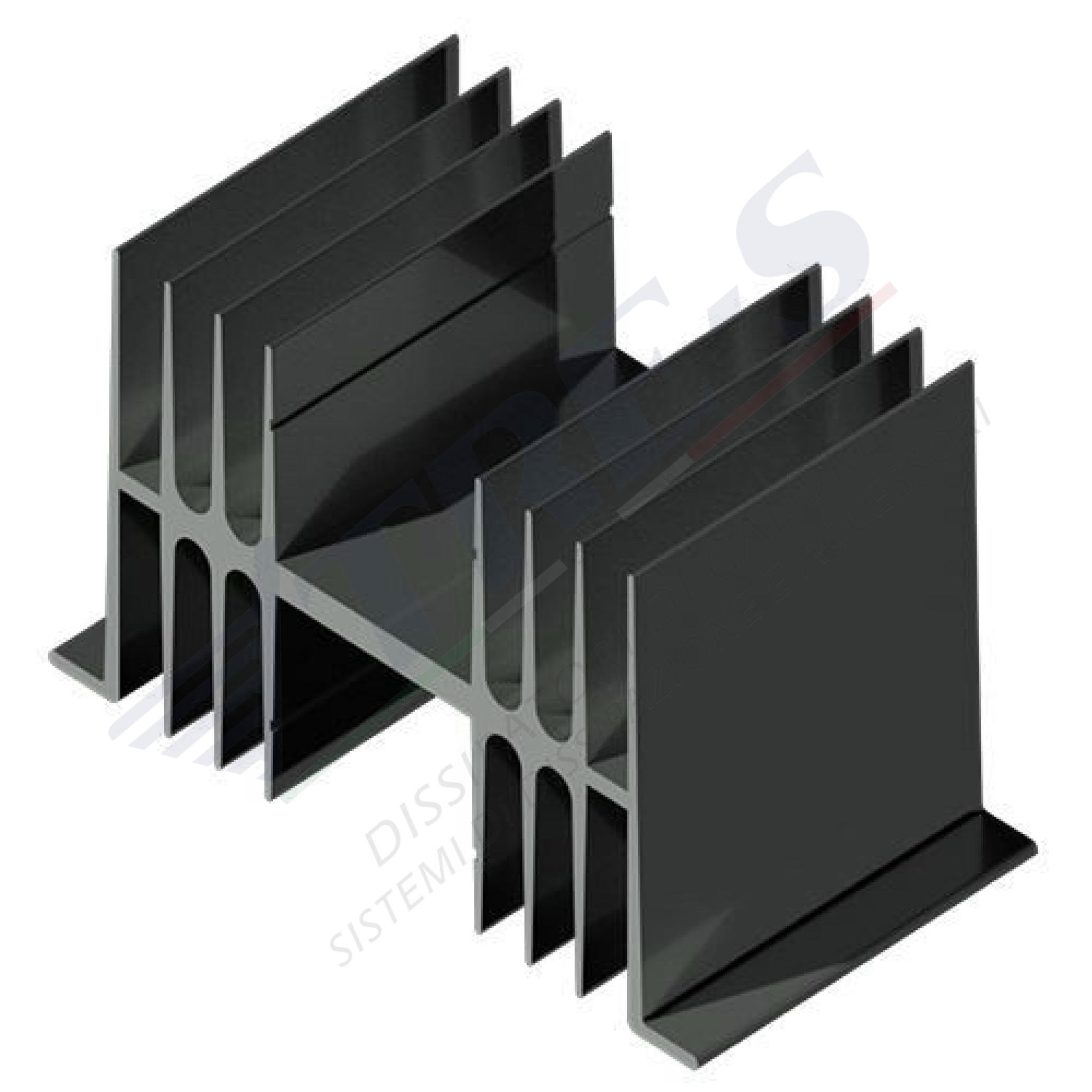

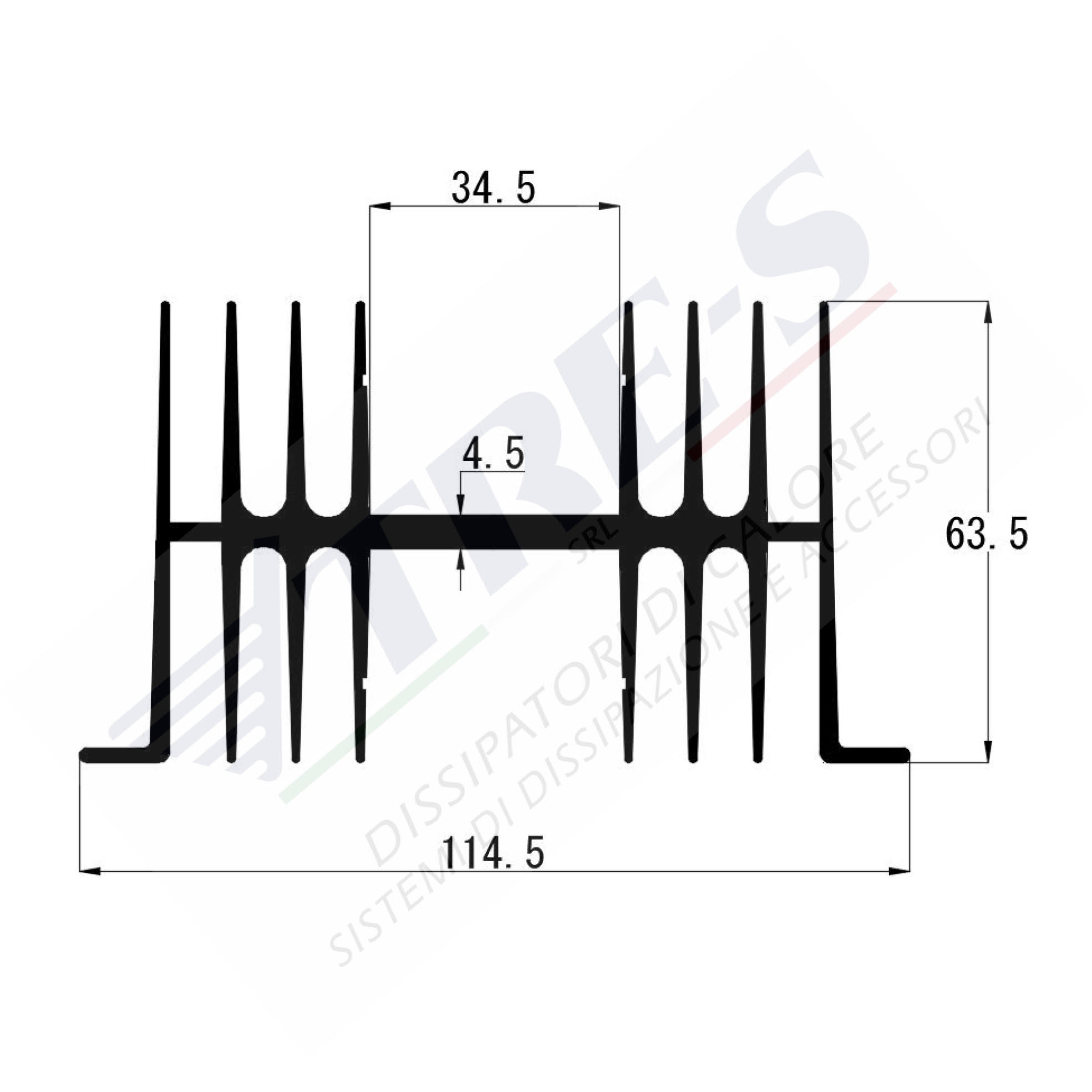

PRO1105
Profili per bassa e media potenza


Mechanical characteristics:

Height: 63.50 mm

Width: 114.50 mm

Weight: 3.46 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1102
Profili per bassa e media potenza


Mechanical characteristics:

Height: 33.50 mm

Width: 115.00 mm

Weight: 3.65 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.3

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 0.95

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1108
Profili per bassa e media potenza


Mechanical characteristics:

Height: 64.00 mm

Width: 120.00 mm

Weight: 4.14 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.35

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 1.01

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1055
Profili per bassa e media potenza


Mechanical characteristics:

Height: 50.00 mm

Width: 120.00 mm

Weight: 6.13 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

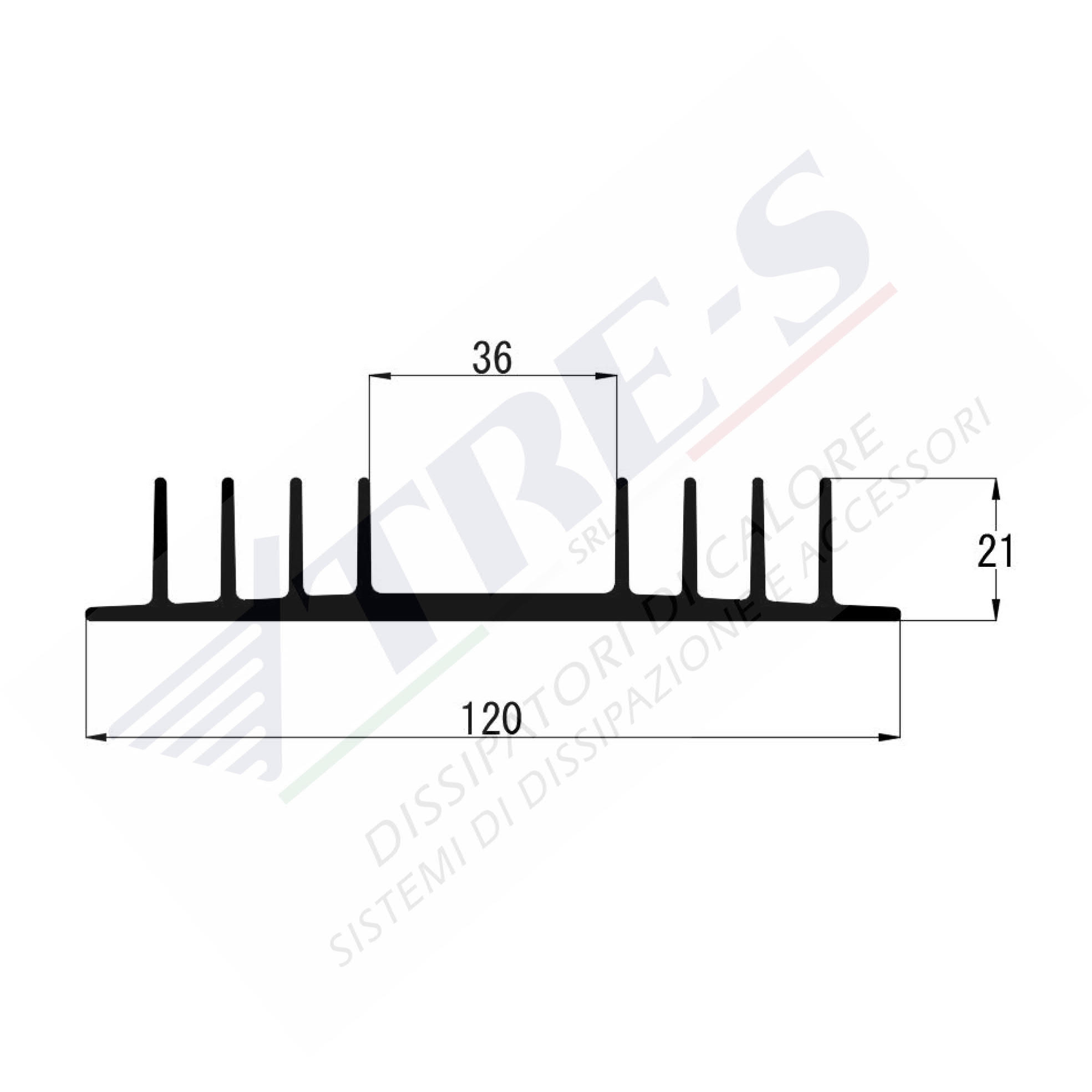

PRO1094
Profili per bassa e media potenza


Mechanical characteristics:

Height: 21.00 mm

Width: 120.00 mm

Weight: 1.73 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

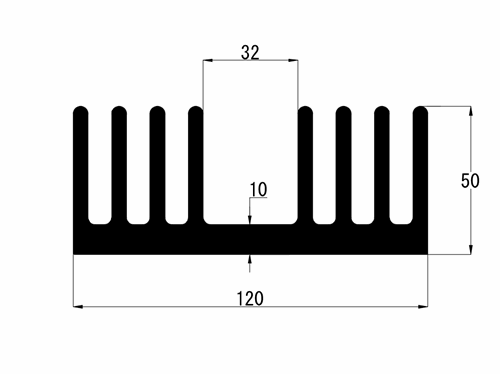

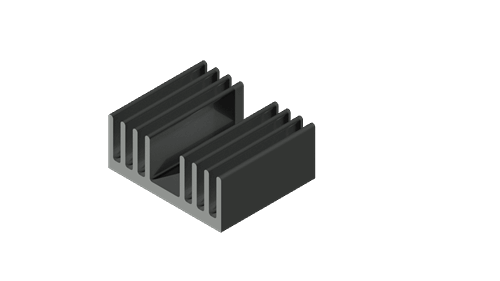

PRO1095
Profili per bassa e media potenza


Mechanical characteristics:

Height: 50.00 mm

Width: 120.00 mm

Weight: 7.55 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

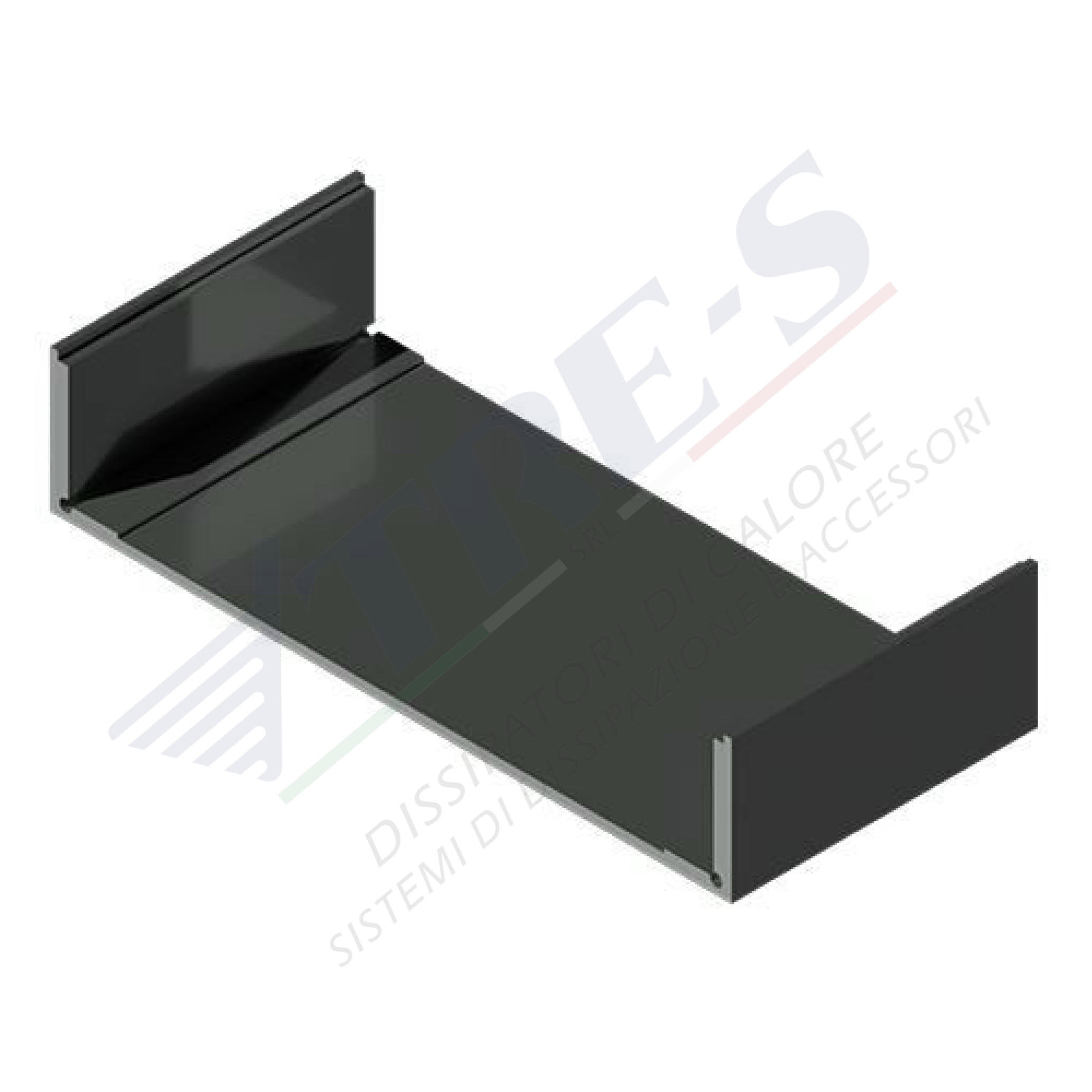

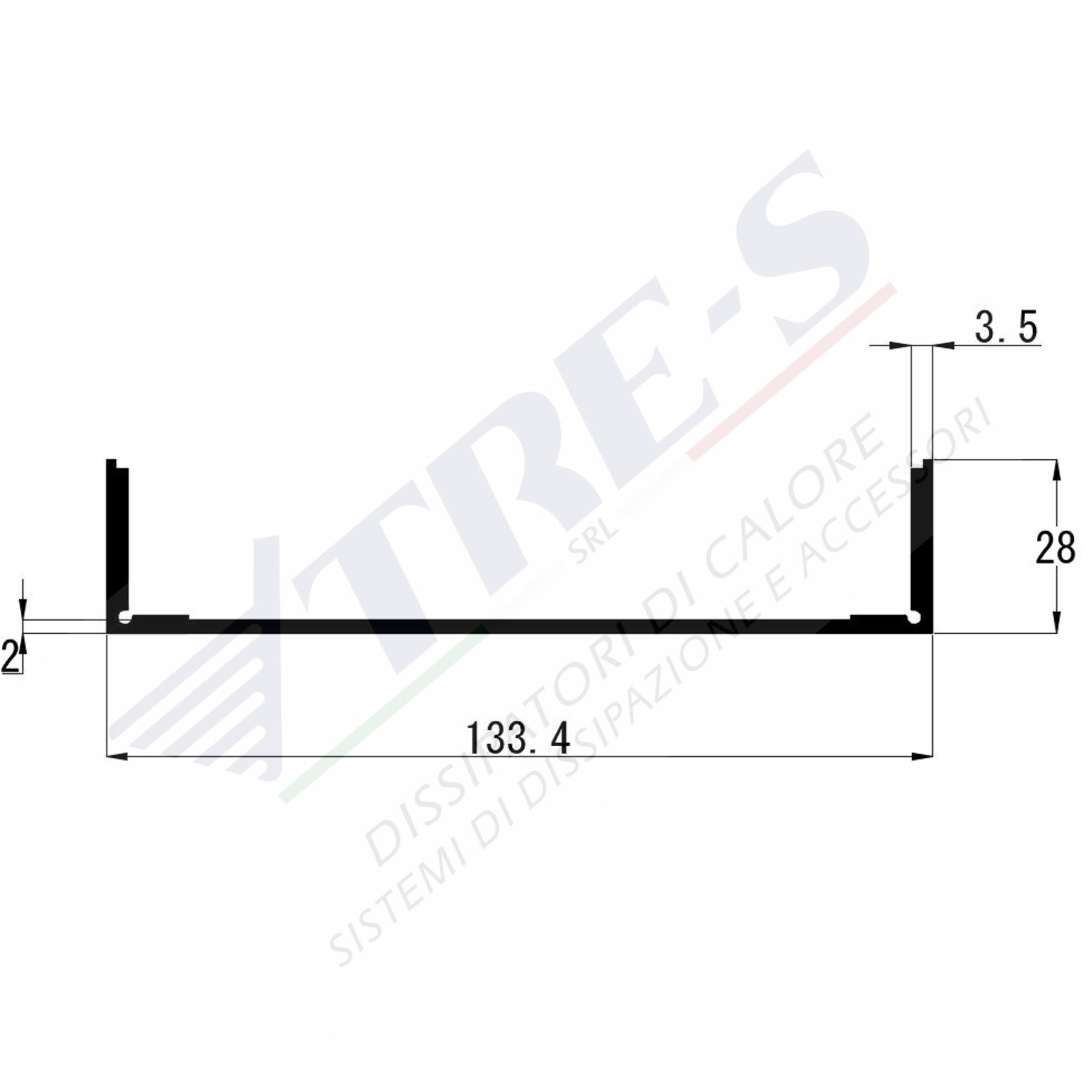

PRO1285
Profili per bassa e media potenza


Mechanical characteristics:

Height: 28.00 mm

Width: 133.40 mm

Weight: 1.24 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

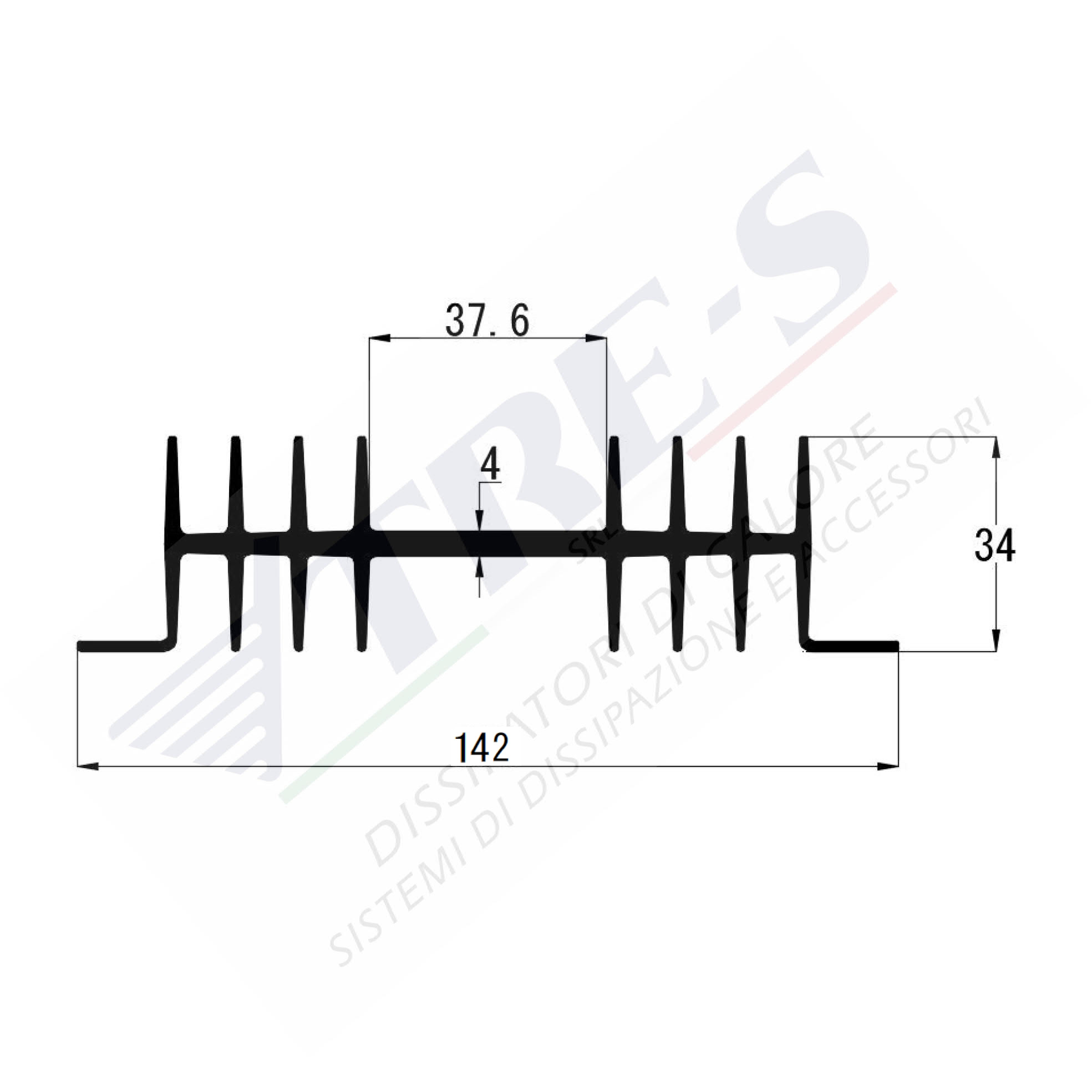

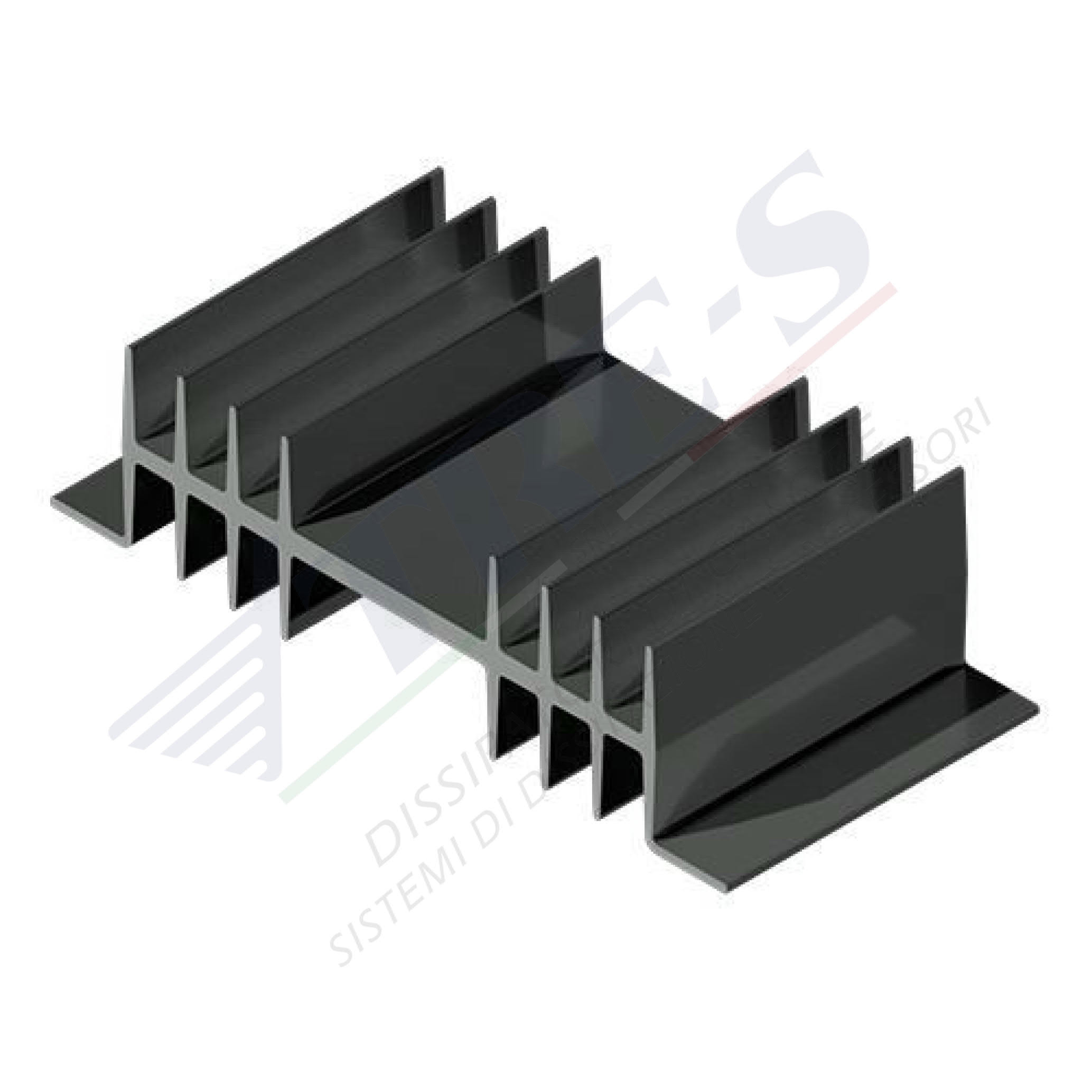

PRO1109
Profili per bassa e media potenza


Mechanical characteristics:

Height: 34.00 mm

Width: 142.00 mm

Weight: 2.34 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

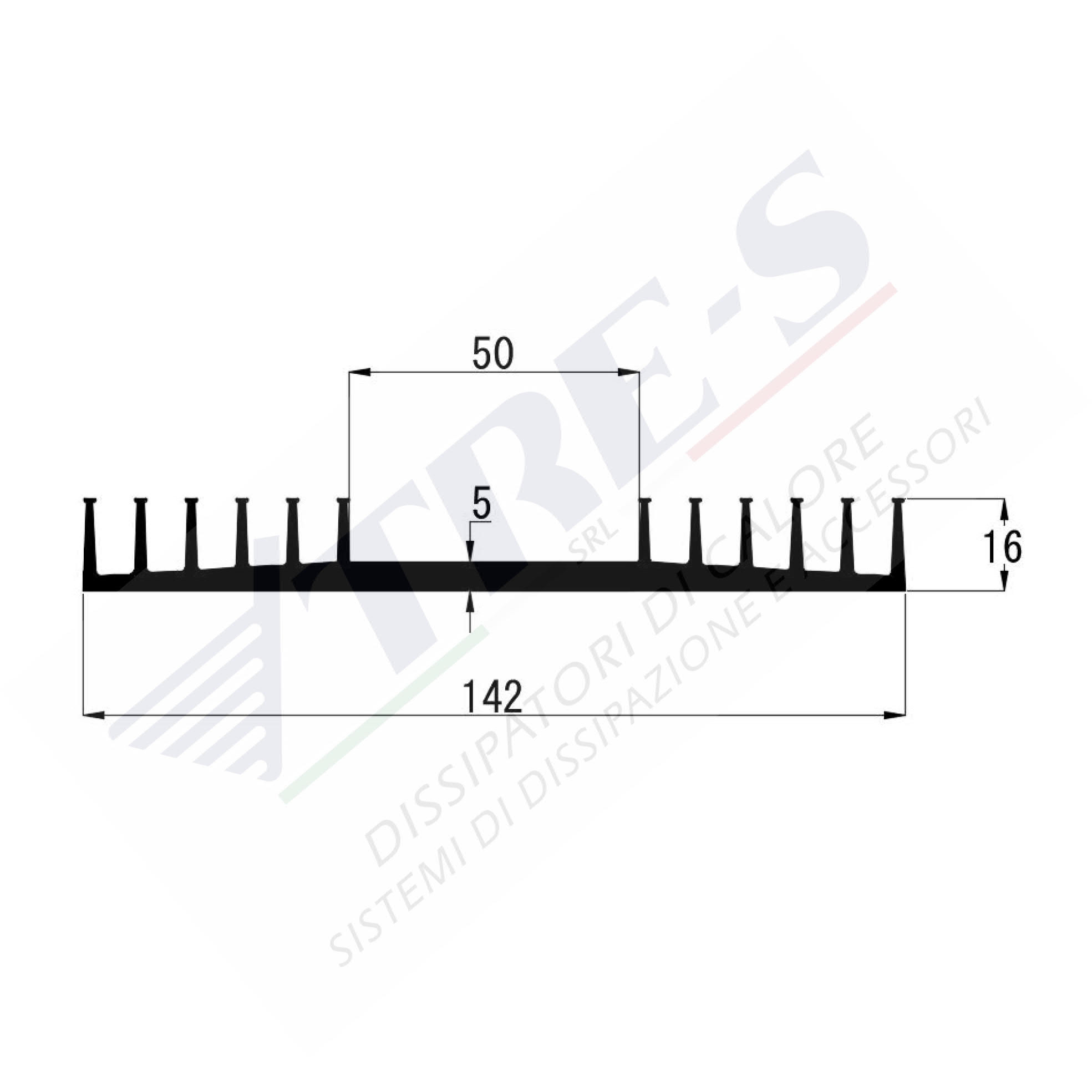

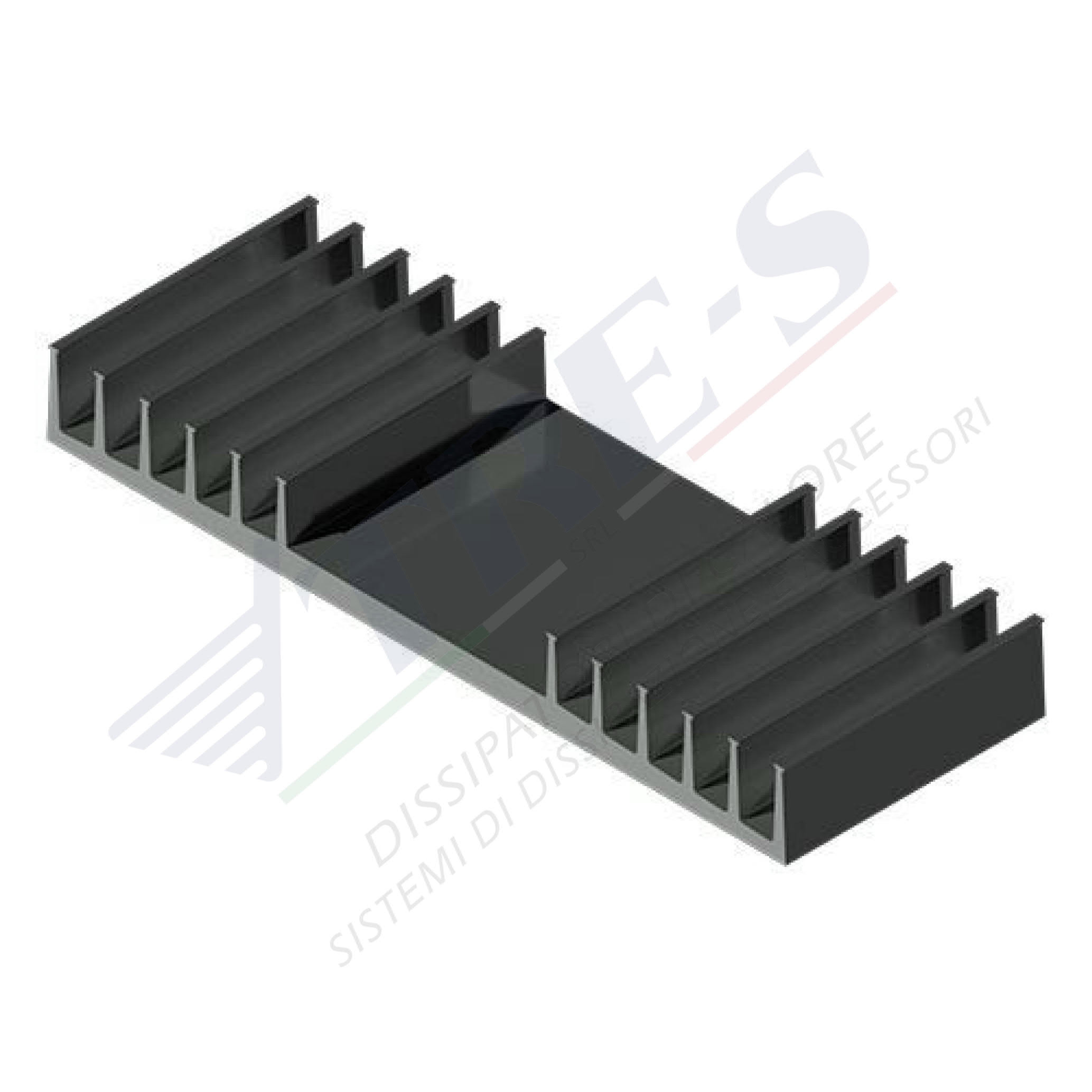

PRO1054
Profili per bassa e media potenza


Mechanical characteristics:

Height: 16.00 mm

Width: 142.00 mm

Weight: 2.19 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1275
Profili per bassa e media potenza


Mechanical characteristics:

Height: 23.50 mm

Width: 150.00 mm

Weight: 3.09 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1258
Profili per bassa e media potenza


Mechanical characteristics:

Height: 25.00 mm

Width: 199.00 mm

Weight: 4.79 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

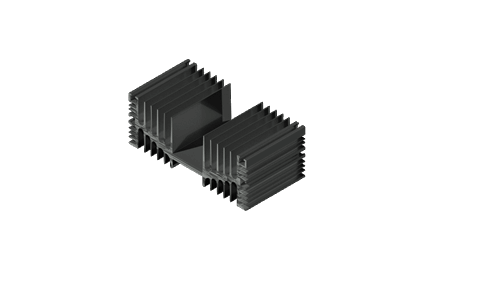

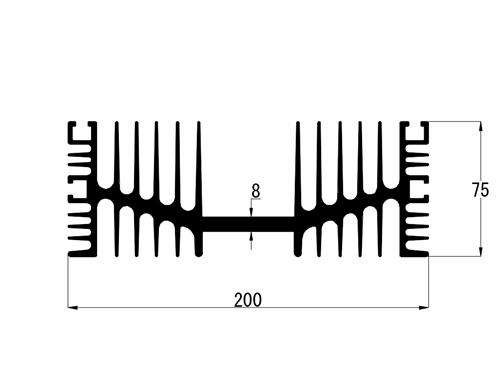

PRO1130
Profili per bassa e media potenza


Mechanical characteristics:

Height: 75.00 mm

Width: 200.00 mm

Weight: 11.22 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Questo sito web utilizza i cookies per migliorare l'esperienza dell'utente. L'utente è consapevole del fatto che, se naviga sul nostro sito web, implicitamente accetta l'utilizzo dei cookies.
