Profiles for disc cells


Heat sinks that are used to build three-phase bridges with natural air cooling are also made with different types of heat sinks and different types of components. By using modules, heatsinks of up to 700A can be used, and by using disc SCRs, 1900A can be achieved.

Base
Assembled
Plug

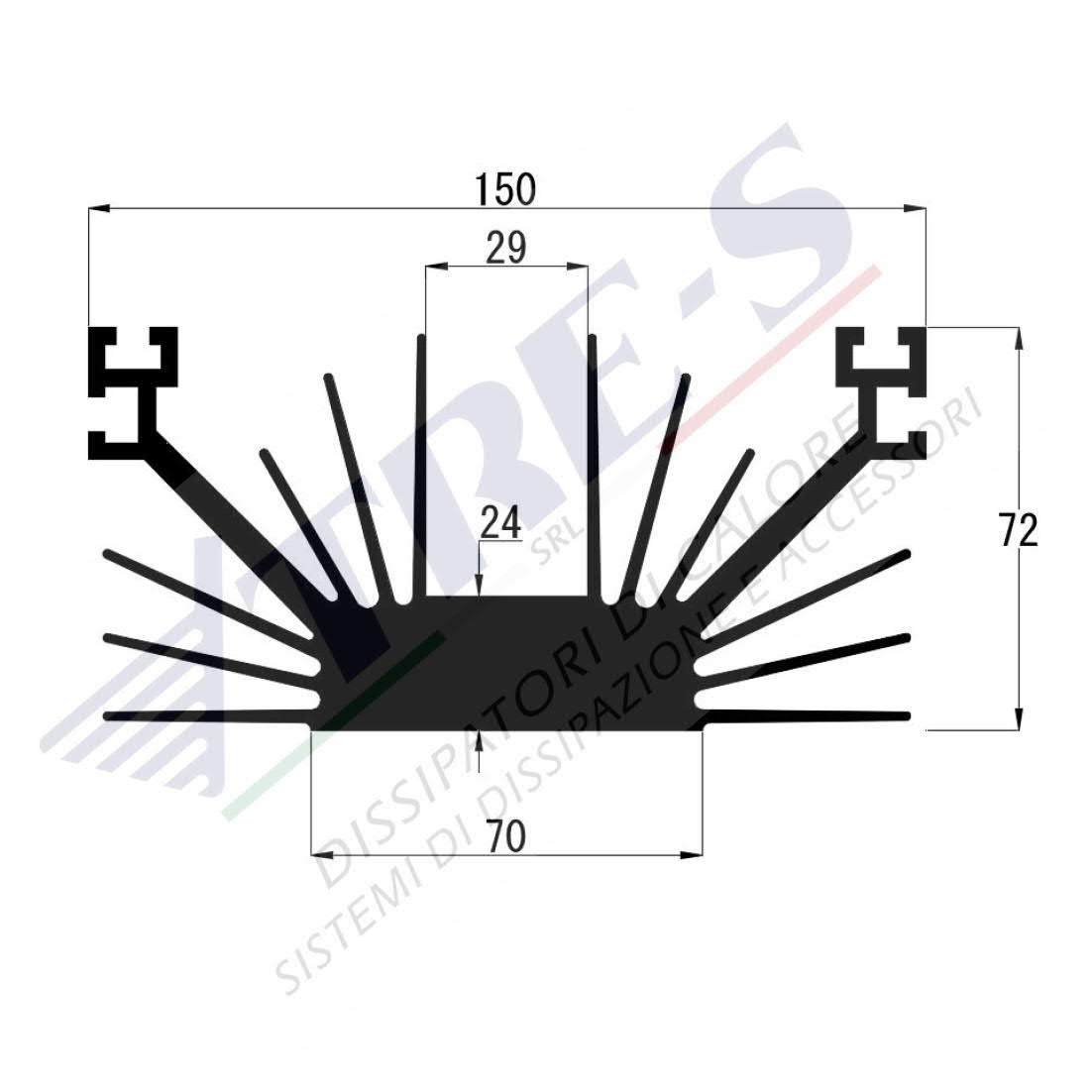

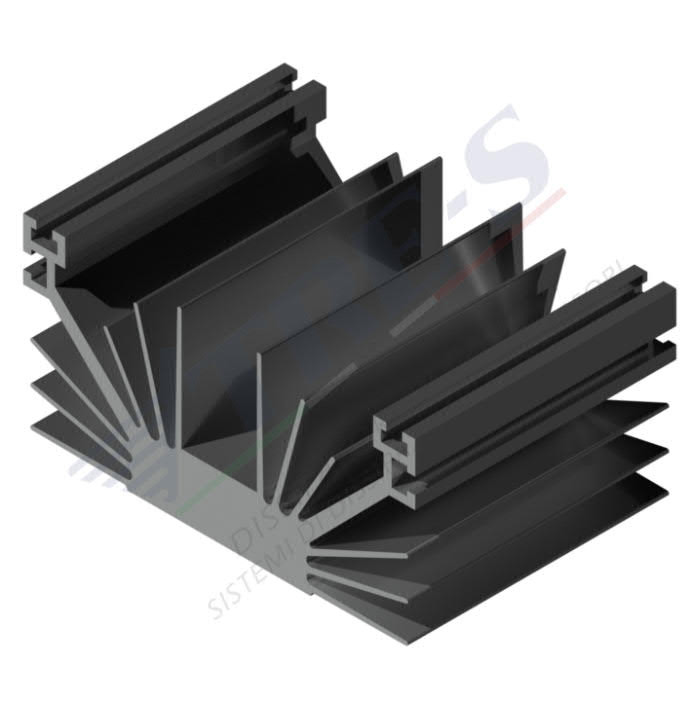

PRO1139
Profiles for disc cells


Mechanical characteristics:

Height: 72.00 mm

Width: 150.00 mm

Weight: 8.86 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.219

Sample length: 150.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 0.67

Sample length: 150.00mm

Applied power: 0.00W

Base
Assembled
Plug

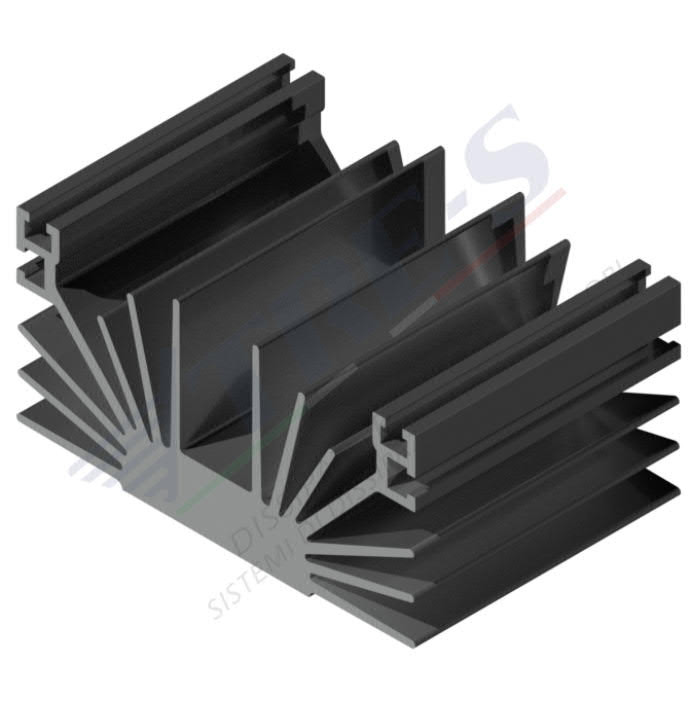

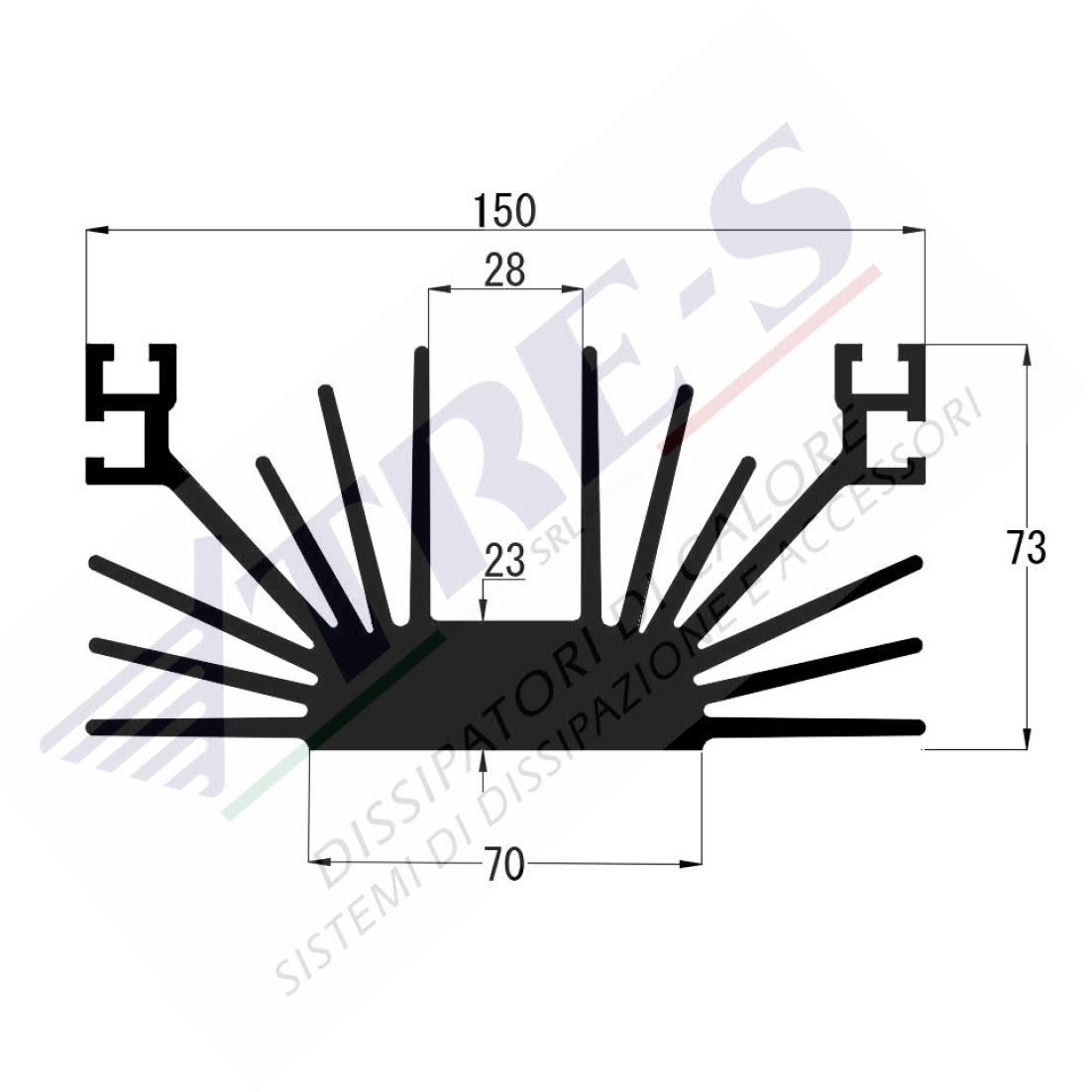

PRO1140
Profiles for disc cells


Mechanical characteristics:

Height: 73.00 mm

Width: 150.00 mm

Weight: 10.15 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

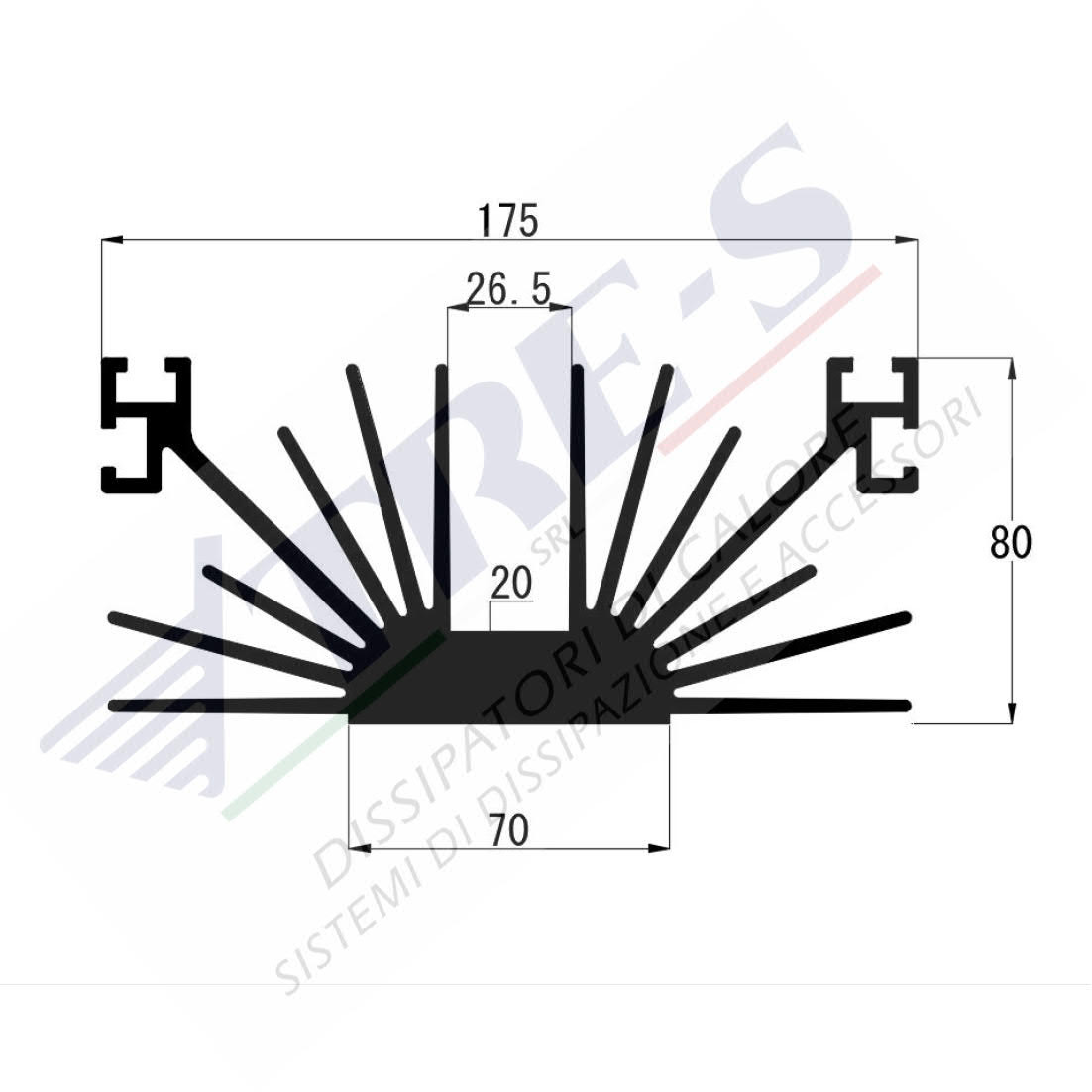

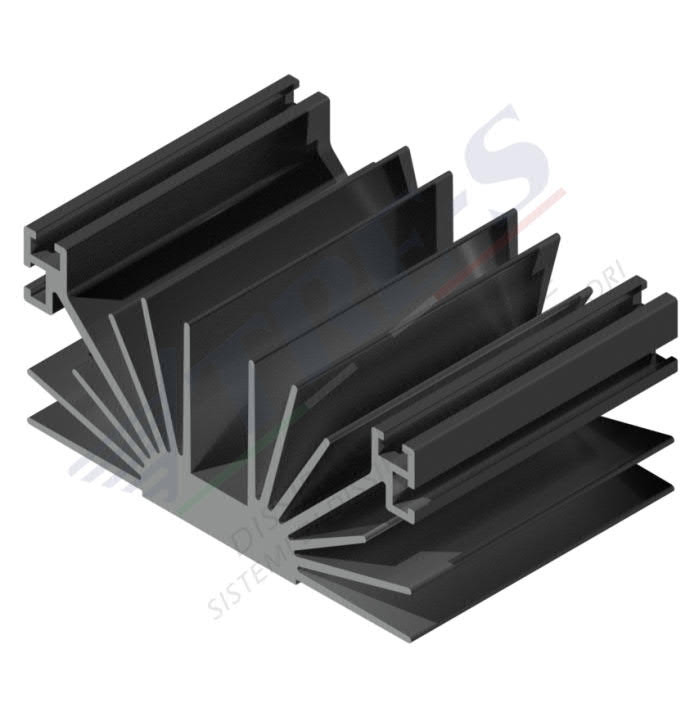

PRO1141
Profiles for disc cells


Mechanical characteristics:

Height: 80.00 mm

Width: 175.00 mm

Weight: 11.58 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

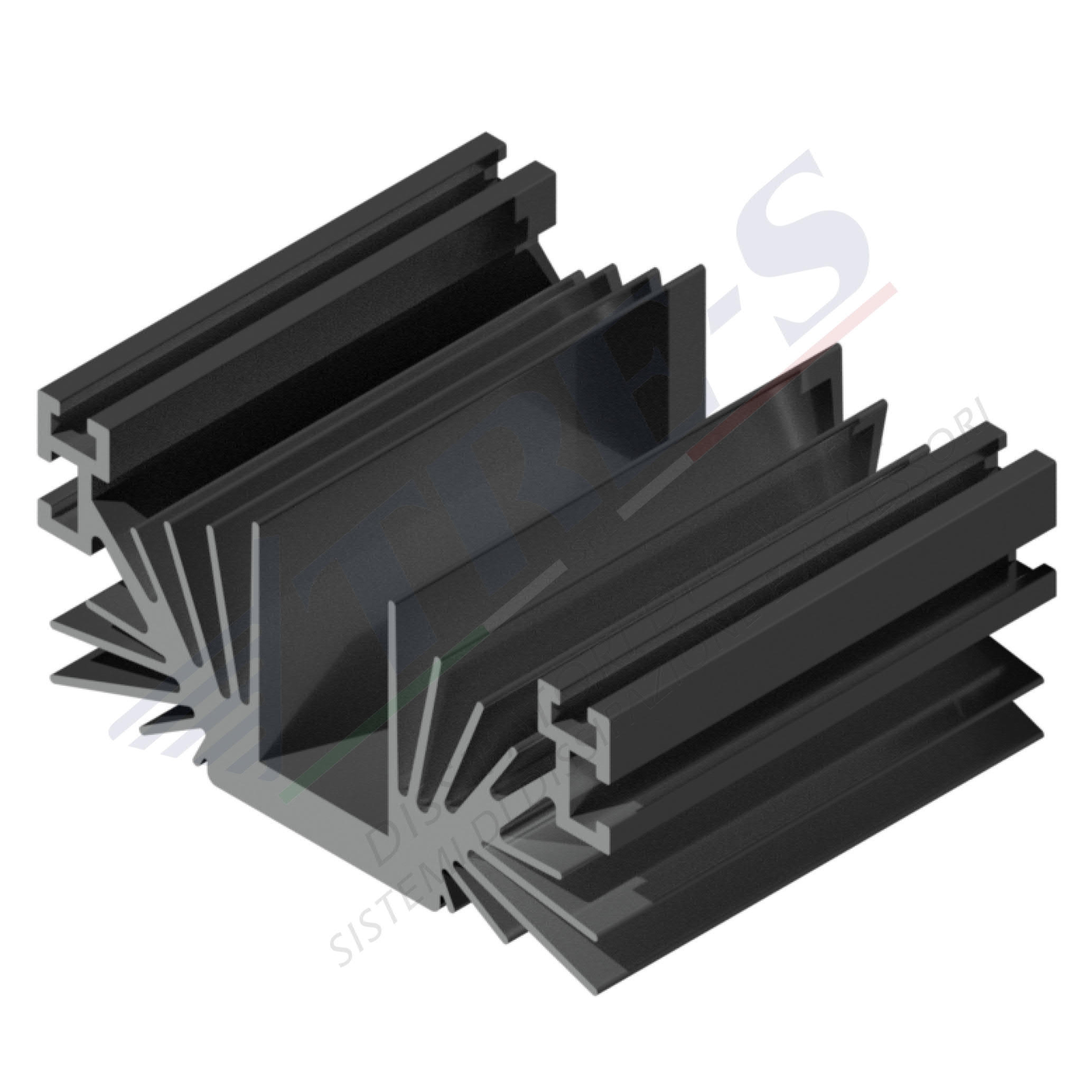

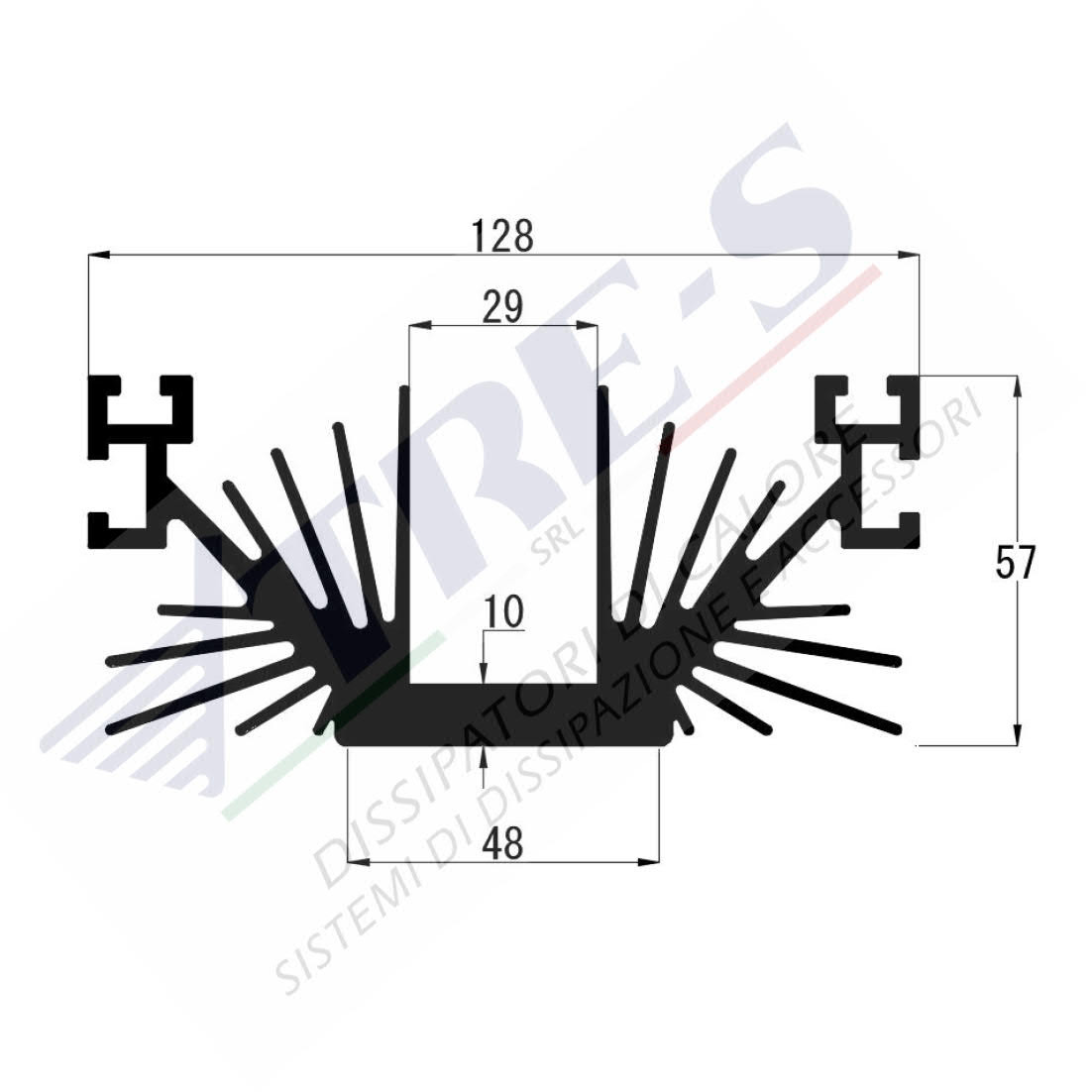

PRO1072
Profiles for disc cells


Mechanical characteristics:

Height: 57.00 mm

Width: 128.00 mm

Weight: 5.95 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.248

Sample length: 150.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 0.74

Sample length: 150.00mm

Applied power: 0.00W

Base
Assembled
Plug

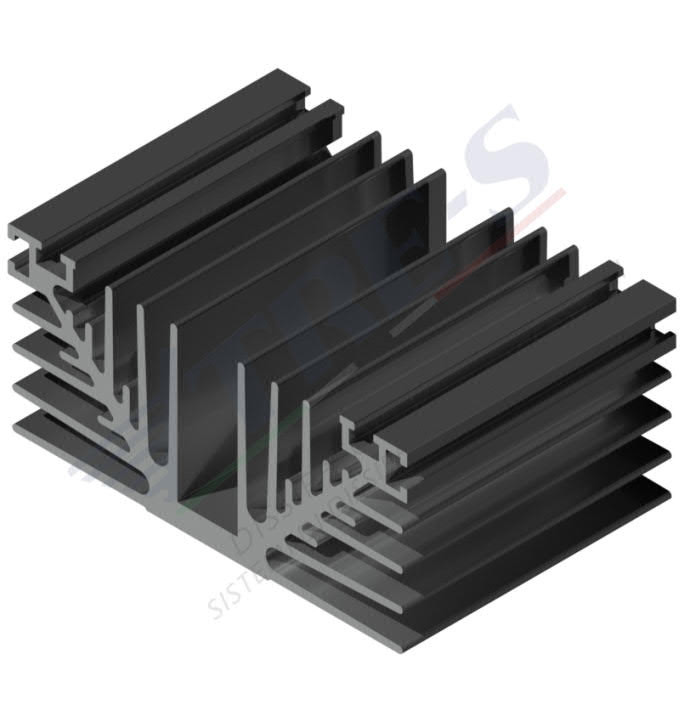

PRO1142
Profiles for disc cells


Mechanical characteristics:

Height: 80.00 mm

Width: 178.00 mm

Weight: 12.78 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.146

Sample length: 200.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 0.43

Sample length: 200.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1143
Profiles for disc cells


Mechanical characteristics:

Height: 86.00 mm

Width: 200.00 mm

Weight: 19.21 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

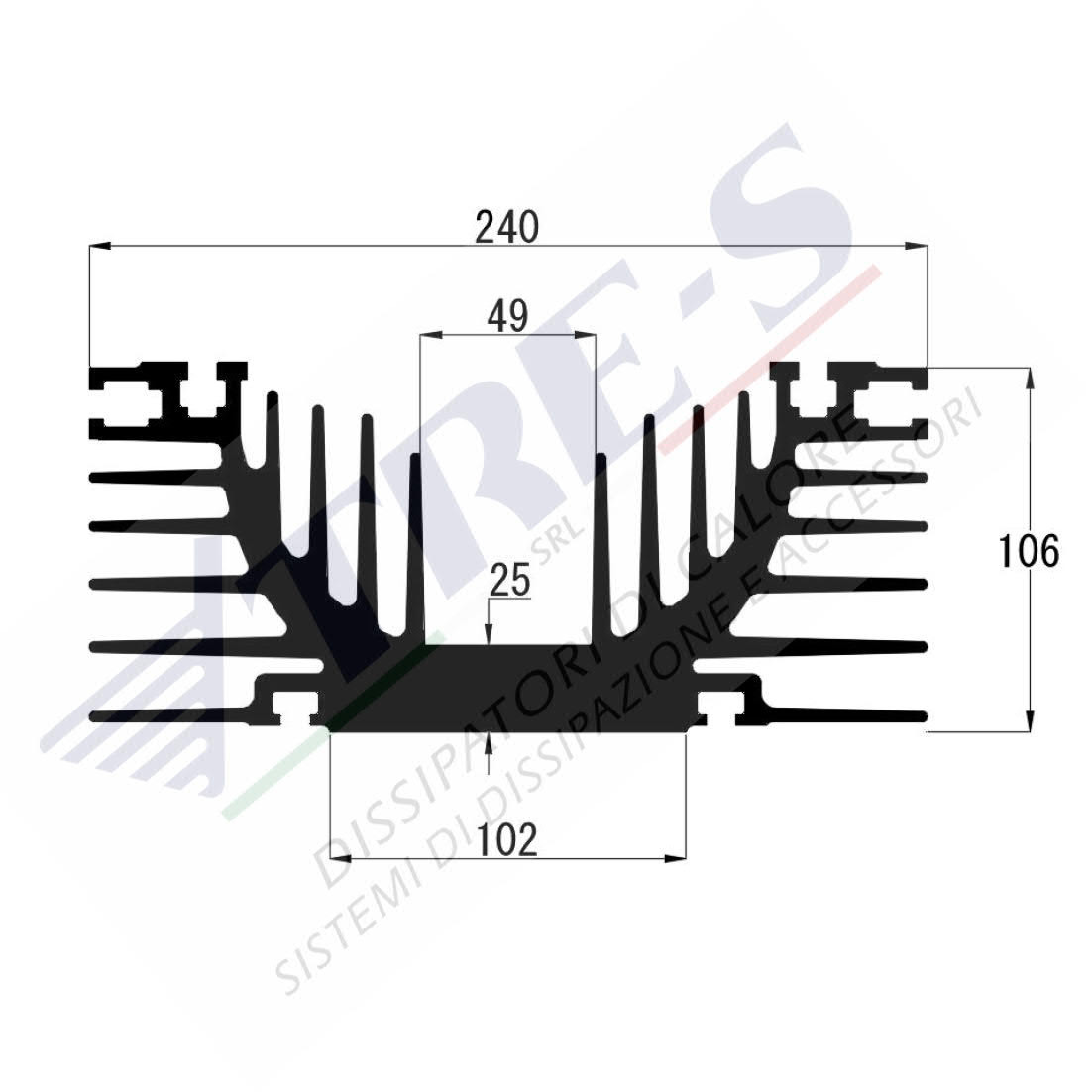

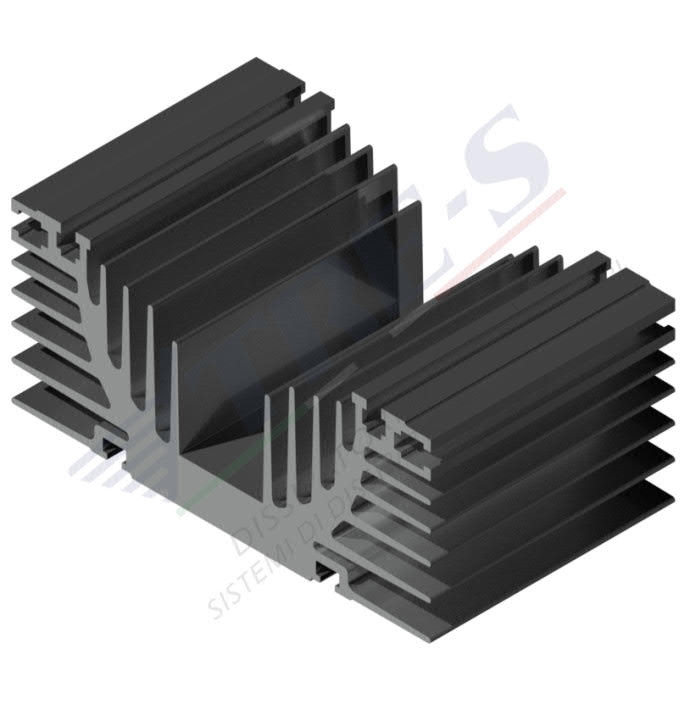

PRO1144
Profiles for disc cells


Mechanical characteristics:

Height: 106.00 mm

Width: 240.00 mm

Weight: 25.25 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

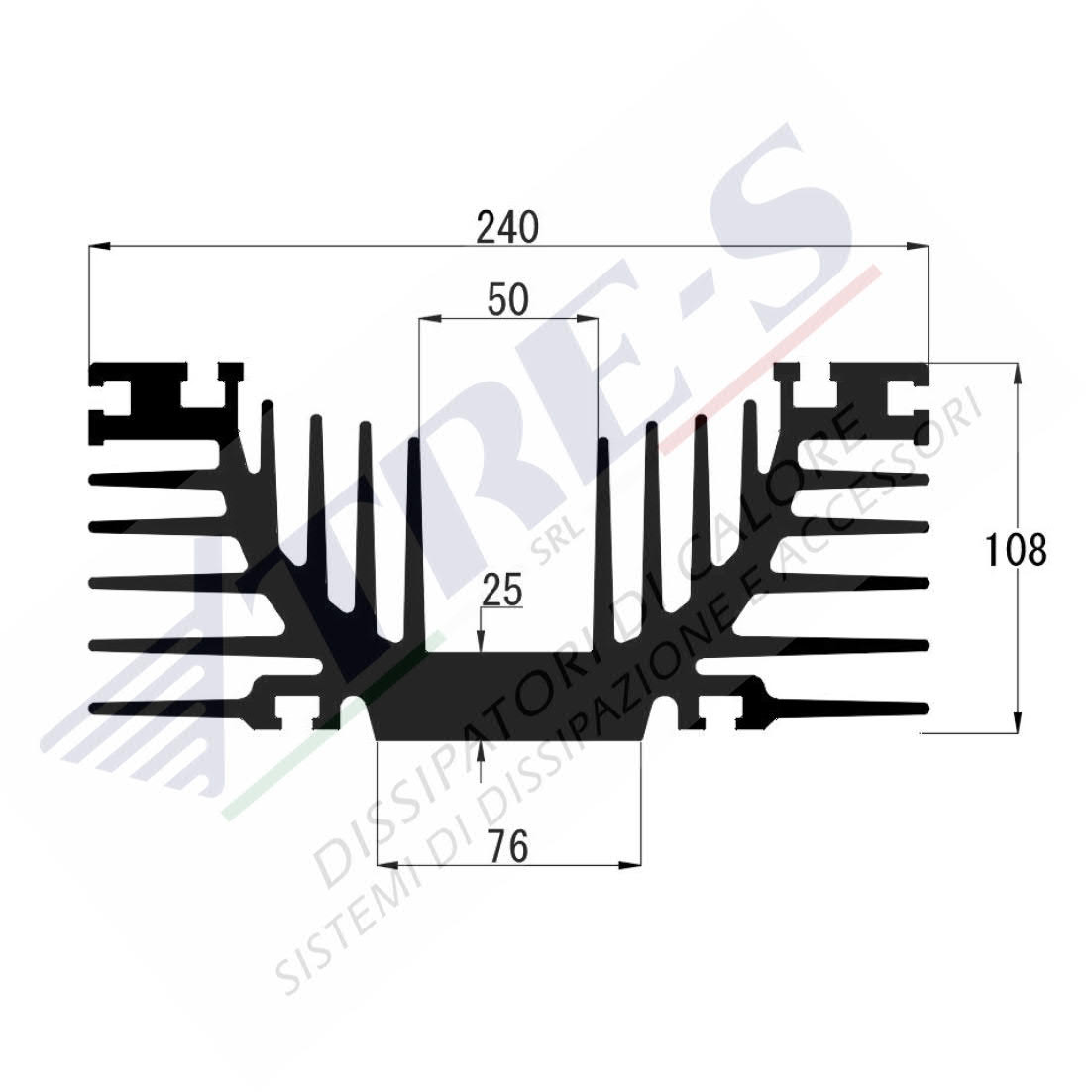

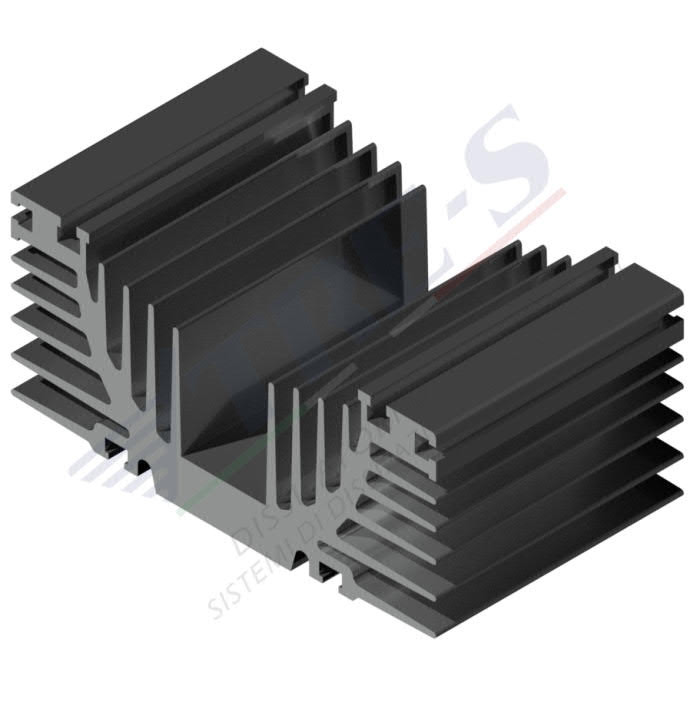

PRO1145
Profiles for disc cells


Mechanical characteristics:

Height: 108.00 mm

Width: 240.00 mm

Weight: 26.09 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.108

Sample length: 250.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 0.306

Sample length: 250.00mm

Applied power: 0.00W

Base
Assembled
Plug

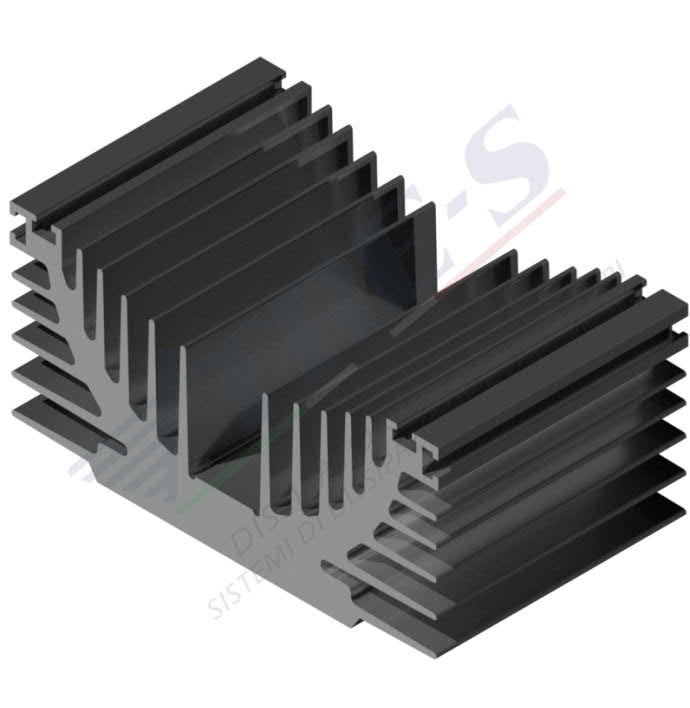

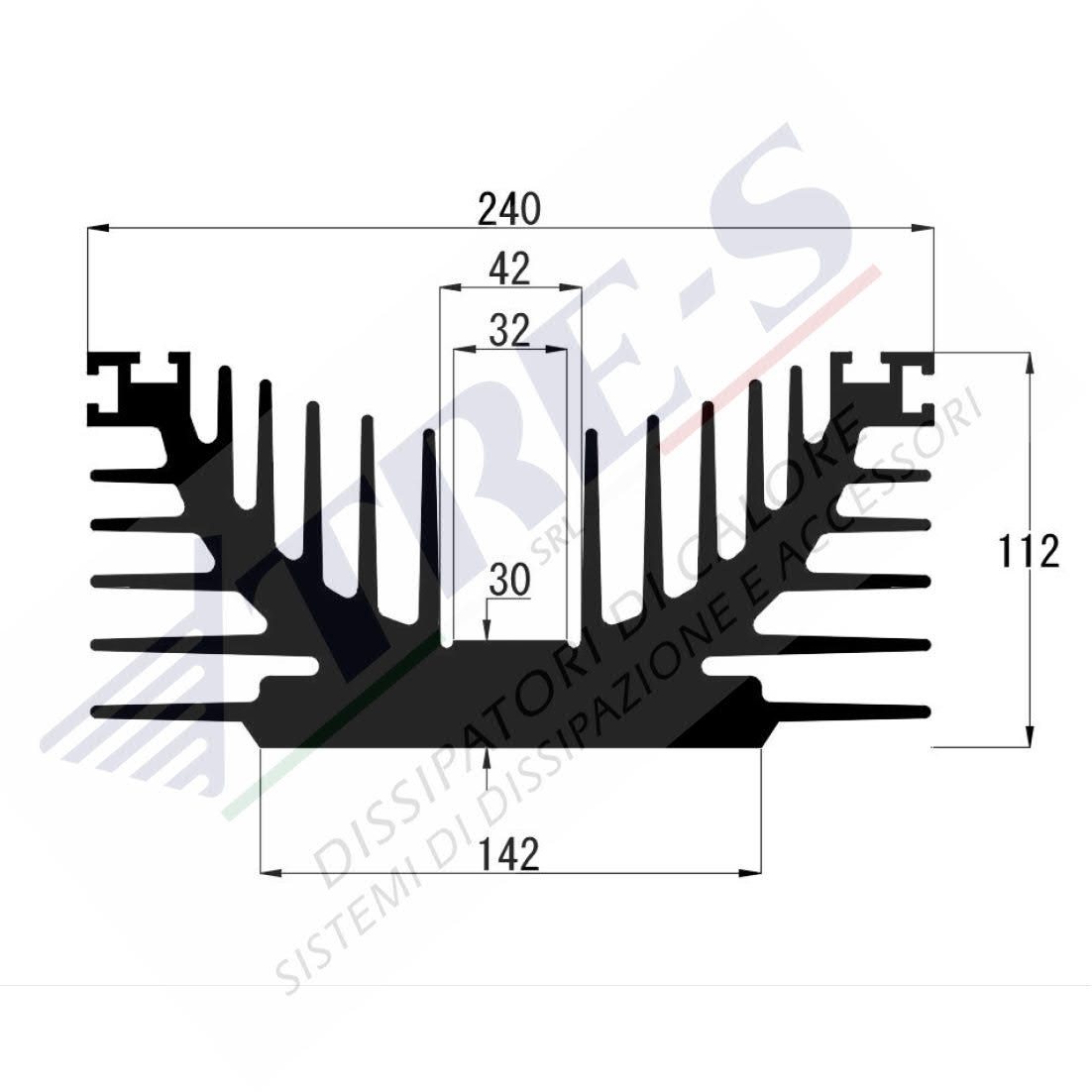

PRO1146
Profiles for disc cells


Mechanical characteristics:

Height: 112.00 mm

Width: 240.00 mm

Weight: 29.73 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.109

Sample length: 250.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 0.33

Sample length: 250.00mm

Applied power: 0.00W

Base
Assembled
Plug

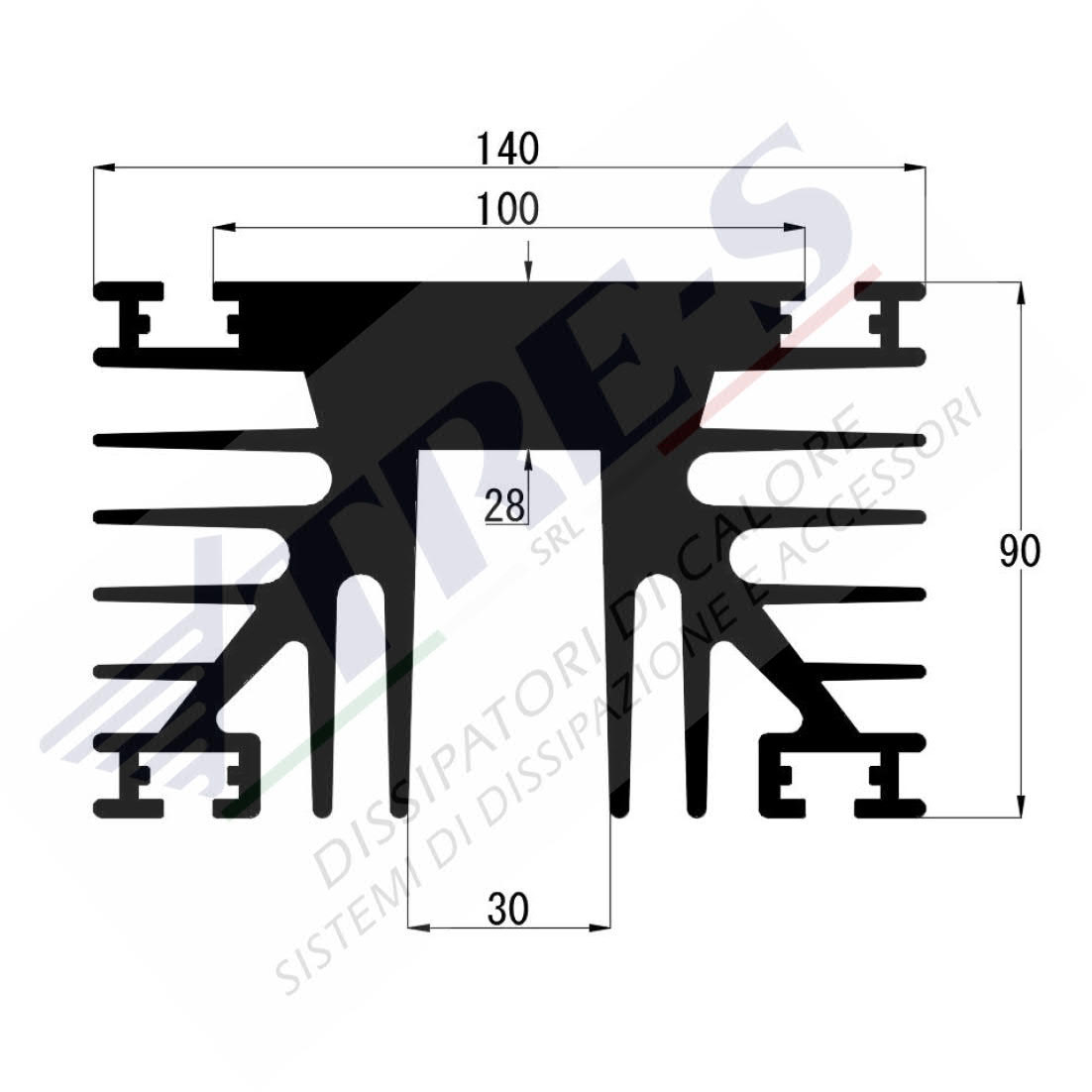

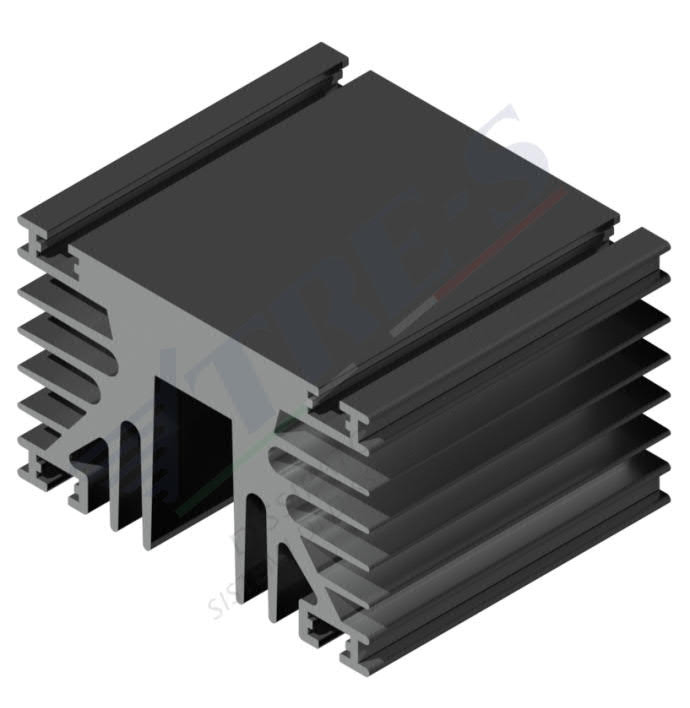

PRO1138
Profiles for disc cells


Mechanical characteristics:

Height: 90.00 mm

Width: 140.00 mm

Weight: 14.86 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.213

Sample length: 150.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 0.64

Sample length: 150.00mm

Applied power: 0.00W

Base
Assembled
Plug

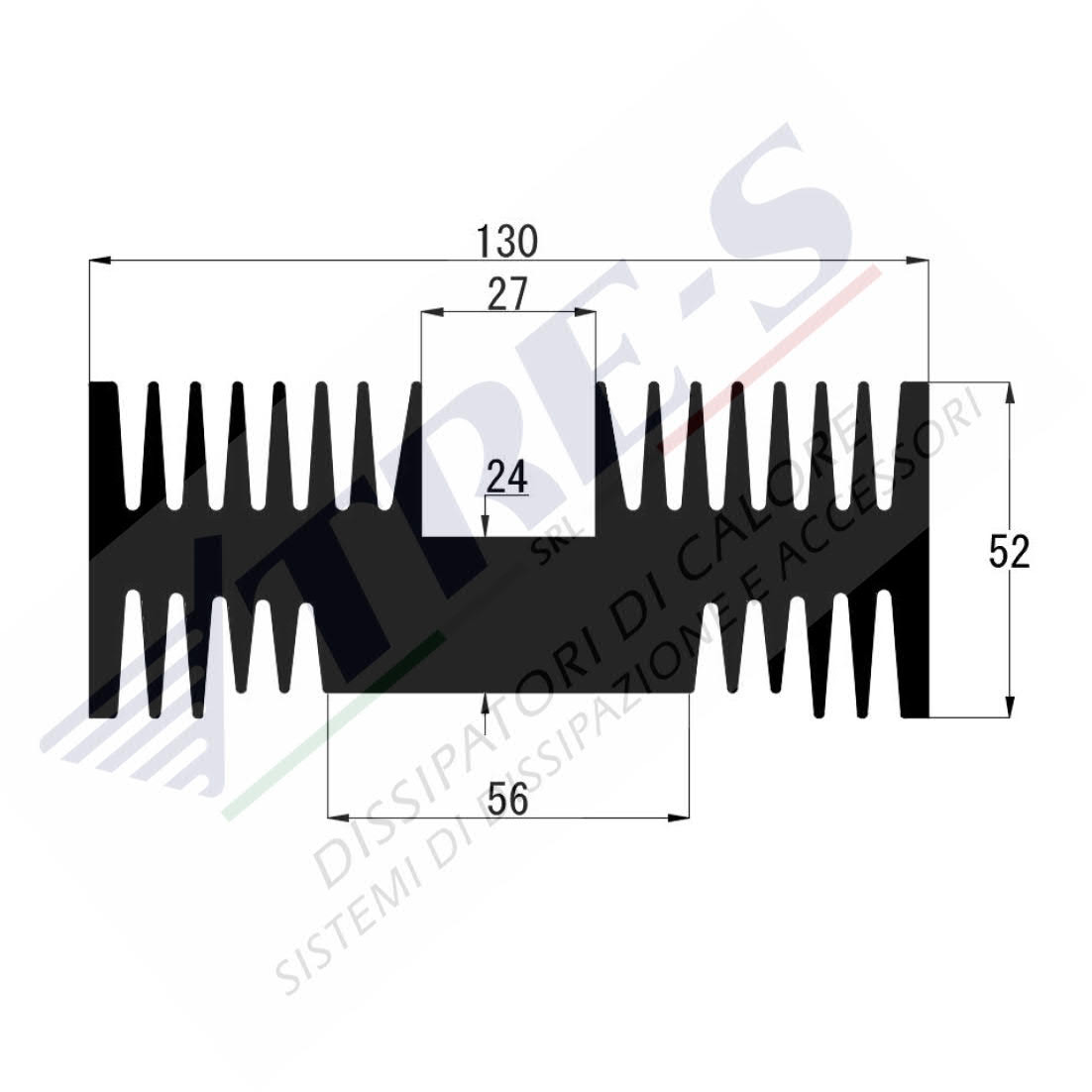

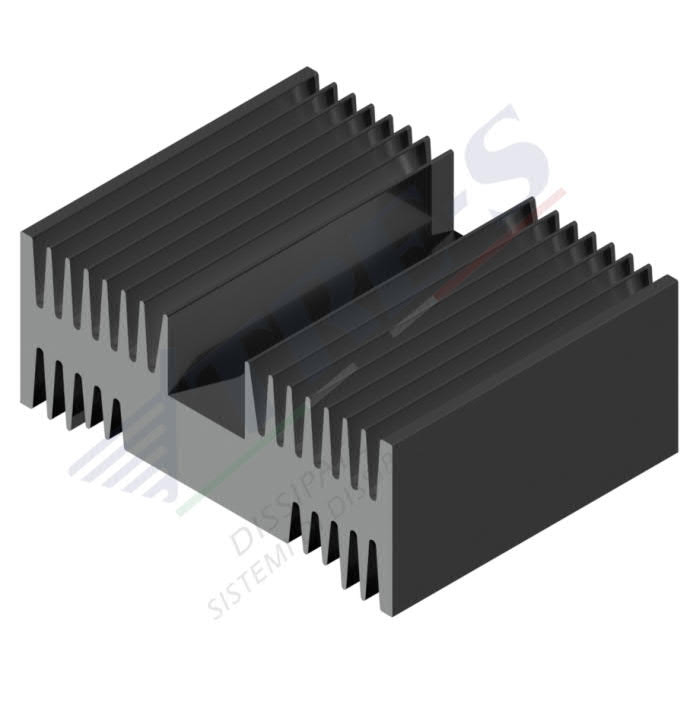

PRO1126
Profiles for disc cells


Mechanical characteristics:

Height: 52.00 mm

Width: 130.00 mm

Weight: 10.91 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.258

Sample length: 150.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 0.784

Sample length: 150.00mm

Applied power: 0.00W

Base
Assembled
Plug

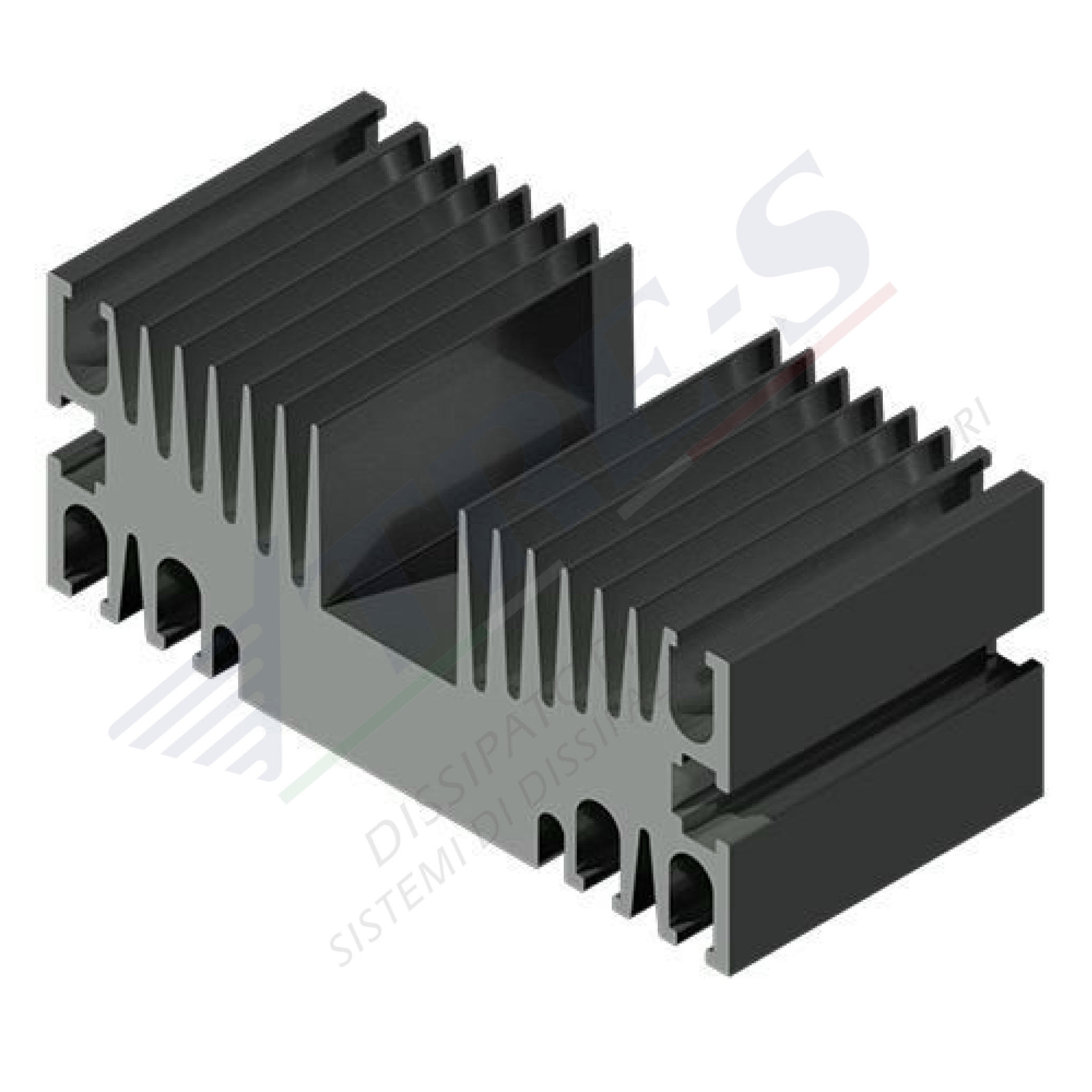

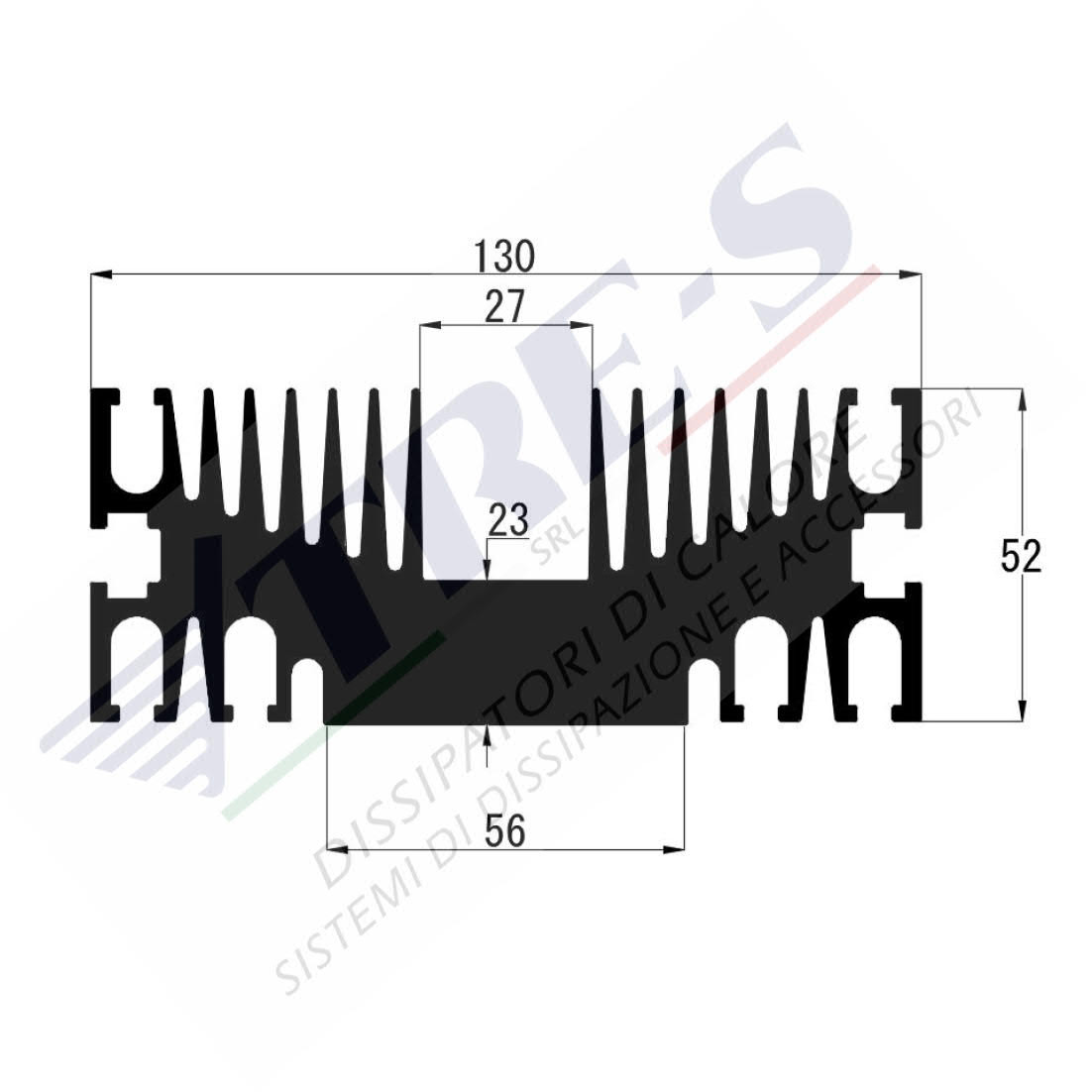

PRO1127
Profiles for disc cells


Mechanical characteristics:

Height: 52.00 mm

Width: 130.00 mm

Weight: 10.03 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.238

Sample length: 150.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 0.672

Sample length: 150.00mm

Applied power: 0.00W

Base
Assembled
Plug

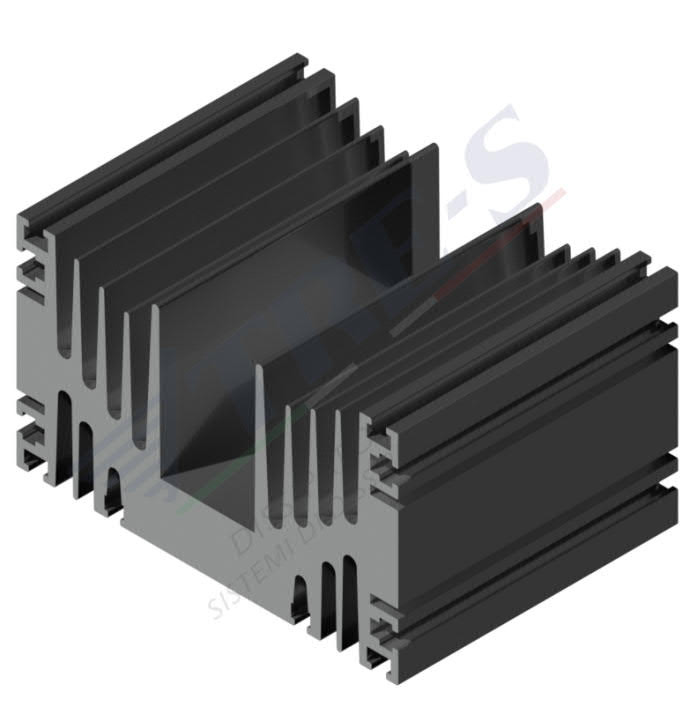

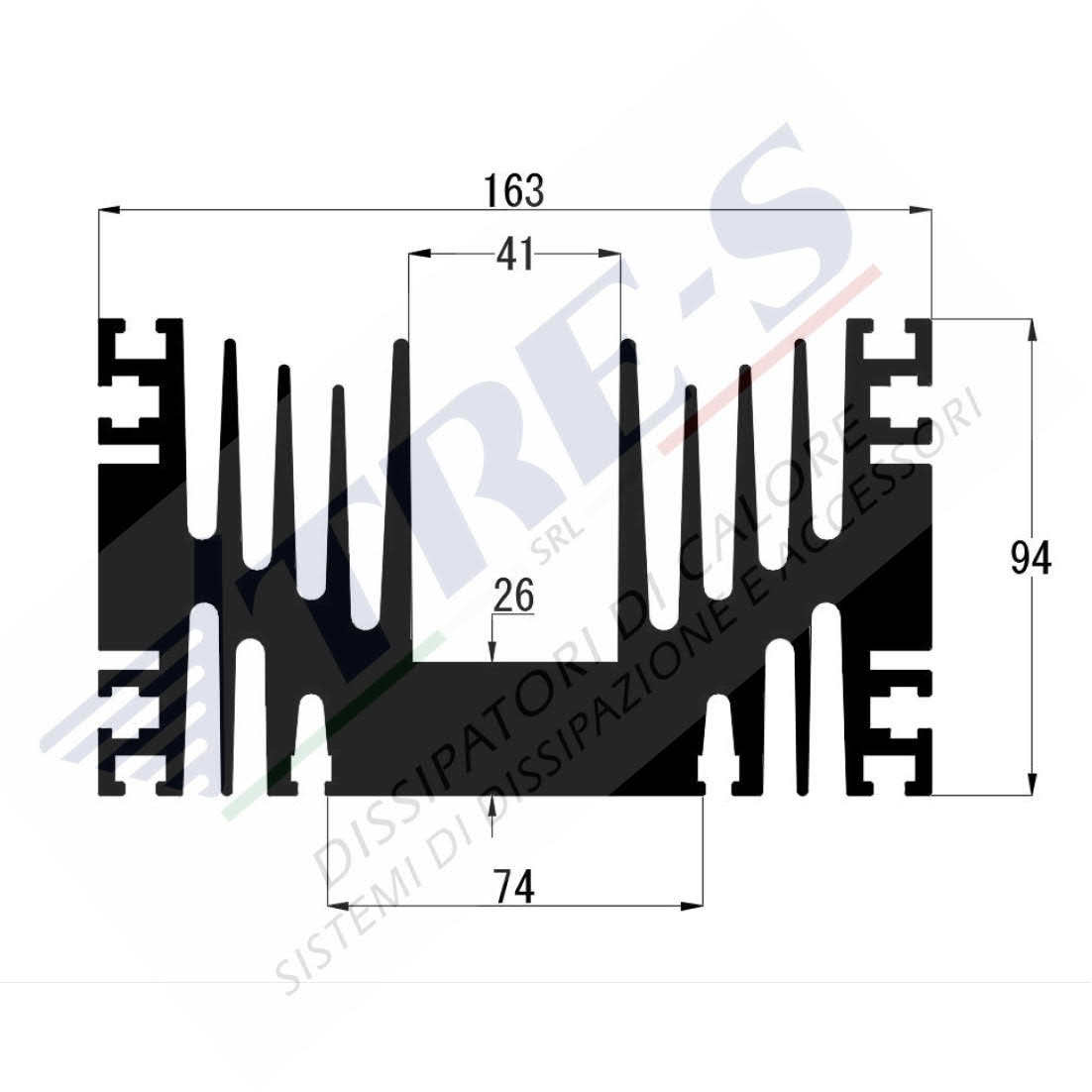

PRO1128
Profiles for disc cells


Mechanical characteristics:

Height: 94.00 mm

Width: 163.00 mm

Weight: 19.42 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.149

Sample length: 200.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 0.46

Sample length: 200.00mm

Applied power: 0.00W

Base
Assembled
Plug

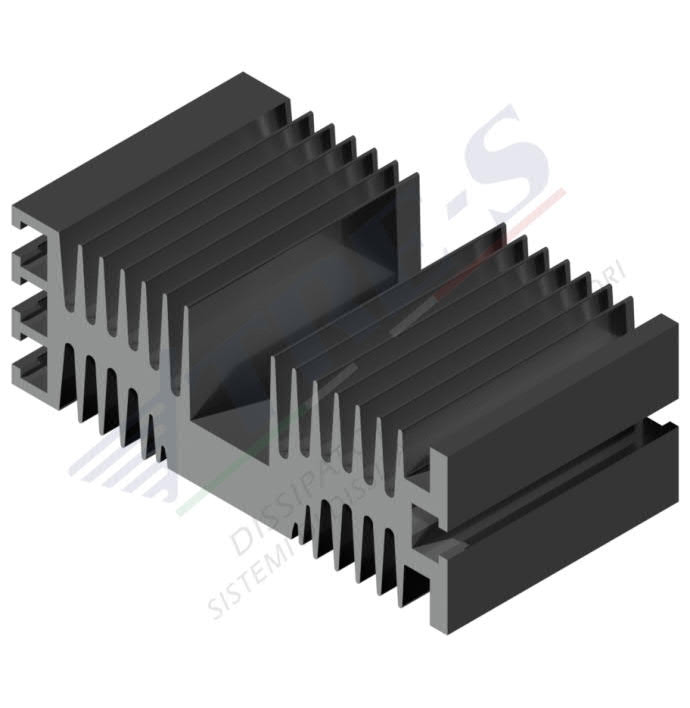

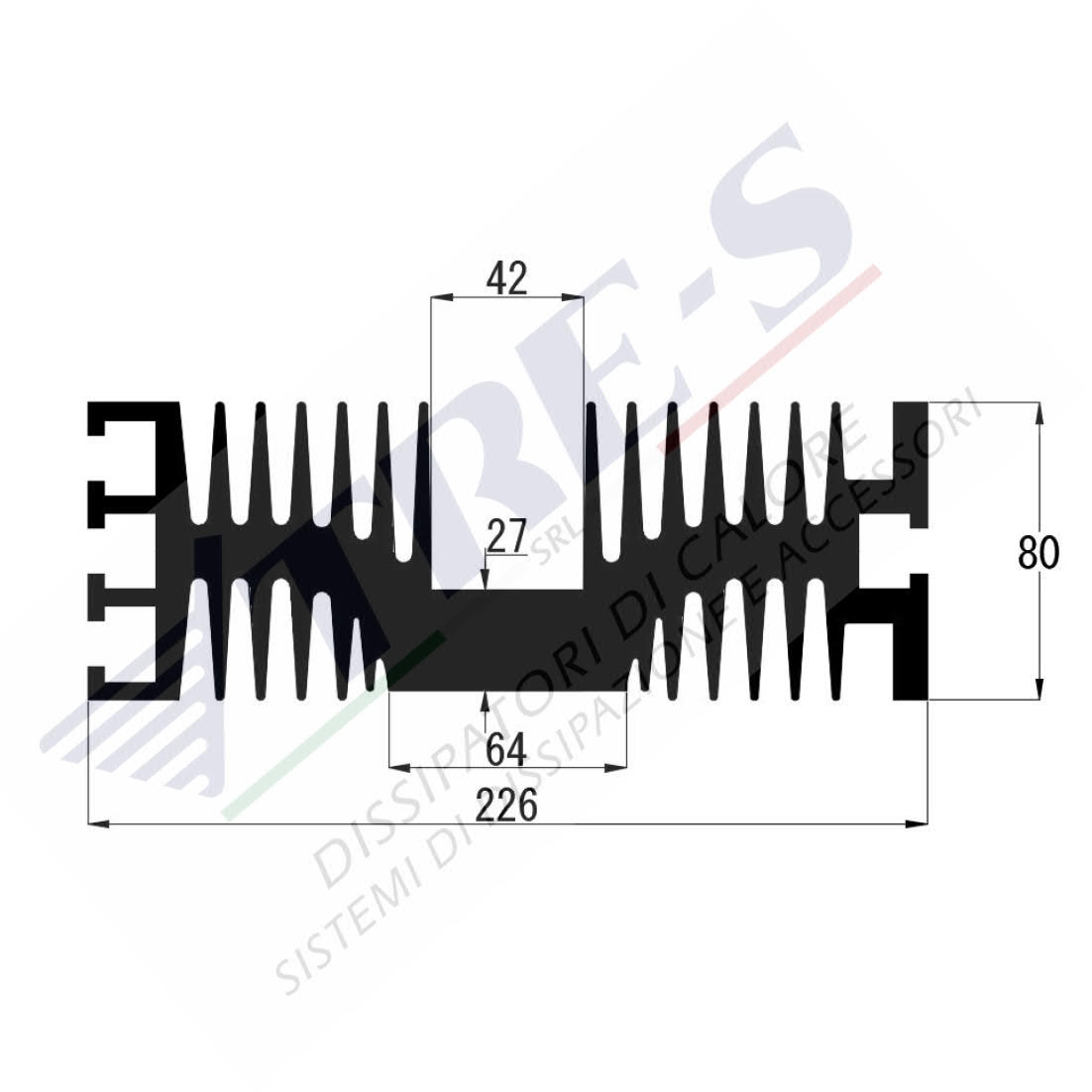

PRO1249
Profiles for disc cells


Mechanical characteristics:

Height: 80.00 mm

Width: 226.00 mm

Weight: 24.00 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.11

Sample length: 250.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 0.34

Sample length: 250.00mm

Applied power: 0.00W

Base
Assembled
Plug

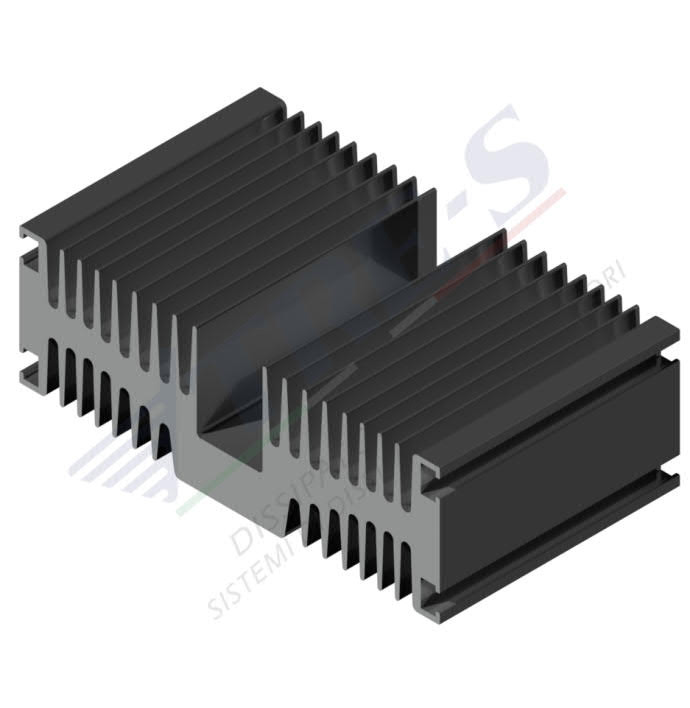

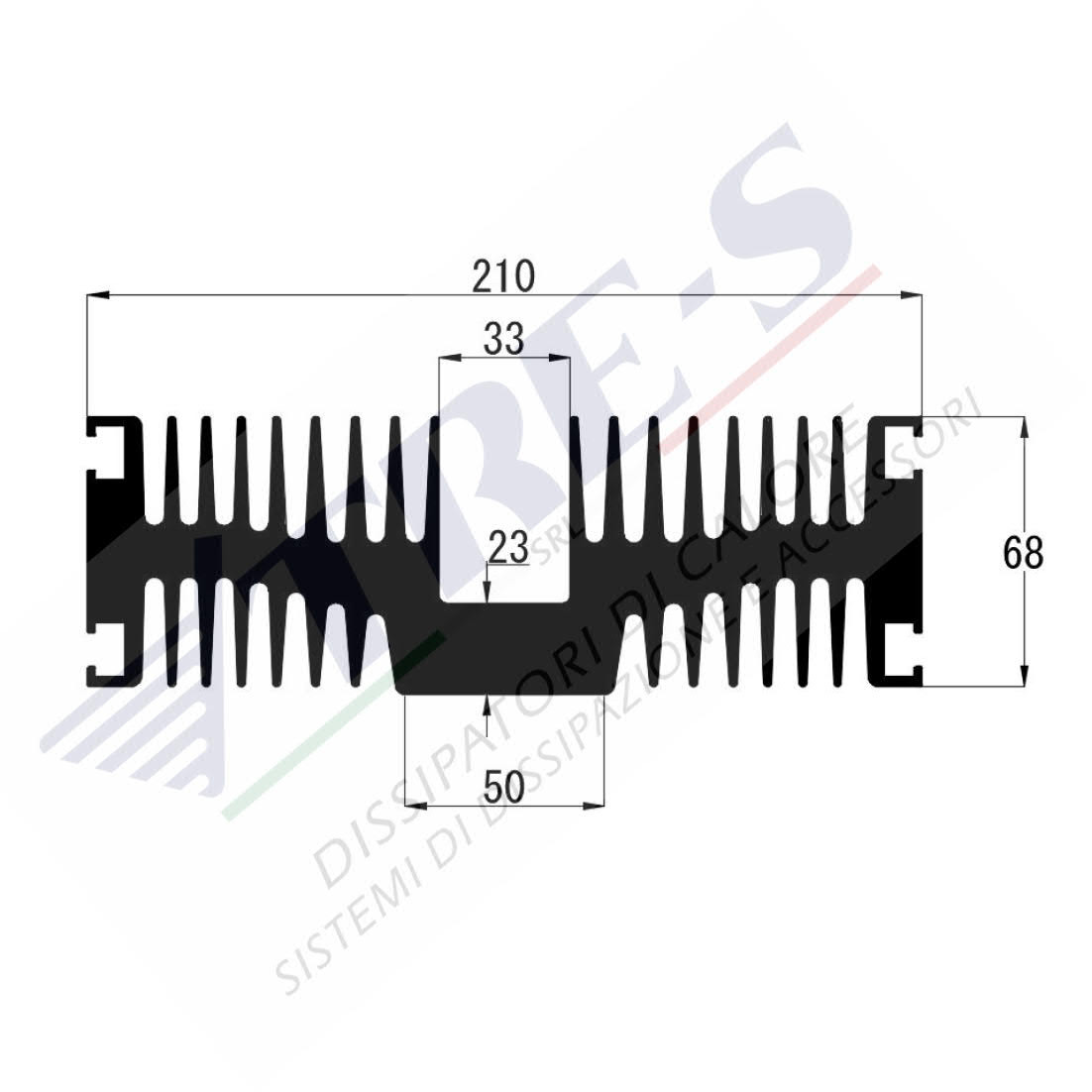

PRO1132
Profiles for disc cells


Mechanical characteristics:

Height: 68.00 mm

Width: 210.00 mm

Weight: 19.99 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.138

Sample length: 200.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 0.421

Sample length: 200.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1134
Profiles for disc cells


Mechanical characteristics:

Height: 73.00 mm

Width: 247.50 mm

Weight: 19.99 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

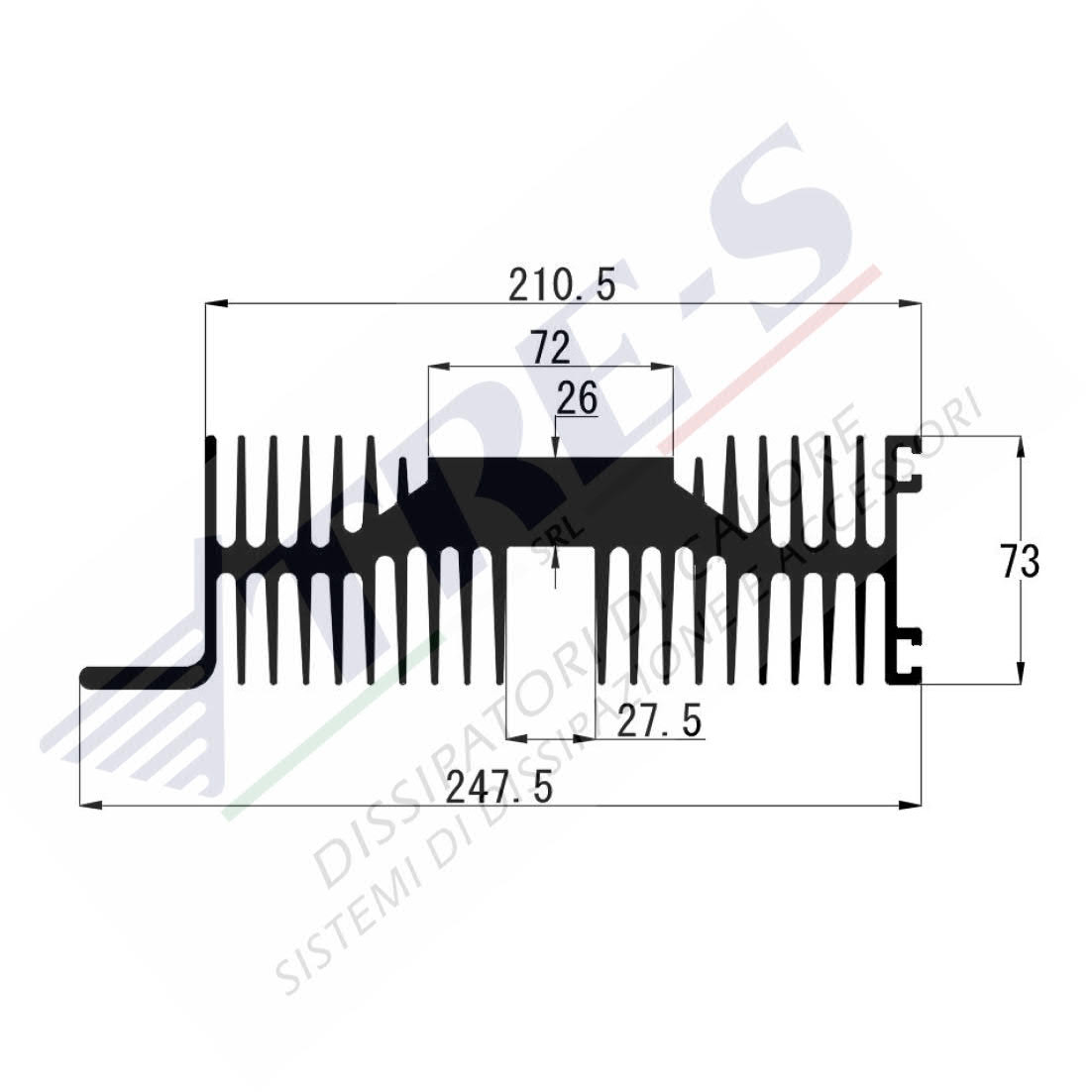

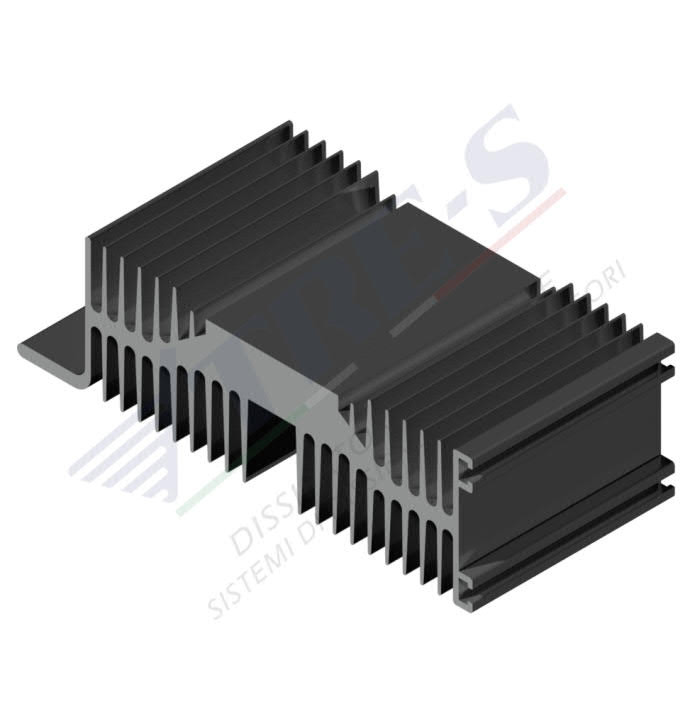

PRO1135
Profiles for disc cells


Mechanical characteristics:

Height: 73.00 mm

Width: 247.50 mm

Weight: 17.56 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W
