Profiles for devices with screw connections


Profiles with high thermal inertia for devices with high heat injection capacity. These heat sinks are used with a screw guide lane, which allows for easier clamping to the steelwork.

Base
Assembled
Plug

PRO1063
Profiles for devices with screw connections


Mechanical characteristics:

Height: 90.00 mm

Width: 67.50 mm

Weight: 8.29 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.4

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 0.11

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1059
Profiles for devices with screw connections


Mechanical characteristics:

Height: 132.00 mm

Width: 70.00 mm

Weight: 13.41 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.29

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 0.88

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1061
Profiles for devices with screw connections


Mechanical characteristics:

Height: 60.00 mm

Width: 40.00 mm

Weight: 2.26 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.856

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 2.52

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1062
Profiles for devices with screw connections


Mechanical characteristics:

Height: 90.00 mm

Width: 68.00 mm

Weight: 8.64 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1117
Profiles for devices with screw connections


Mechanical characteristics:

Height: 120.00 mm

Width: 120.00 mm

Weight: 11.18 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.236

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 0.71

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

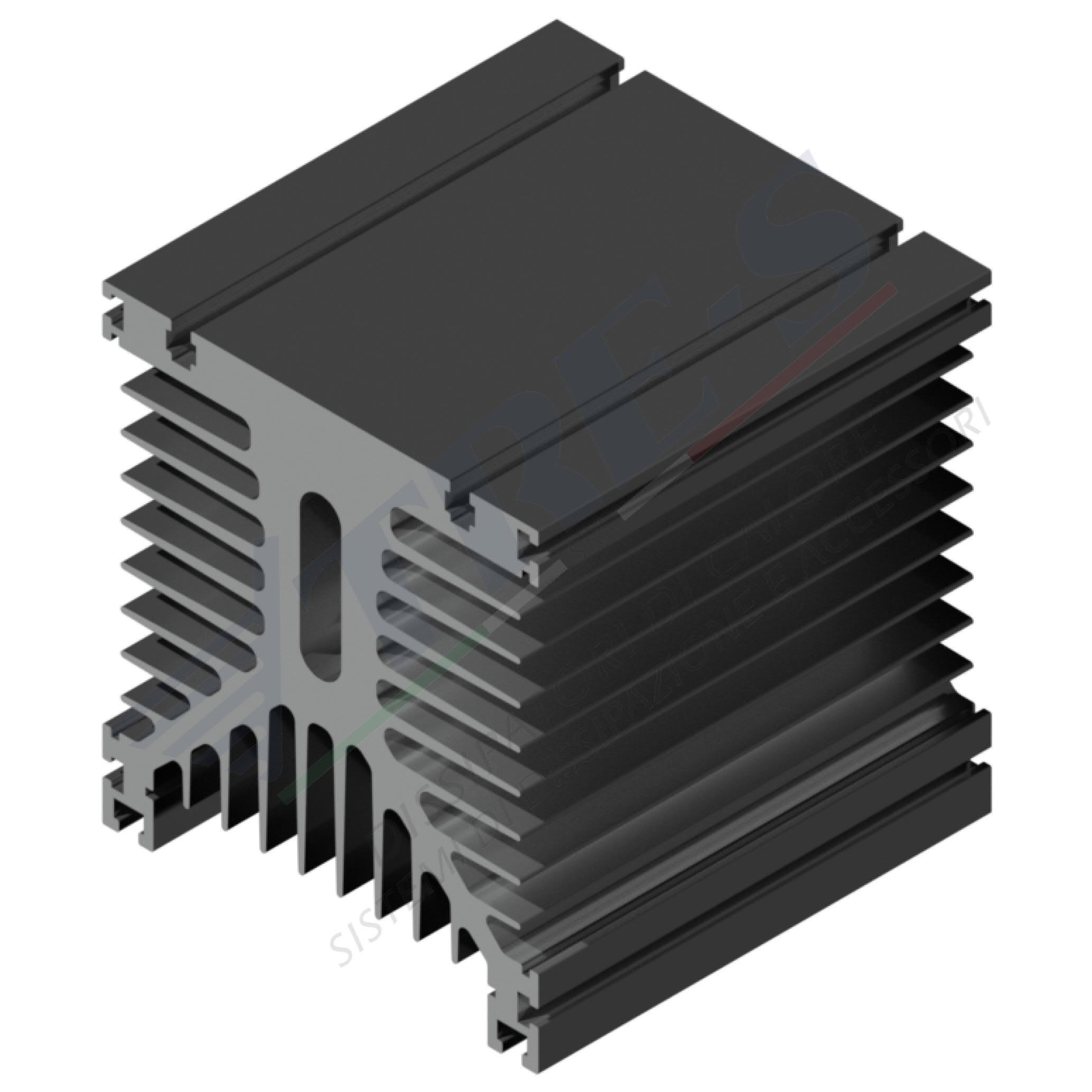

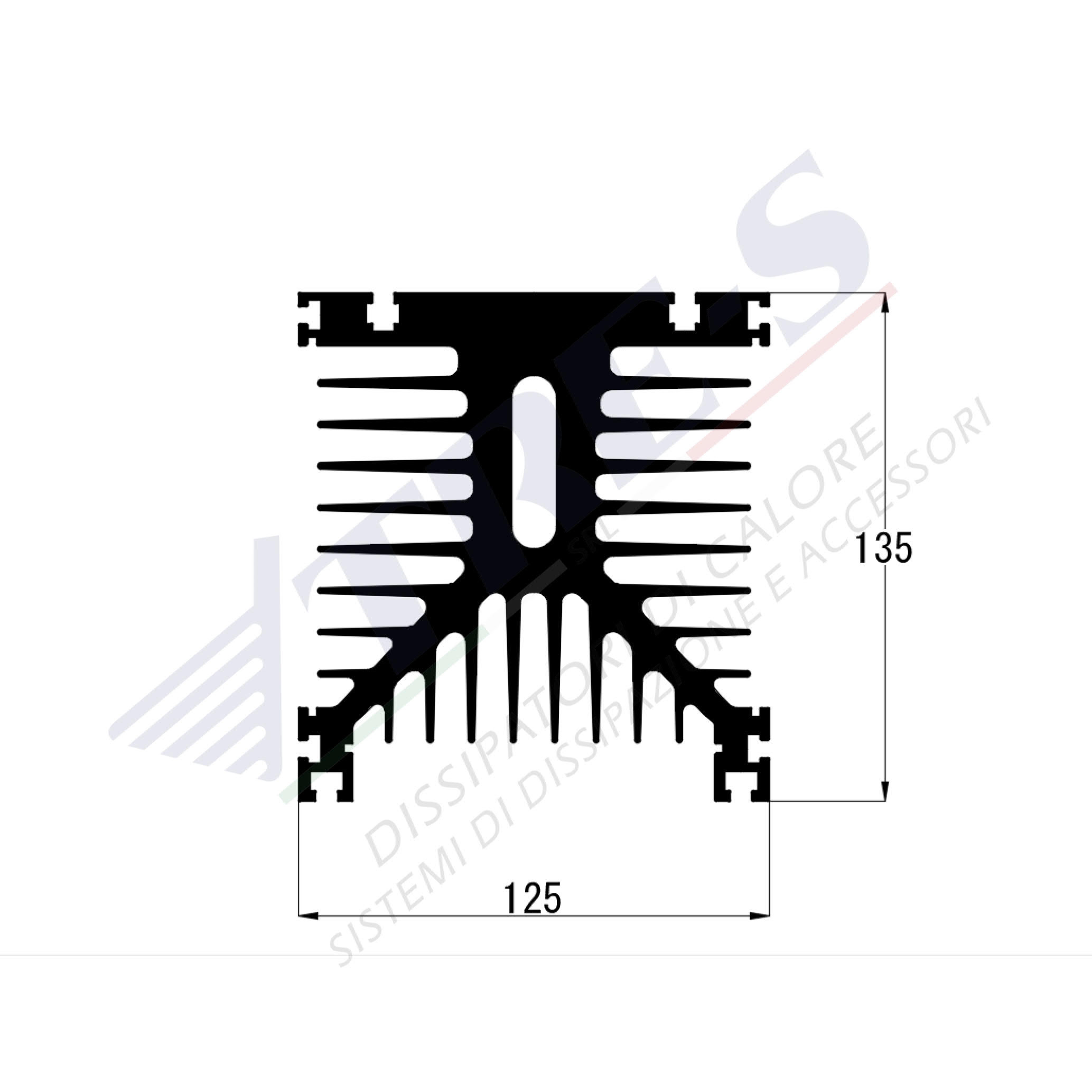

PRO1124P
Profiles for devices with screw connections


Mechanical characteristics:

Height: 135.00 mm

Width: 125.00 mm

Weight: 17.59 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.166

Sample length: 150.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 0.48

Sample length: 150.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1268
Profiles for devices with screw connections


Mechanical characteristics:

Height: 135.00 mm

Width: 125.00 mm

Weight: 15.34 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1125L
Profiles for devices with screw connections


Mechanical characteristics:

Height: 135.00 mm

Width: 125.00 mm

Weight: 15.64 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1114
Profiles for devices with screw connections


Mechanical characteristics:

Height: 100.00 mm

Width: 100.00 mm

Weight: 7.66 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1122
Profiles for devices with screw connections


Mechanical characteristics:

Height: 125.00 mm

Width: 125.00 mm

Weight: 15.55 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt:

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt

Sample length: 0.00mm

Applied power: 0.00W
