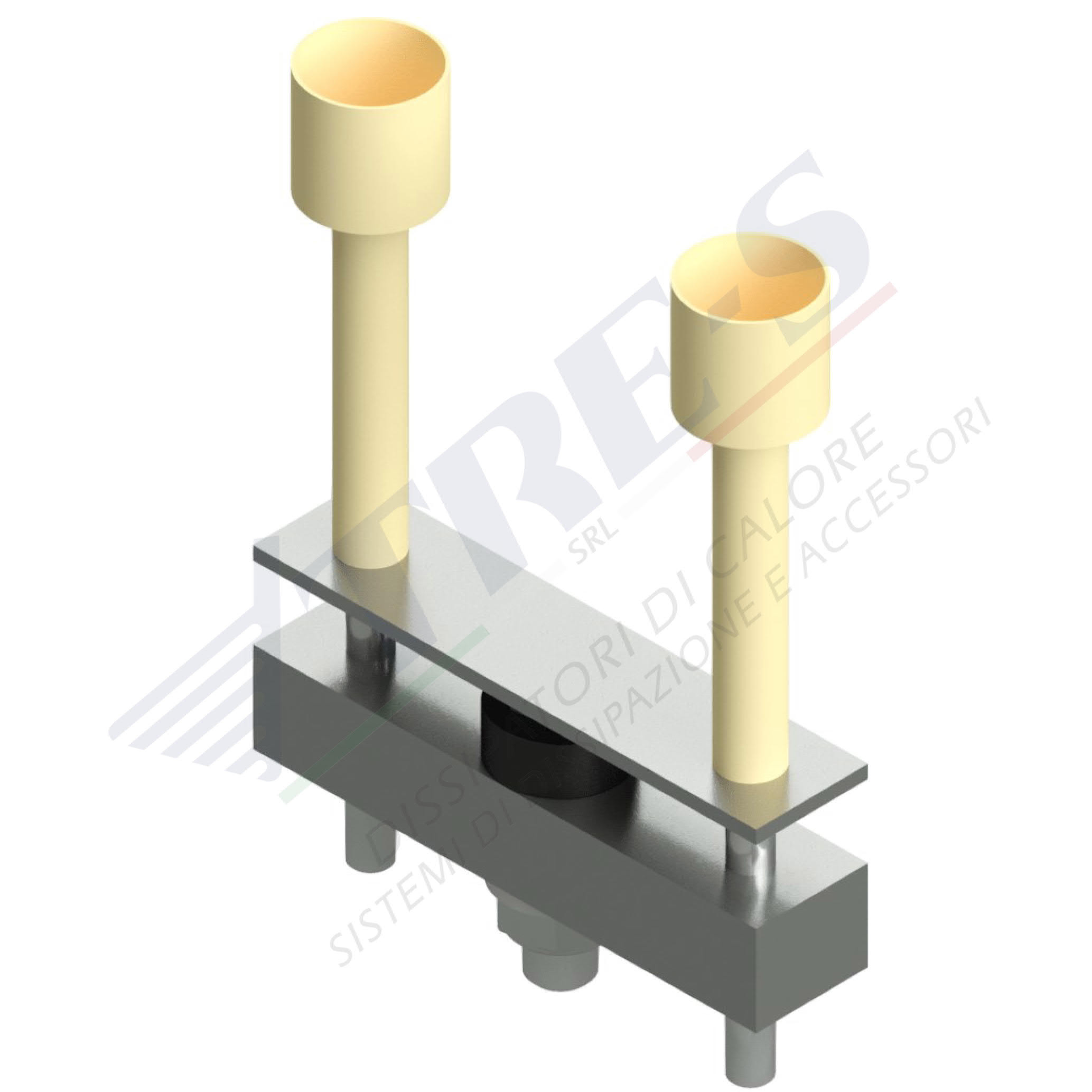

Tipo D - Clamps
Tipo D - Clamps

Code: Tipo D
Clamps

Lega BxS Dimensione Peso al metro
0 [[part1]] [[part2]]

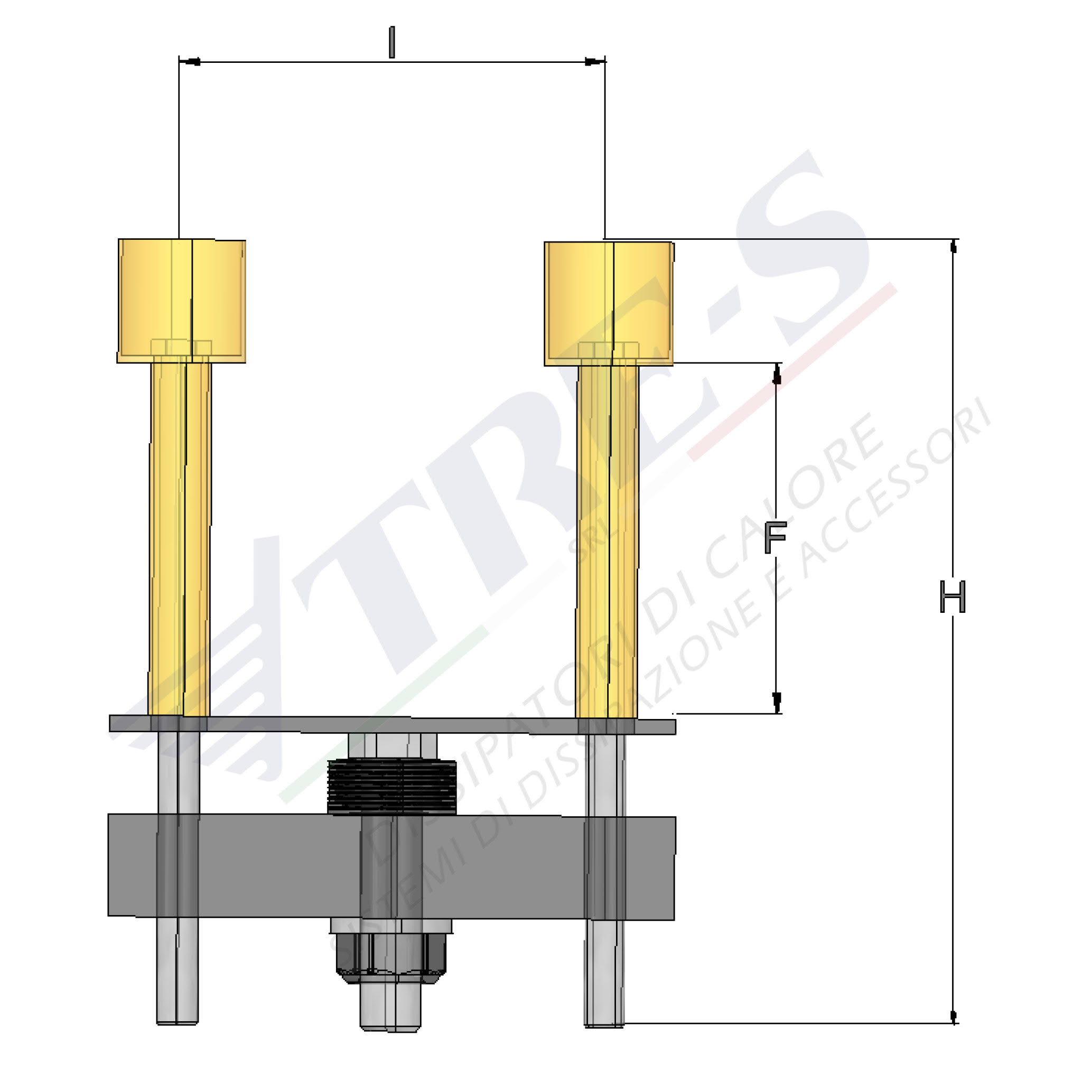

Codice KN MAX I F H
KL70D/30 13 70 30 107
KL70D/40 13 70 40 117
KL70D/50 13 70 50 127
KL70D/60 13 70 60 137
KL70D/70 13 70 70 147
KL70D/80 13 70 80 157
KL70D/90 13 70 90 167
KL70D/100 13 70 100 177
KL70D/110 13 70 110 187
Codice KN MAX I F H
KL79D/30 20 79 30 108
KL79D/40 20 79 40 118
KL79D/50 20 79 50 128
KL79D/60 20 79 60 138
KL79D/70 20 79 70 148
KL79D/80 20 79 80 158
KL79D/90 20 79 90 168
KL79D/100 20 79 100 178
KL79D/110 20 79 110 188
Codice KN MAX I F H
KL89D/30 25 89 30 109
KL89D/40 25 89 40 119
KL89D/50 25 89 50 129
KL89D/60 25 89 60 139
KL89D/70 25 89 70 149
KL89D/80 25 89 80 159
KL89D/90 25 89 90 169
KL89D/100 25 89 100 179
KL89D/110 25 89 110 189
Codice KN MAX I F H
KL102D/30 30 102 30 125
KL102D/40 30 102 40 135
KL102D/50 30 102 50 145
KL102D/60 30 102 60 155
KL102D/70 30 102 70 165
KL102D/80 30 102 80 175
KL102D/90 30 102 90 185
KL102D/100 30 102 100 195
KL102D/110 30 102 110 205
Codice KN MAX I F H
KL118D/30 40 118 30 136
KL118D/40 40 118 40 146
KL118D/50 40 118 50 156
KL118D/60 40 118 60 166
KL118D/70 40 118 70 176
KL118D/80 40 118 80 186
KL118D/90 40 118 90 196
KL118D/100 40 118 100 206
KL118D/110 40 118 110 216
Codice KN MAX I F H
KL140D/30 50 140 30 180
KL140D/40 50 140 40 190
KL140D/50 50 140 50 200
KL140D/60 50 140 60 210
KL140D/70 50 140 70 220
KL140D/80 50 140 80 230
KL140D/90 50 140 90 240
KL140D/100 50 140 100 250
KL140D/110 50 140 110 260

Length: 0.00 mm

Weight: 0.00 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m

Height: 0.00 mm


Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample width: 0.00mm

Applied power: 0.00W

Tipo D - Clamps


Within this catalog, heat sinks are organized based on their shape and dimensions expressed in millimeters. Each profile is characterized by the following parameters:

  • Weight: expressed in kilograms per meter of profile length (Kg/m).
  • Length: indicated in millimeters and used for calculating thermal resistance (L).
  • Width: also in millimeters, considered for calculating thermal resistance (°C/W), applicable only to high-efficiency heat sinks.
  • Thermal Resistance in Natural Convection: expressed in °C/W with a temperature difference of 70°C (compared to an ambient temperature of 25°C).
  • Thermal Resistance in Forced Convection: also expressed in °C/W, with an air velocity of 3 m/s and a temperature difference of 50°C.

The values of thermal resistance have been determined through a thermal simulation program designed to replicate realistic conditions. In particular:

  • The heat source is uniformly distributed over approximately 50% of the dissipation surface, with central positioning on the heat sink.
  • To maximize natural convection heat dissipation efficiency, the heat sink is designed with vertical fins. For horizontal installations, it is advisable to consider an increase of approximately 20% in thermal resistance.
  • The surface of the heat sink is not subject to additional treatments.

Regarding black anodized heat sinks in natural convection, the thermal resistance is reduced by approximately 10%.

As the length of the heat sink increases, the thermal resistance decreases following a nonlinear law. The indicated values refer to the specified lengths; for different lengths, consult the “Length Correction Factor” graph to calculate the multiplication factor to be applied to the thermal resistance, both in natural and forced convection.
