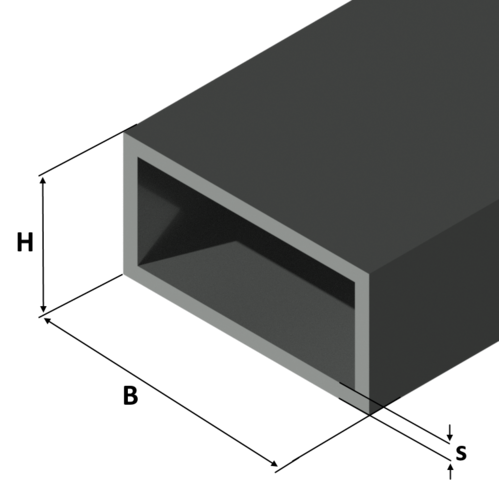

Code: Tubo rettangolare
Standard Profiles

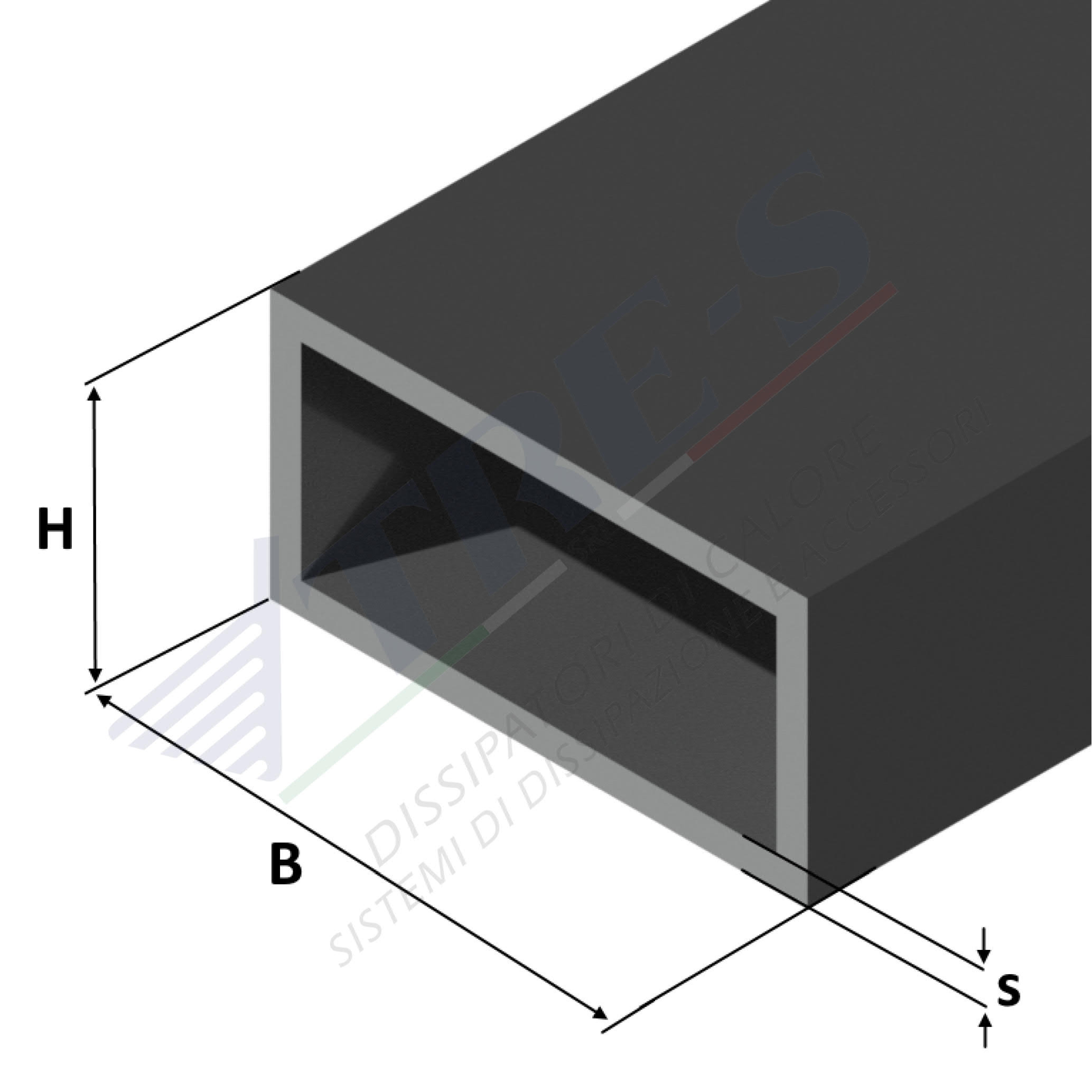

| Lega | BxS Dimensione | Peso al metro |
|---|---|---|
| 6060 | 20x10x1,5 | 0,22 |
| 6060 | 20x15x1,5 | 0,26 |
| 6060 | 25x15x1,5 | 0,3 |
| 6060 | 30x10x1,5 | 0,3 |
| 6060 | 30x15x1,5 | 0,34 |
| 6060 | 30x15x2 | 0,44 |
| 6060 | 30x20x1,5 | 0,38 |
| 6060 | 30x20x2 | 0,5 |
| 6060 | 35x20x2 | 0,55 |
| 6060 | 40x10x1,5 | 0,38 |
| 6060 | 40x15x2 | 0,55 |
| 6060 | 40x20x1,5 | 0,46 |
| 6060 | 40x20x2 | 0,61 |
| 6060 | 40x20x3 | 0,88 |
| 6060 | 40x25x2 | 0,66 |
| 6060 | 40x30x2 | 0,71 |
| 6060 | 45x20x2 | 0,61 |
| 6060 | 50x15x2 | 0,66 |
| 6060 | 50x20x2 | 0,71 |
| 6060 | 50x25x2 | 0,77 |
| 6060 | 50x25x3 | 1,12 |
| 6060 | 50x30x2 | 0,82 |
| 6060 | 50x30x3 | 1,2 |
| 6060 | 50x40x2 | 0,93 |
| 6060 | 58x20x3 | 1,17 |
| 6060 | 60x20x2 | 0,82 |
| 6060 | 60x30x1,2 | 0,59 |
| 6060 | 60x30x2 | 0,93 |
| 6060 | 60x30x3 | 1,36 |
| 6060 | 60x40x2 | 1,04 |
| 6060 | 60x40x4 | 1,99 |
| 6060 | 70x20x2 | 0,93 |
| 6060 | 70x30x2 | 1,04 |
| 6060 | 80x15x2 | 0,98 |
| 6060 | 80x20x2 | 1,04 |
| 6060 | 80x30x2 | 1,14 |
| 6060 | 80x40x2 | 1,25 |
| 6060 | 80x40x3 | 1,85 |
| 6060 | 80x40x4 | 2,42 |
| 6060 | 80x50x2 | 1,36 |
| 6060 | 80x50x4 | 2,64 |
| 6060 | 100x20x2 | 1,25 |
| 6060 | 100x25x2 | 1,31 |
| 6060 | 100x30x2 | 1,36 |
| 6060 | 100x30x3 | 2,01 |
| 6060 | 100x40x2 | 1,47 |
| 6060 | 100x50x2 | 1,57 |
| 6060 | 100x50x3 | 2,37 |
| 6060 | 100x50x4 | 3,07 |
| 6060 | 100x50x5 | 3,78 |
| 6060 | 120x20x2 | 1,47 |
| 6060 | 120x40x2 | 1,69 |
| 6060 | 120x50x3 | 2,66 |
| 6060 | 120x60x5 | 4,73 |
| 6060 | 150x20x1,8 | 1,62 |
| 6060 | 150x50x4 | 4,15 |
| 6060 | 150x75x8 | 9,03 |
| 6060 | 197x97x8,5 | 12,71 |
| 6060 | 200x50x4 | 5,23 |
| 6060 | 200x100x5 | 7,83 |
| Codice | KN MAX | I | F | H |
|---|
| Codice | KN MAX | I | F | H |
|---|
| Codice | KN MAX | I | F | H |
|---|
| Codice | KN MAX | I | F | H |
|---|
| Codice | KN MAX | I | F | H |
|---|
| Codice | KN MAX | I | F | H |
|---|
Length: 0.00 mm
Weight: 0.00 kg/m
Weight A: 0.00 kg/m
Weight B: 0.00 kg/m
Height: 0.00 mm
Within this catalog, heat sinks are organized based on their shape and dimensions expressed in millimeters. Each profile is characterized by the following parameters:
- Weight: expressed in kilograms per meter of profile length (Kg/m).
- Length: indicated in millimeters and used for calculating thermal resistance (L).
- Width: also in millimeters, considered for calculating thermal resistance (°C/W), applicable only to high-efficiency heat sinks.
- Thermal Resistance in Natural Convection: expressed in °C/W with a temperature difference of 70°C (compared to an ambient temperature of 25°C).
- Thermal Resistance in Forced Convection: also expressed in °C/W, with an air velocity of 3 m/s and a temperature difference of 50°C.
The values of thermal resistance have been determined through a thermal simulation program designed to replicate realistic conditions. In particular:
- The heat source is uniformly distributed over approximately 50% of the dissipation surface, with central positioning on the heat sink.
- To maximize natural convection heat dissipation efficiency, the heat sink is designed with vertical fins. For horizontal installations, it is advisable to consider an increase of approximately 20% in thermal resistance.
- The surface of the heat sink is not subject to additional treatments.
Regarding black anodized heat sinks in natural convection, the thermal resistance is reduced by approximately 10%.
As the length of the heat sink increases, the thermal resistance decreases following a nonlinear law. The indicated values refer to the specified lengths; for different lengths, consult the “Length Correction Factor” graph to calculate the multiplication factor to be applied to the thermal resistance, both in natural and forced convection.
