Heat sinks for power modules


Heat sinks for power modules characterised by fins and a flat area on which to place the components. Created to obtain a high-performance profile from a low-cost extruded profile.

Base
Assembled
Plug

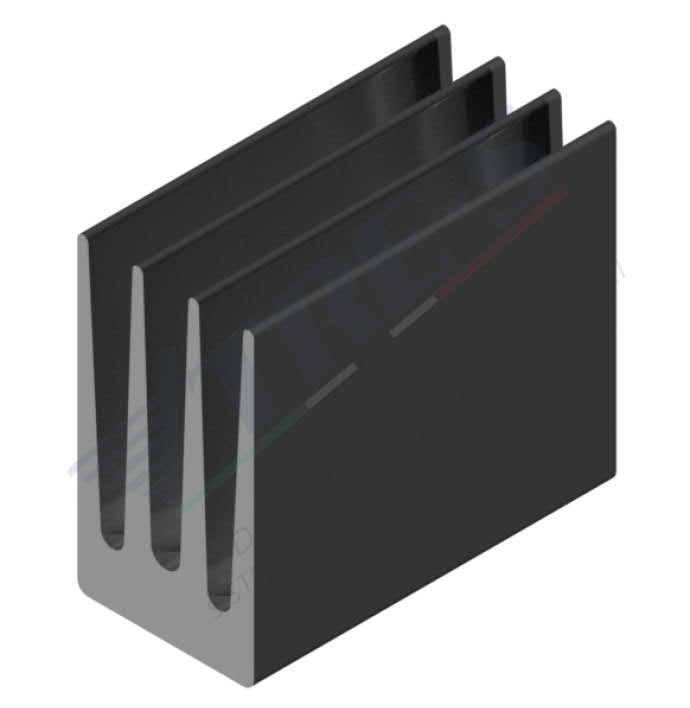

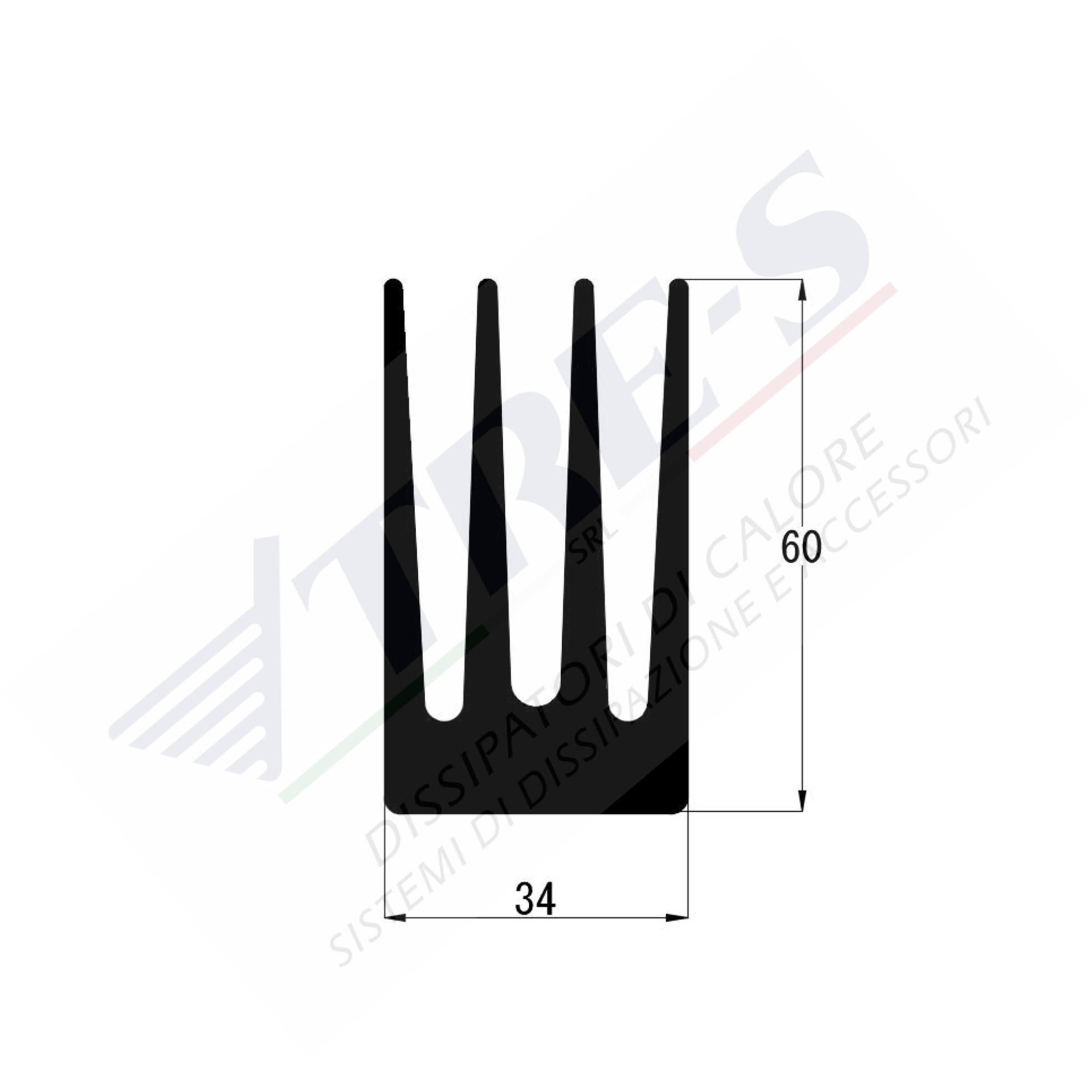

PRO1033
Dissipatori per moduli di potenza


Mechanical characteristics:

Height: 60.00 mm

Width: 34.00 mm

Weight: 2.84 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 1.14

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 3.37

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

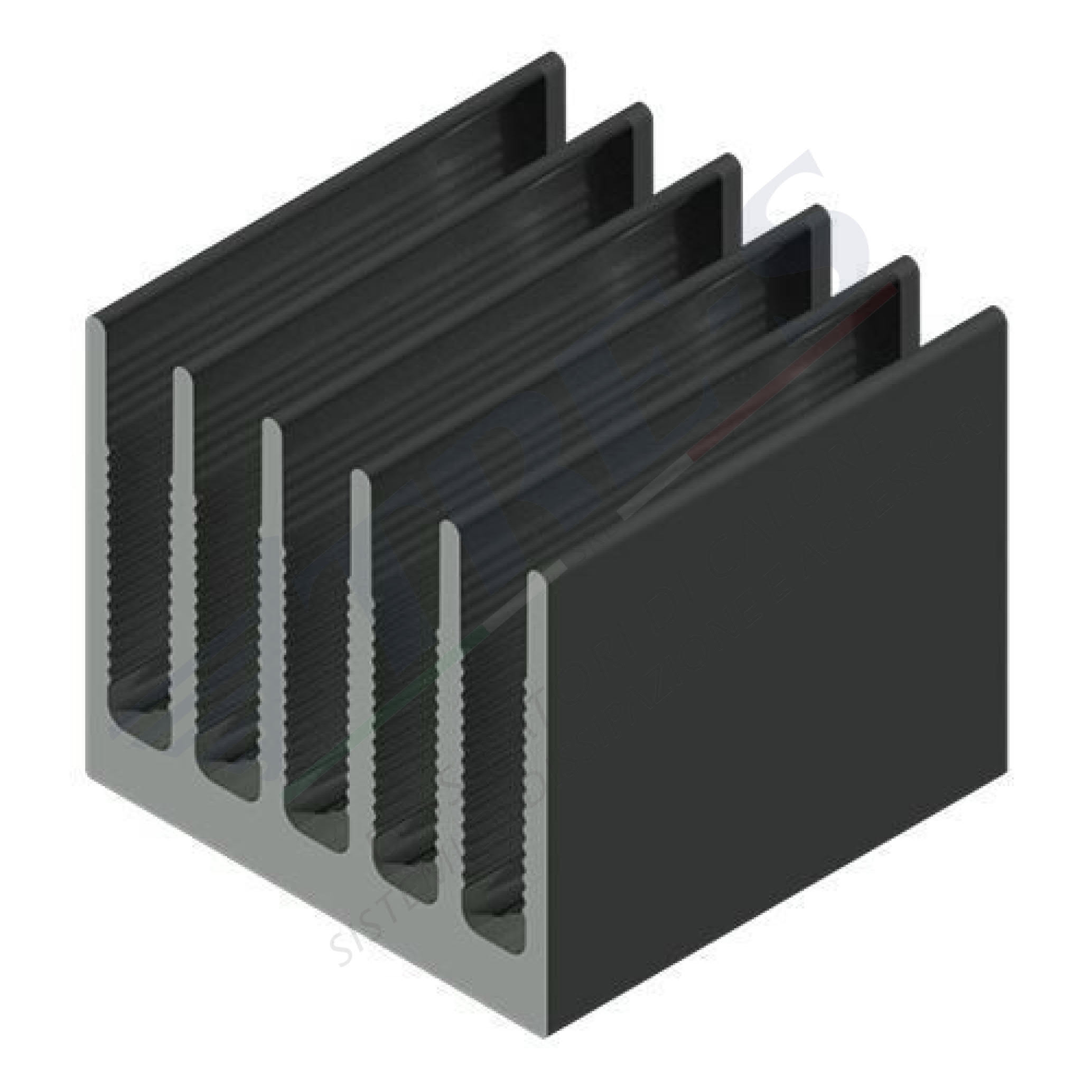

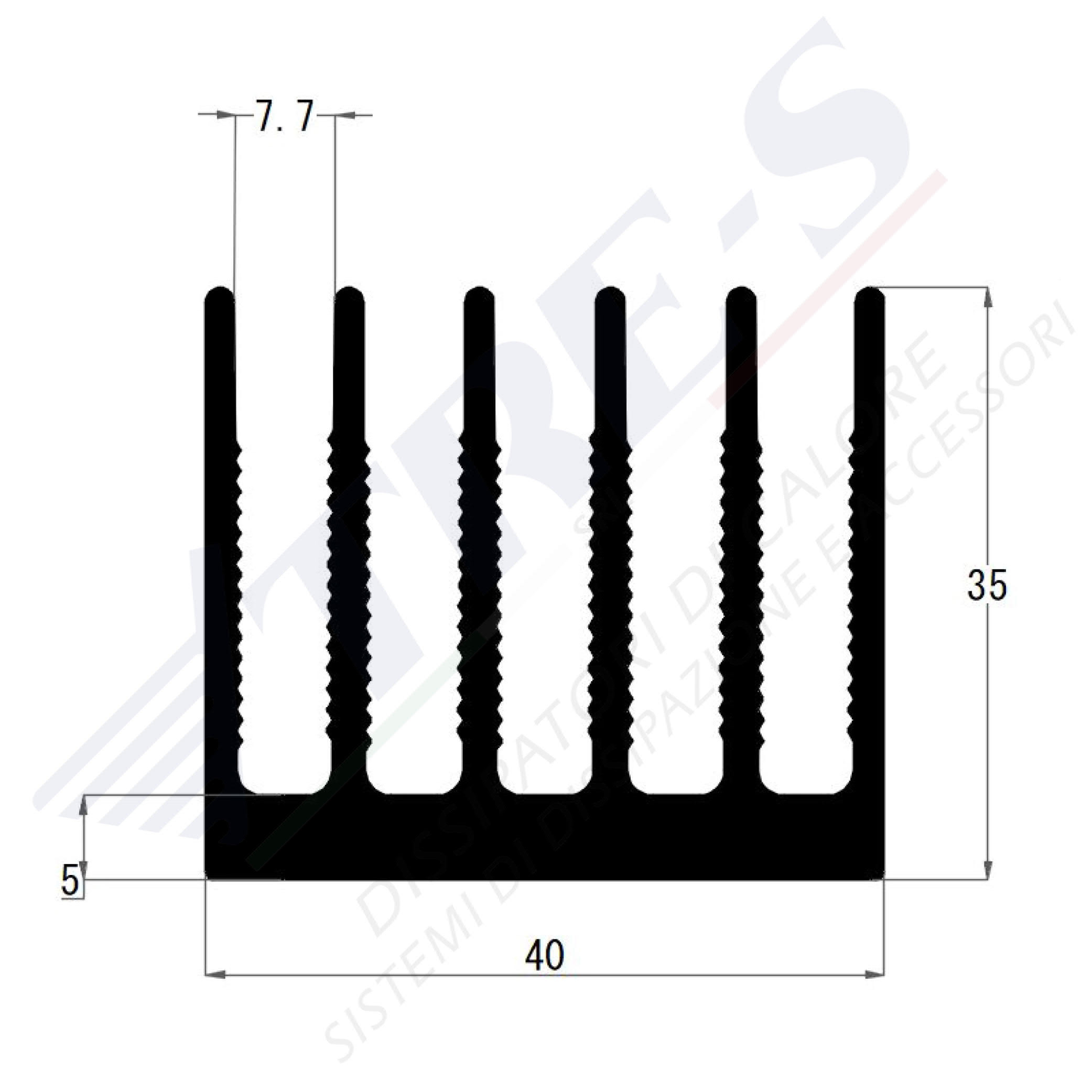

PRO1251
Dissipatori per moduli di potenza


Mechanical characteristics:

Height: 35.00 mm

Width: 40.00 mm

Weight: 2.35 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 1.14

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 3.36

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

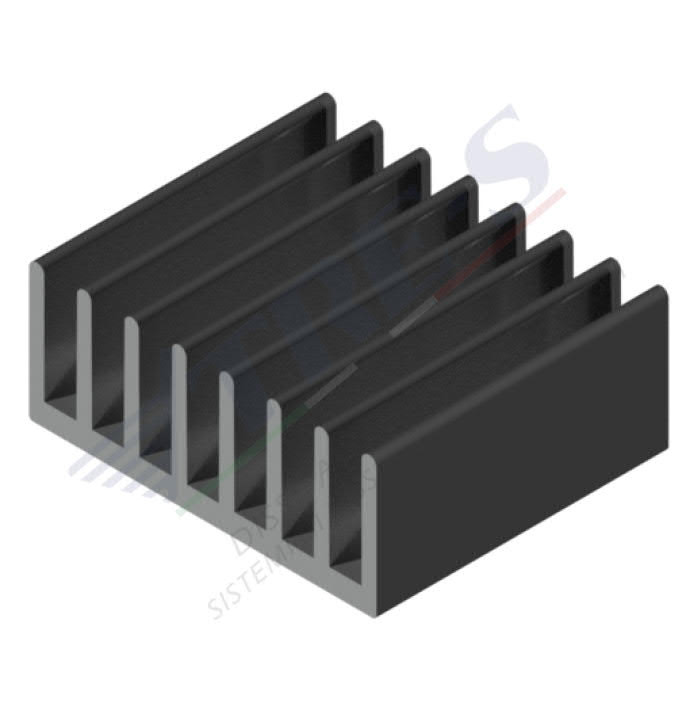

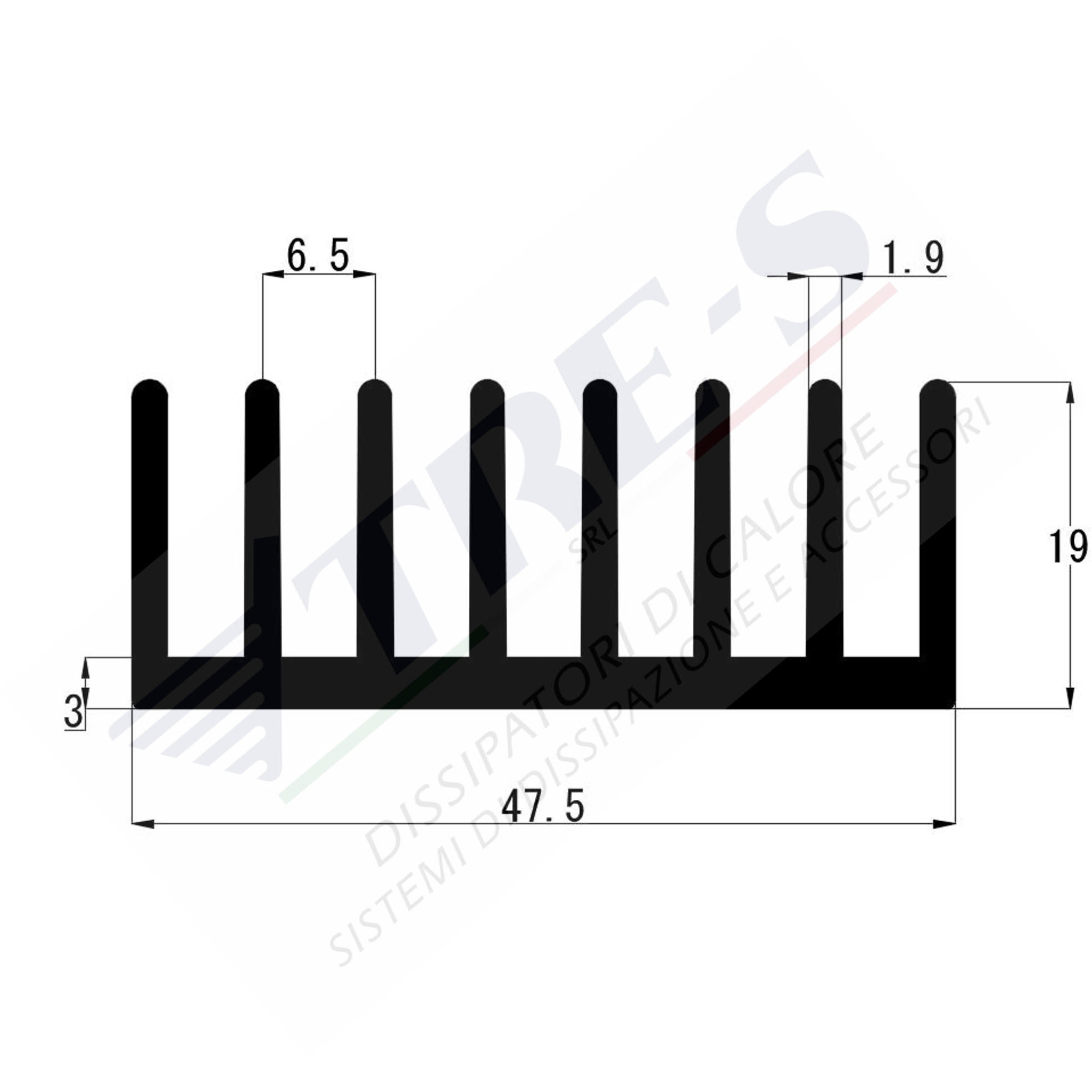

PRO1038
Dissipatori per moduli di potenza


Mechanical characteristics:

Height: 19.00 mm

Width: 47.50 mm

Weight: 1.07 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

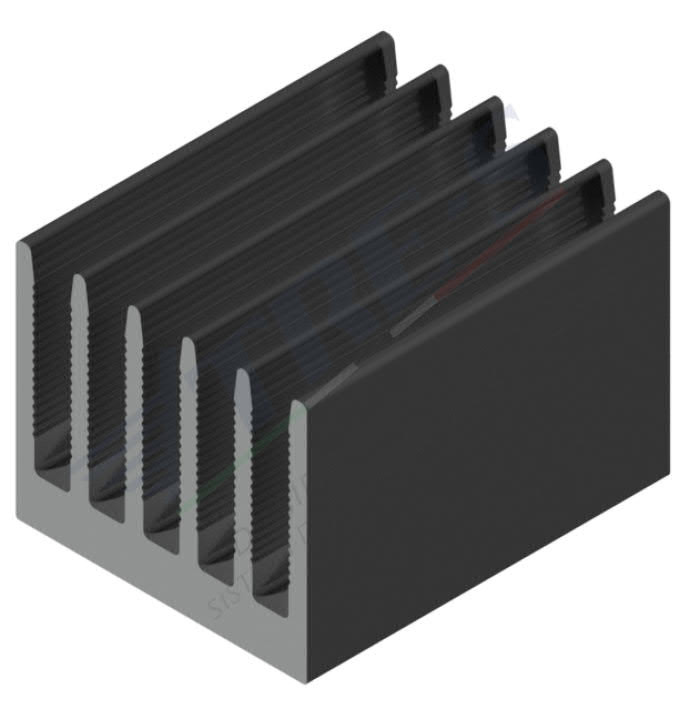

PRO1250
Dissipatori per moduli di potenza


Mechanical characteristics:

Height: 48.00 mm

Width: 48.00 mm

Weight: 2.44 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 0.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 0.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1271
Dissipatori per moduli di potenza


Mechanical characteristics:

Height: 40.00 mm

Width: 52.00 mm

Weight: 2.60 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 1.01

Sample length: 50.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 2.98

Sample length: 50.00mm

Applied power: 0.00W

Base
Assembled
Plug

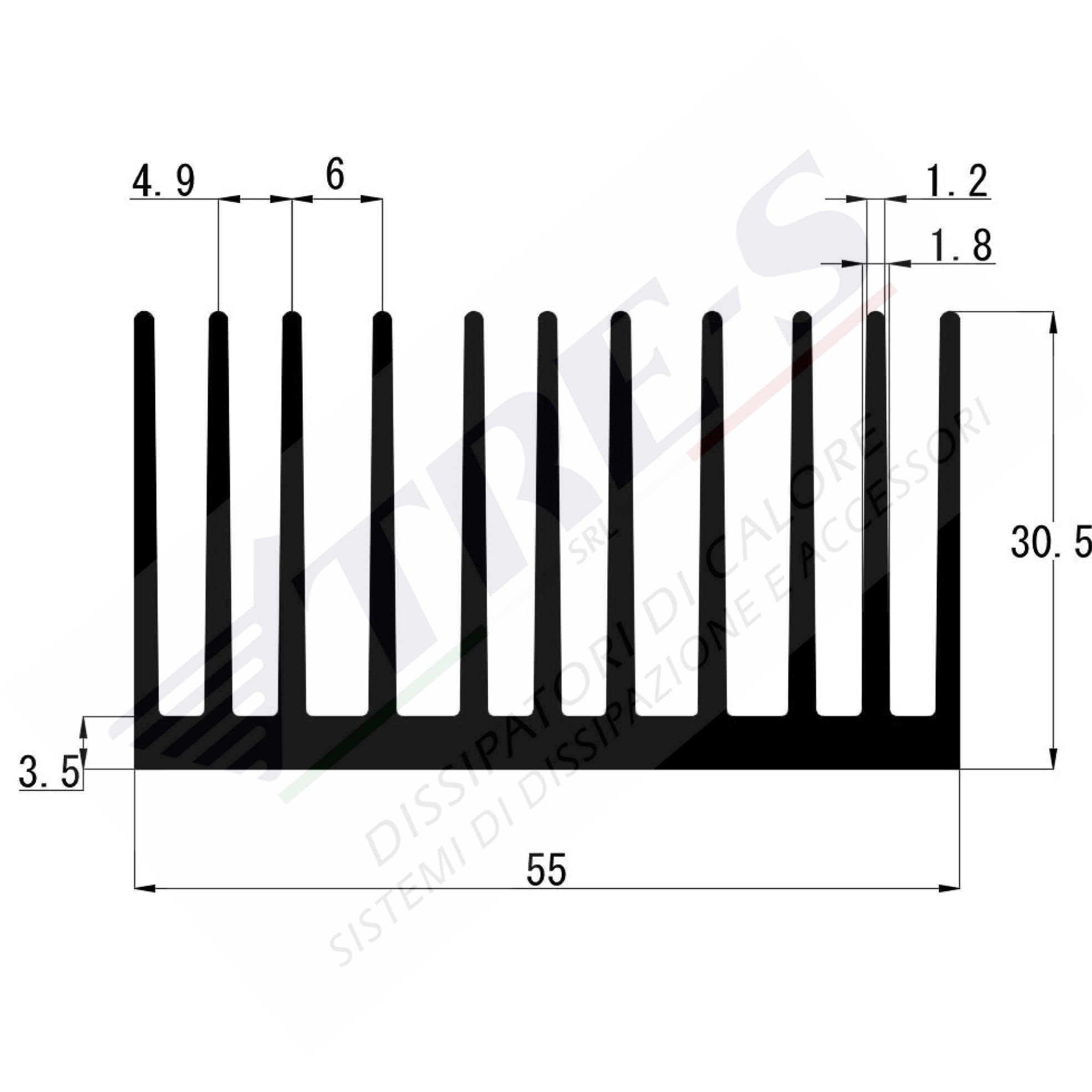

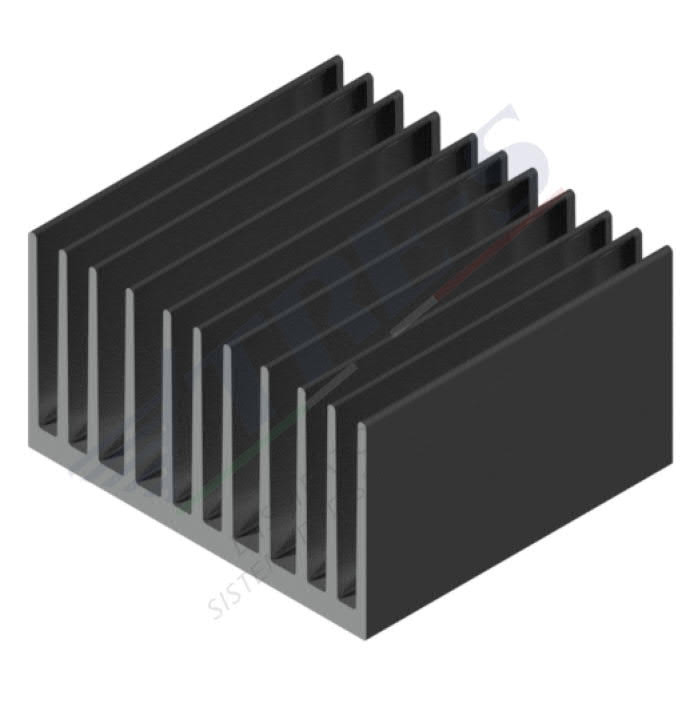

PRO1073
Dissipatori per moduli di potenza


Mechanical characteristics:

Height: 30.50 mm

Width: 55.00 mm

Weight: 1.71 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 73.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 73.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1295
Dissipatori per moduli di potenza


Mechanical characteristics:

Height: 56.00 mm

Width: 58.00 mm

Weight: 3.74 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 75.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 75.00mm

Applied power: 0.00W

Base
Assembled
Plug

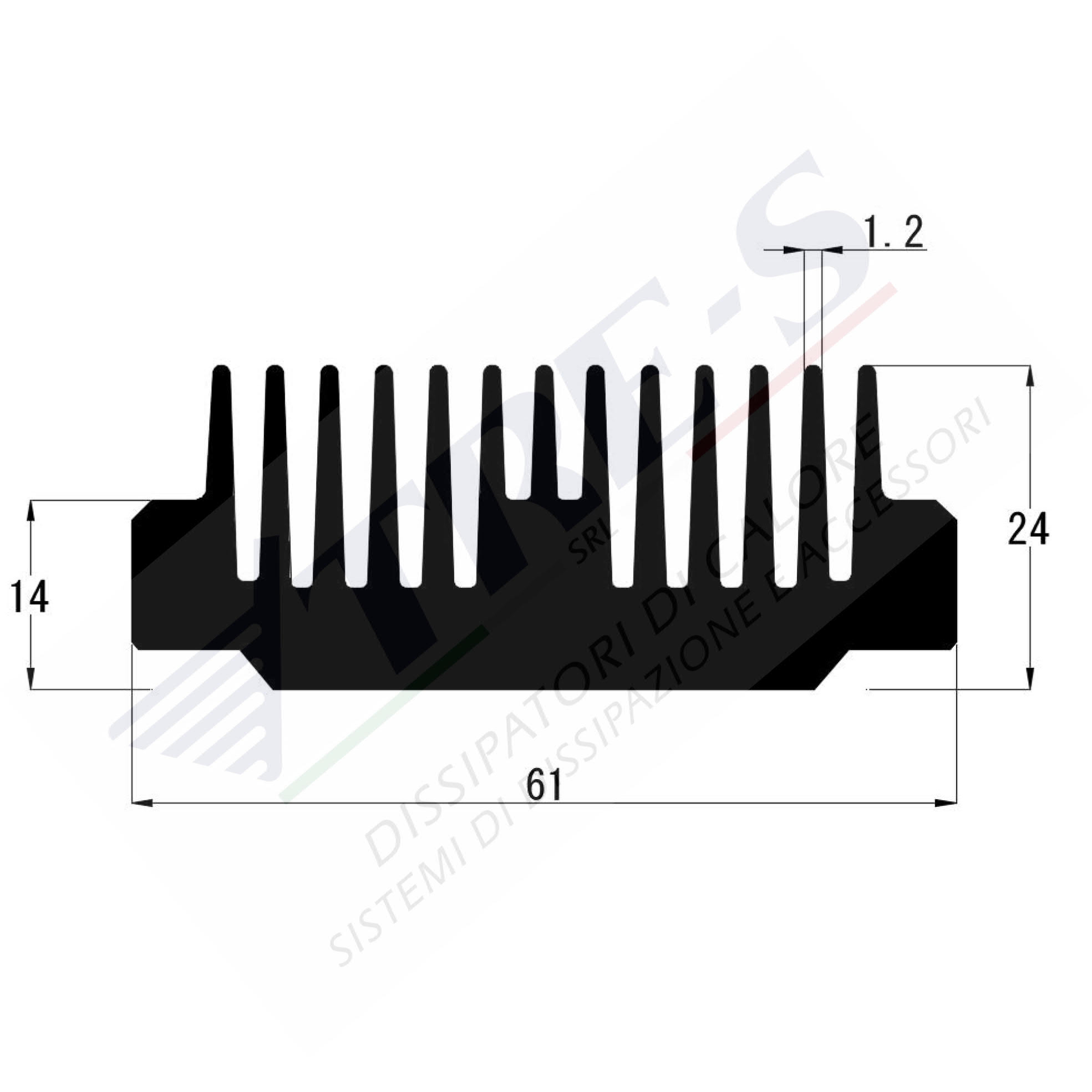

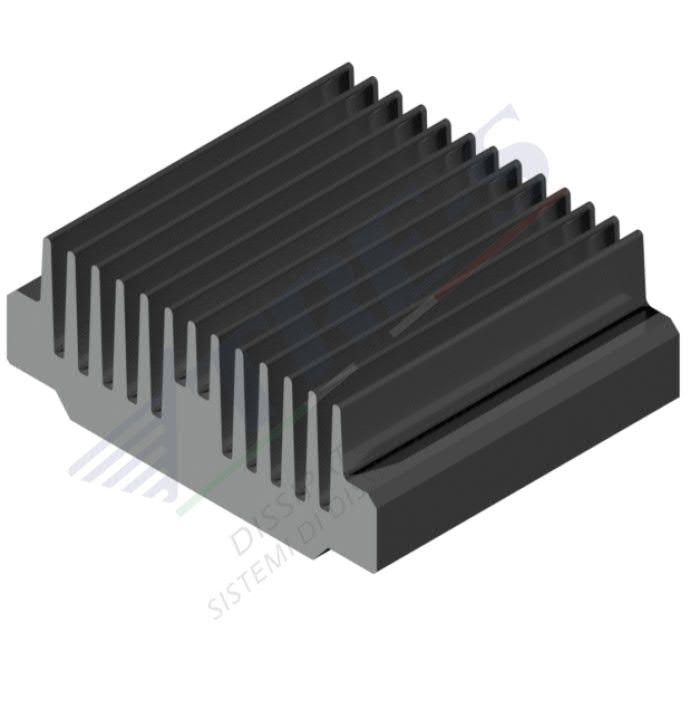

PRO1028
Dissipatori per moduli di potenza


Mechanical characteristics:

Height: 24.00 mm

Width: 61.00 mm

Weight: 2.23 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 75.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 75.00mm

Applied power: 0.00W

Base
Assembled
Plug

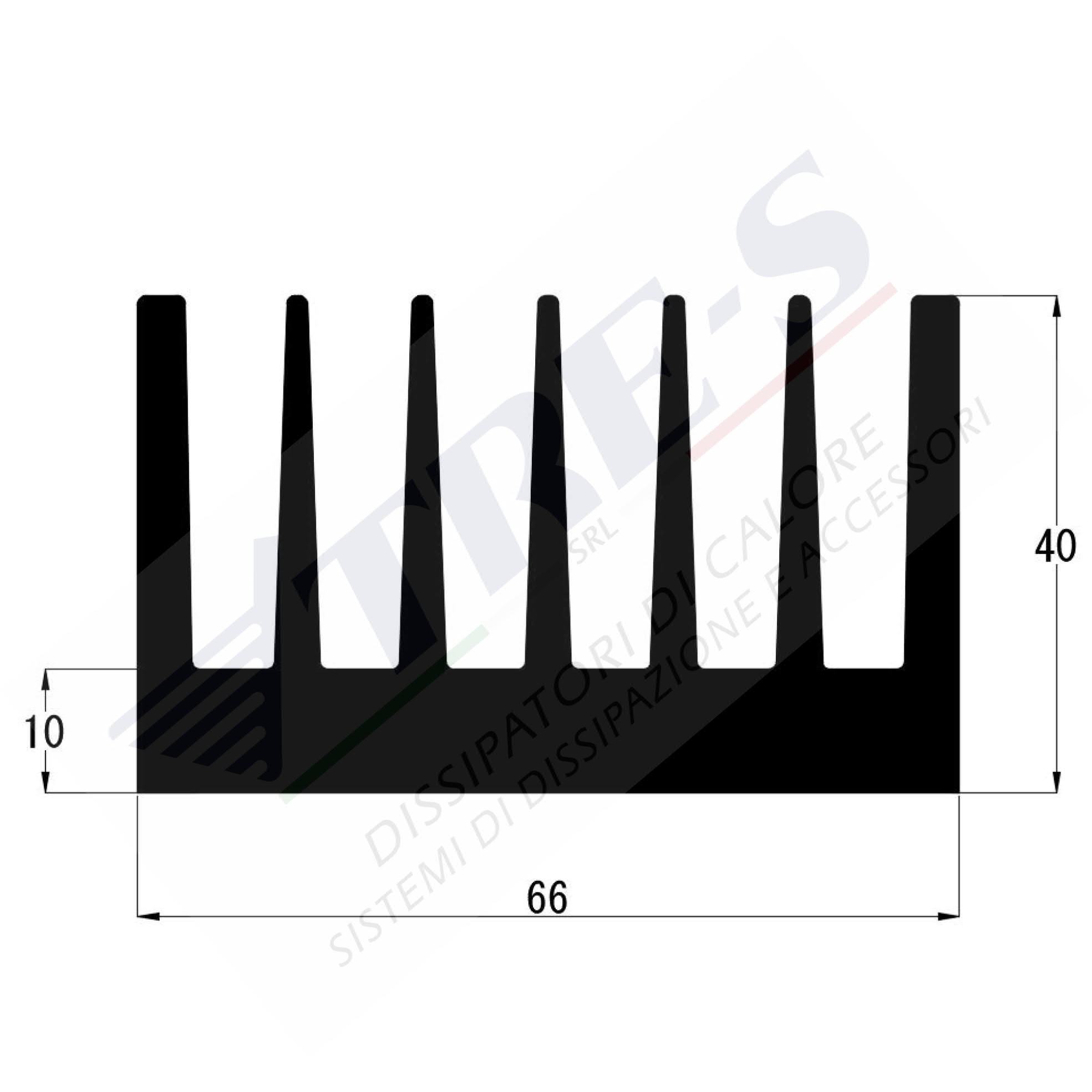

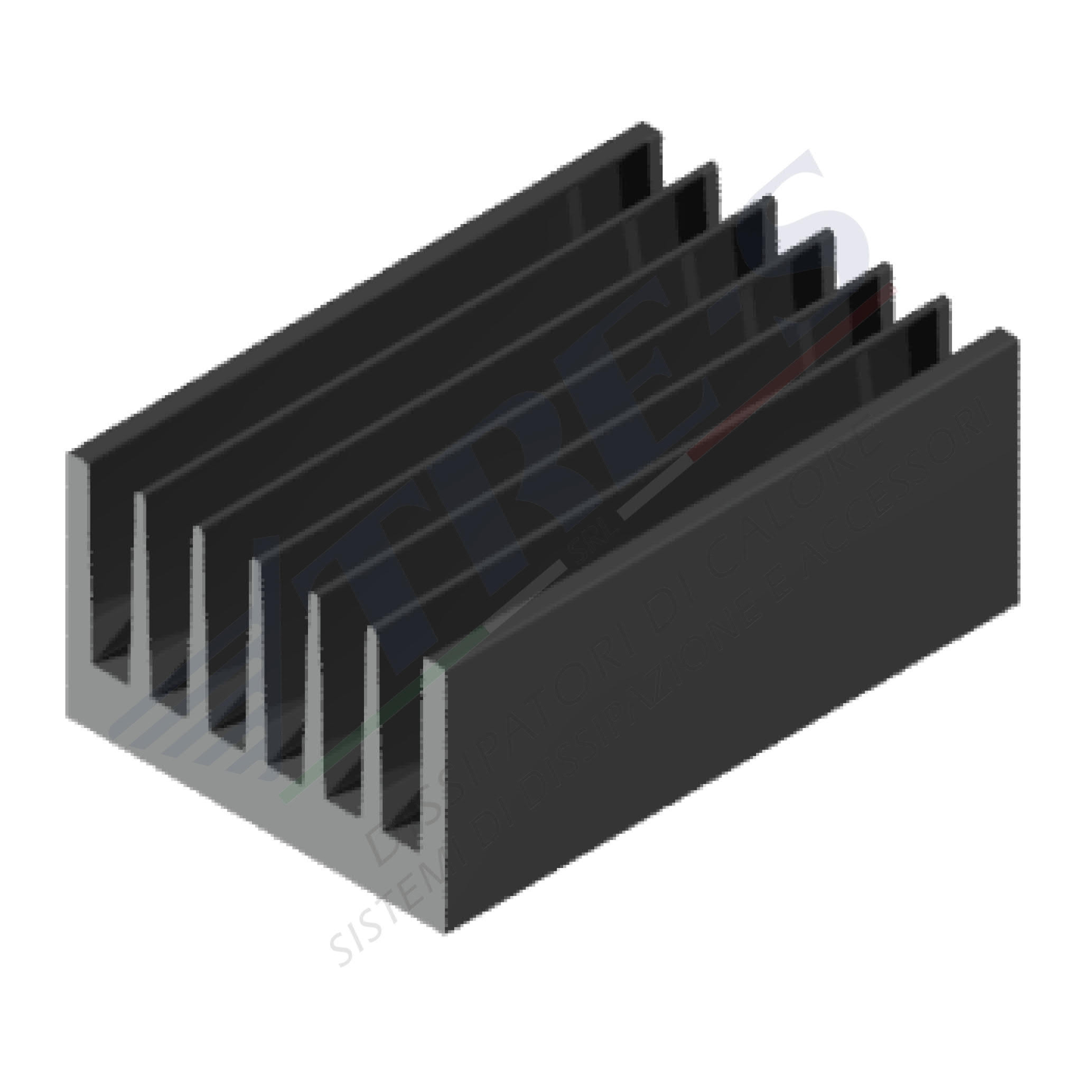

PRO1075
Dissipatori per moduli di potenza


Mechanical characteristics:

Height: 40.00 mm

Width: 66.00 mm

Weight: 3.47 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.592

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 1.74

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

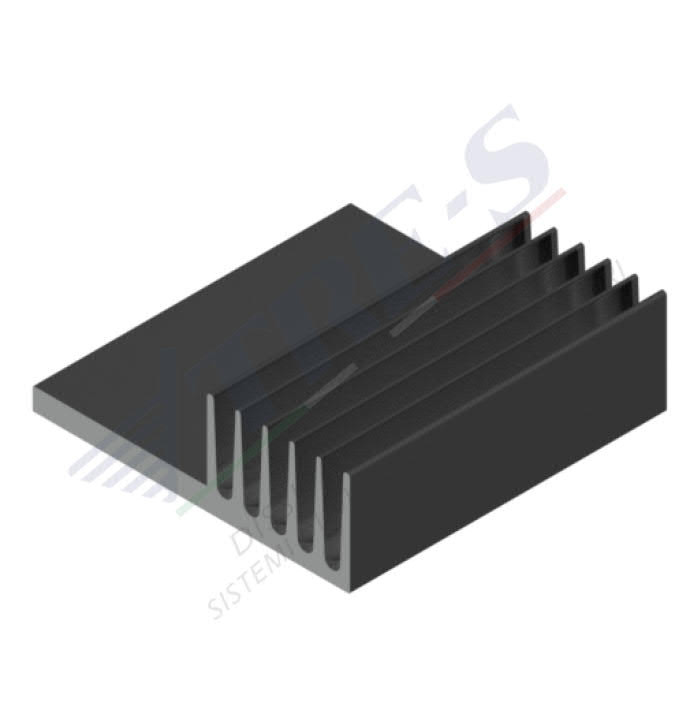

PRO1022
Dissipatori per moduli di potenza


Mechanical characteristics:

Height: 26.00 mm

Width: 80.00 mm

Weight: 1.79 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

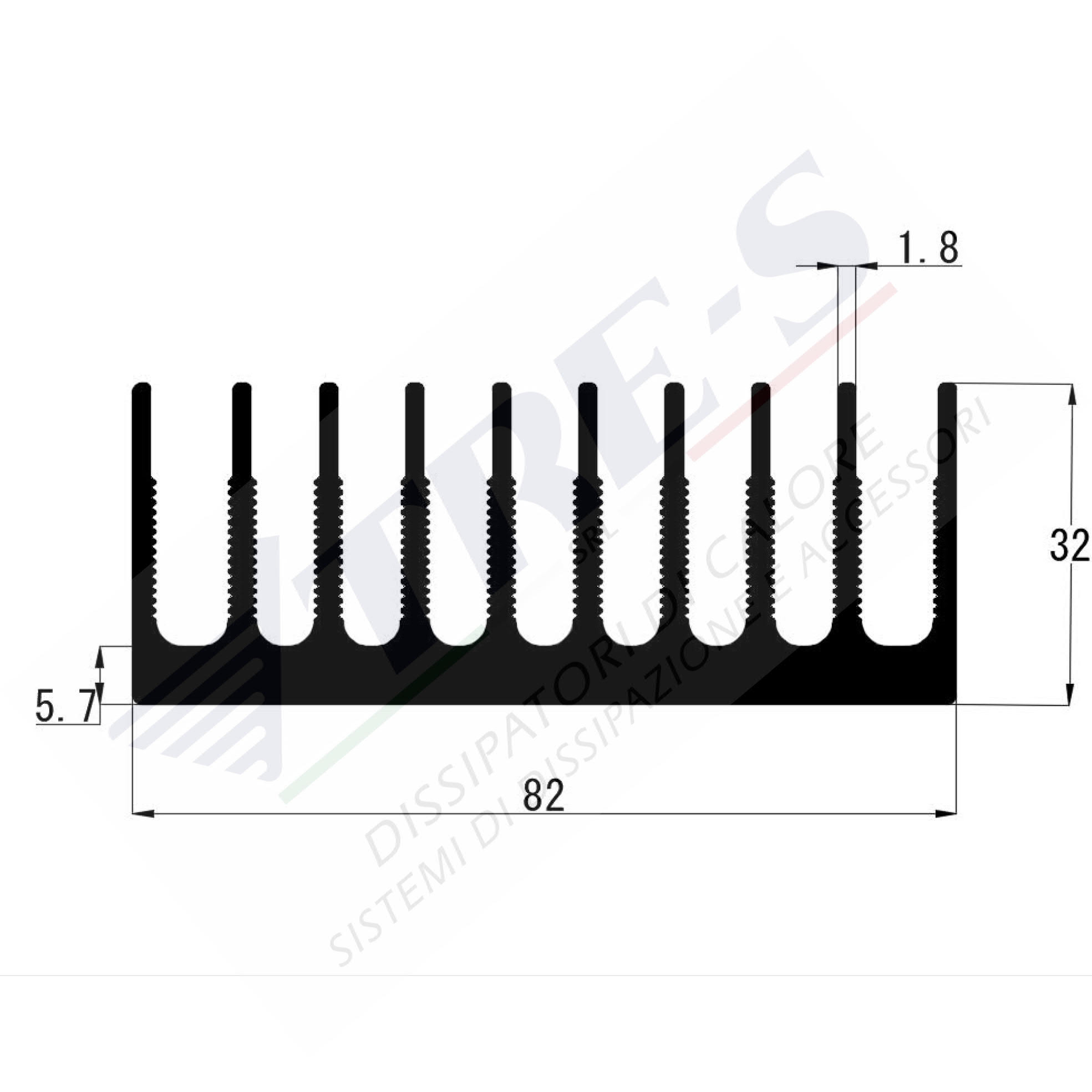

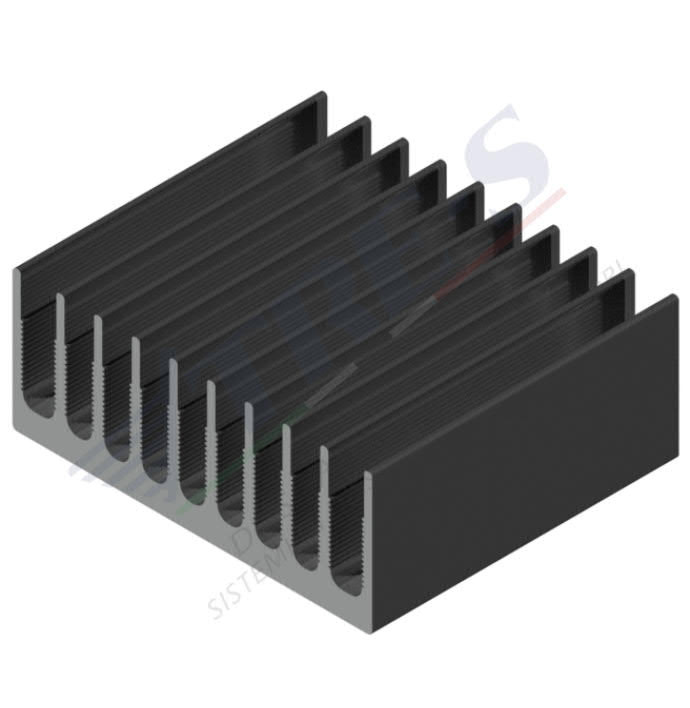

PRO1032
Dissipatori per moduli di potenza


Mechanical characteristics:

Height: 32.00 mm

Width: 82.00 mm

Weight: 2.87 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.516

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 3.00m/s

Natural ventilation:

Rt 1.52

Sample length: 100.00mm

Applied power: 0.00W

Base
Assembled
Plug

PRO1076
Dissipatori per moduli di potenza


Mechanical characteristics:

Height: 69.00 mm

Width: 82.01 mm

Weight: 4.95 kg/m

Weight A: 0.00 kg/m

Weight B: 0.00 kg/m


Quotation request

Forced ventilation:

Rt: 0.00

Sample length: 100.00mm

Applied power: 0.00W

Vel. Fan: 0.00m/s

Natural ventilation:

Rt 0.00

Sample length: 100.00mm

Applied power: 0.00W
